SYT-RI-100-120

Humanoid Robot Joint Module (Rotary Actuator) Structure – Core Components

Output Flange / Connector – Connects to robot links (e.g., lower leg, forearm), outputs torque and motion.

Torque Sensor (optional but common in high-performance designs) – Ring or spoke type, used for force control / collision detection.

Harmonic Drive – Consists of a wave generator, flexspline, and circular spline; mounted on the motor output shaft.

Frameless Torque Motor – Stator fixed to the housing, rotor connected to the wave generator.

Brake (Safety Holding Brake) – Locks the joint position when power is lost.

Dual Encoders – Motor-side encoder (measures speed/position) and output-side encoder (eliminates reducer backlash error); commonly used for full closed-loop control.

Driver (Servo Drive Board) – Integrated inside the module or in a compact package.

Housing / Cooling Structure – Aluminum alloy body with cable channels.

Customization Services:Waterproof and anti-corrosion customization available for deep-sea operation, with an IP68 protection rating.

Drawing without brake

without brake Parameter Table

Parameter	Unit	Ratio 51	Ratio 81	Ratio 101	Ratio 121	Ratio 161
Gear Ratio	-	51	81	101	121	161
Peak Torque	N·m	267	376	411	436	459
Max Allowable Torque At Average Load (Robot Application)	N·m	133	206	267	267	267
Rated Torque @ 2000RPM (Industrial Application)	N·m	94	146	169	169	169
Peak Output Speed	RPM	55	37	29	24	18
Rated Speed (With 1/2 Rated Torque)	RPM	44	29	22	18	12
Gear Backlash	arcsec	20	20	10	10	10
Rated Power	W	1000	1000	1000	1000	1000
Supply Voltage	V	24–48	24–48	24–48	24–48	24–48
Max Continuous Current	A	20.2	20.2	20.2	20.2	20.2
Rated Current	A	15.8	15.8	15.8	15.8	15.8
Torque Constant	N·m/A	0.175	0.175	0.175	0.175	0.175
Encoder Resolution	bit	16	16	16	16	16
Communication Bus	-	CAN	CAN	CAN	CAN	CAN
Hollow Shaft Diameter	mm	32	32	32	32	32
Total Length	mm	100.5±0.5	100.5±0.5	100.5±0.5	100.5±0.5	100.5±0.5
Mass	kg	2.52	2.52	2.52	2.52	2.52
Rotational Inertia	g·cm²	3910.2	3910.2	3910.2	3910.2	3910.2

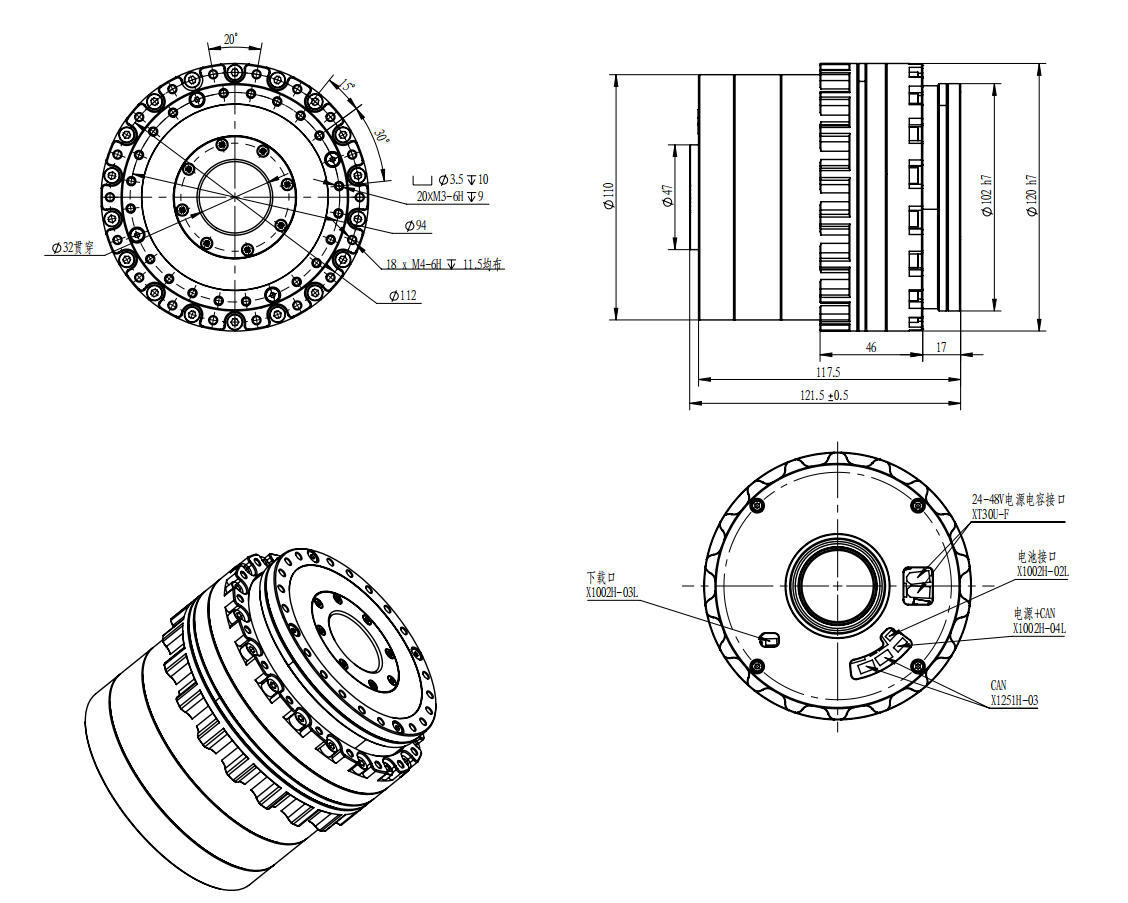

Drawing with brake

With brake Parameter Table

Parameter	Unit	Ratio 51	Ratio 81	Ratio 101	Ratio 121	Ratio 161
Gear Ratio	-	51	81	101	121	161
Peak Torque	N·m	267	376	411	436	459
Max Allowable Torque At Average Load (Robot Application)	N·m	133	206	267	267	267
Rated Torque @ 2000RPM (Industrial Application)	N·m	94	146	169	169	169
Peak Output Speed	RPM	55	37	29	24	18
Rated Speed (With 1/2 Rated Torque)	RPM	44	29	22	18	12
Gear Backlash	arcsec	20	20	10	10	10
Rated Power	W	1000	1000	1000	1000	1000
Supply Voltage	V	24–48	24–48	24–48	24–48	24–48
Max Continuous Current	A	20.2	20.2	20.2	20.2	20.2
Rated Current	A	15.8	15.8	15.8	15.8	15.8
Torque Constant	N·m/A	0.175	0.175	0.175	0.175	0.175
Encoder Resolution	bit	16	16	16	16	16
Communication Bus	-	CAN	CAN	CAN	CAN	CAN
Hollow Shaft Diameter	mm	32	32	32	32	32
Total Length	mm	121.5±0.5	121.5±0.5	121.5±0.5	121.5±0.5	121.5±0.5
Mass	kg	3.21	3.21	3.21	3.21	3.21
Rotational Inertia	g·cm²	4744.7	4744.7	4744.7	4744.7	4744.7

SYT-RI-100-120

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen Seninter Precision Machinery Co.,Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Harmonic Drive Rotary Actuator
Model Number:	SYT-RI-80-110 CAN
Length:	100.5mm
Protocol:	CAN/EtherCAT
Voltage:	24-48VDC
Brand Name:	SENINTER
OD:	120mm
Place of Origin:	CHINA
Max. Speed:	55RPM
Weight:	2.52kg
Certification:	CE ROHS
Max. Torque:	459N·m
