Lightweight Mobile Vehicle Barrier with Rubber Plate Friction
The HITOMARUKUN is a lightweight, movable anti-collision barrier
designed to non-lethally stop invading vehicles. It is primarily
used in urban road sections and municipal road isolation areas
where vehicles travel at low speeds. This device effectively
controls vehicle access to restricted and work areas, forcing
vehicles to stop within a safe distance upon impact to protect
construction site personnel.
Constructed from environmentally friendly aluminum profiles that
are fully recyclable, this product prevents secondary disasters in
case of vehicle impact-induced fires due to its non-flammable
properties. The barrier can be equipped with our proprietary grid
cold light film arrow logos for enhanced visibility and easy
operation.
Product Specifications
| Item | Parameter/Description |
|---|
| Product Name | Simple Parking Stop Device / Lightweight Mobile Barrier |
| Product Model | RMHs Lightweight Mobile Crash Barrier |
| Brand | RMHs |
| Main Material | High-quality Aluminum Profile, High-friction Non-slip Rubber Pads |
| Product Weight | 13.4 kg |
| Dimensions | 1400 * 530 * 230 mm (Unfolded/Deployed) |
| Folded Thickness | Approx. 200 mm |
| Main Color | Engineering Yellow / Orange Yellow |
| Surface Finish | Electrostatic Spray Coating (UV Resistant, Anti-corrosion) |
| Manufacturing Process | Bending and Welding |
| Product Structure | Foldable Design |
| Bottom Configuration | 4 High-friction Non-slip Rubber Pads |
| Top Configuration | Standardized Mounting Position (Compatible with LED Arrow Guide
Signs) |
| Compatible Accessories | Perfectly Compatible with RMHs Series Safety Arrow Guide Signs |
| Core Functions | Vehicle Braking + Physical Barrier + Visual Warning |
| Stopping Principle | Lever Lifts Front Wheels + Energy-absorbing Structure Distributes
Impact + Rubber Pads Provide Powerful Braking |
| Application Scenarios | Residential Area Internal Road Construction, Temporary Municipal
Road Isolation, Warning Zones, Roadwork Sites |
| Product Advantages | Lightweight & Portable, Foldable for Storage, Quick Deployment,
Strong Weather Resistance, Multi-functional Integration |
| Packaging | Customized According to Shipping Requirements |
Parking Principle
When a vehicle impacts the device, the front wheels are lifted
using lever principles. The impact force is transmitted to the
ground while the high-friction rubber pads at the bottom create
substantial ground resistance, effectively stopping the vehicle
within a controlled distance.
Product Advantages
- Lightweight design for easy carrying and modular roadblock
deployment
- Foldable construction saves storage space - fits in vehicle trunks
for immediate availability
- Yellow electrostatic spraying provides fade and rust resistance
suitable for outdoor conditions
- Four specialized anti-skid rubber pads enhance ground friction for
maximum stopping power
Product Advantage Comparison
| Comparison Dimension | RMHs Simple Parking Stop Device | Large Fixed Parking Devices | Traditional Simple Devices |
|---|
| Product Weight | Lightweight (13.4kg) | Heavy (Hundreds of kg to Several Tons) | Lightweight (Several kg) |
| Portability | ⭐⭐⭐ Excellent: Foldable, one-person carry, fits in car trunk | ❌ Poor: Requires forklift/crane for transport | ⭐⭐ Average: Light but bulky, easily blown over |
| Deployment Speed | Fast: One person can deploy or store within 1 minute | Slow: Requires construction machinery for installation | Fast: Simply place on site |
| Protection Capability | Physical Braking: Effectively blocks vehicles, smooth stopping | Rigid Blocking: Can stop vehicles but easily causes severe damage | Warning Only: No actual blocking capability |
| Storage Footprint | Minimal: Foldable and stackable | Permanent Occupancy: Cannot be moved or stored | Relatively Large: Stackable but takes up space when many are stored |
| Application Scenarios | Temporary work zones, mobile construction, quick response | Long-term fixed work areas, permanent isolation | Simple warning areas, temporary marking |
| Weather Resistance | Excellent: Electrostatic sprayed aluminum, sun and rust resistant | Average/Good: Concrete durable, plastic prone to aging | Poor: Plastic prone to aging and brittleness |
| Multi-functionality | Can add LED arrow signs, warning + protection integrated | Single function, barrier only | Single function, warning only |
| Cost Effectiveness | One-time investment, reusable, flexible deployment | High one-time cost, expensive installation and removal | Low unit cost but easily damaged, requires frequent replacement |
Product Buying Guide
Three Steps to Help You Decide Quickly
Step 1: Assess Your Needs - Do You Really Need Physical Protection?
| Scenario | Recommended Choice | Reason |
|---|
| Residential area road construction | ✅ RMHs Simple Parking Stop Device | Risk of vehicles entering by mistake, needs physical barrier |
| Municipal road temporary work | ✅ RMHs Simple Parking Stop Device | Complex traffic flow, needs both warning and real protection |
| Simple warning areas | ❌ Ordinary cones are sufficient | Only reminder needed, no risk of vehicle intrusion |
| Long-term fixed work areas | ❌ Fixed concrete barriers | No need to move,追求 maximum durability |
Bottom line: Where there's a risk of vehicles entering by mistake, this is the
product to use.
Step 2: Consider Portability - Who Moves It? Where to Store?
Ask yourself three questions:
- Do you frequently change work locations? -> Yes
- Are there only 1-2 people working? -> Yes
- Do you drive an ordinary car to the site? -> Yes
If you answer "Yes" to even one, this product is right for you.
Why?
- Weighs only 13.4kg, one person can move it
- Foldable, fits in a car trunk
- Takes 1 minute to deploy or store
Step 3: Check Configuration - What Accessories Are Needed?
| Configuration Option | Applicable Scenarios | Recommendation |
|---|
| Single unit only | Daytime work, good visibility | Basic model, yellow color is markedness enough |
| Unit + LED arrow sign | Night construction, low light conditions | ⭐ Highly recommended, 24/7 safety |
| Multiple units combined | Long-distance isolation, large work areas | Modular splicing, flexible adaptation |
Frequently Asked Questions
Q1: How much does this product weigh? Can one person move it?
A: 13.4kg, one person can easily move it. It's also foldable and
fits in a car trunk when stored.
Q2: What's the difference between this and ordinary plastic cones?
A: Plastic cones only provide warnings--vehicles can drive straight
through them. This product offers physical braking--when a vehicle hits it, it stops smoothly, truly protecting
personnel behind it.
Q3: Will it rust quickly if left outdoors in sun and rain?
A: The main body is made of high-quality aluminum profile with
electrostatic spraying finish. It's UV resistant and
anti-corrosion, won't fade or rust easily with long-term outdoor
use.
Q4: How does it stop a vehicle upon impact?
A: Three mechanisms work together:
- Front wheels lift off the ground, cutting off power
- The aluminum energy-absorbing structure distributes impact force
- High-friction rubber pads at the bottom grip the ground, preventing
displacement

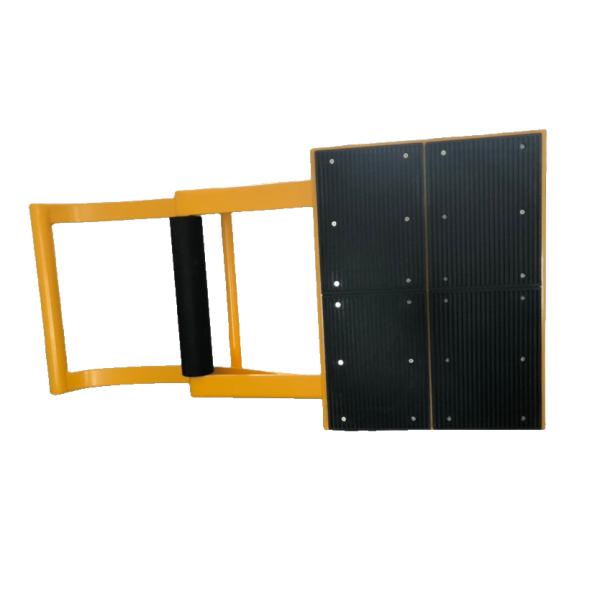

Q5: What's the function of the rubber pads on the bottom?
A: They are high-friction non-slip rubber pads that provide ground grip--when a vehicle hits the device, it won't slide away, ensuring
effective braking.
Q6: Can it be used at night? Is it visible?
A: An LED arrow guide sign can be mounted on top. It's highly
visible in yellow during the day, and the light warns at
night--usable 24/7.
Q7: Where is it mainly used?
A: Residential area road construction, temporary municipal road
isolation, warning zones--any scenario requiring quick deployment
and physical protection.
Q8: Can multiple units be used together?
A: Yes. They support flexible combination to form modular barrier
systems, adapting to different length requirements for isolation.
Q9: How thick is it when folded?
A: About 200mm, roughly the thickness of a suitcase, easy to store.
Q10: How do I use it after purchase? Does it need installation?
A: No installation needed. Just take it out of the trunk, unfold
it, and it's ready to use in 1 minute. Fold it back up when done.
