| Categories | Roof Roll Forming Machine |
|---|---|
| Brand Name: | CANGZHOU FMS |
| Model Number: | Met Tile / Glazed Tile |
| Certification: | ISO CE |
| Place of Origin: | CHINA MAINLAND |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 20 Sets Per Month |
| Delivery Time: | 35 Working Days |
| Packaging Details: | 40' FLC |
| Tile Type: | Colored Steel |
| Product Name: | Corrugated Roll Forming Machine Full Automatic PLC Control |
| Motor power: | 4Kw |
| Thickness: | 0.3-0.8mm |
| Key Selling Points: | Long Service Life |
| Working speed: | 2-5m/min |
| Voltage: | 380V 50HZ 3 Phase or Other |
| Feeding width: | 1000mm |
| Company Info. |
| Cangzhou Famous International Trading Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

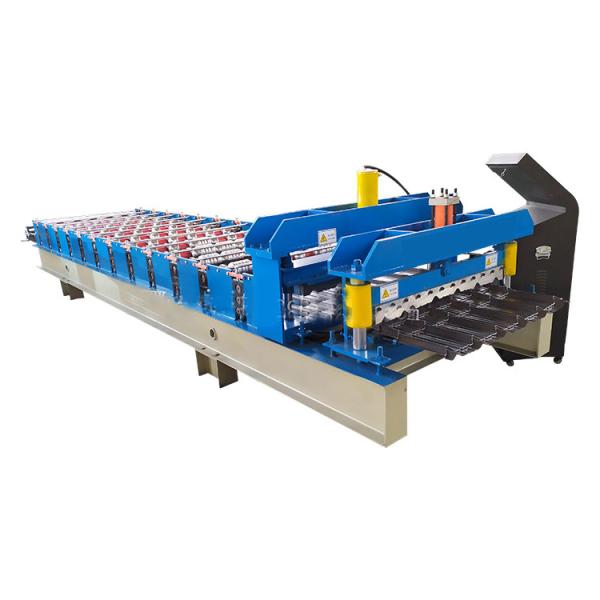

Corrugated Roll Forming Machine Full Automatic PLC Control
Compared with the IBR roof roll forming machine , it has a hydraulic press part which is used to make the metropole type . For this Roof And Wall Panel Roll Forming Machine , there is a front cutting .
When you want to change the coil , you can cut it directly by the front cutting . To imporve the quality of the machine , we have updated many details of the machine , for example the oil tube .
Metal glazed tile is a new kind of building materials, the archaist sheet for roofing, like the wood one and clay one.The metal glazed tile roof sheet is more easy to install and using life time is more longer.With the market demand, the metal glazed tile roofing sheet is getting more popular.
Specification
| 1 | Type | Colored steel plate, galvanized steel, aluminum plate ect | |
| 2 | Feeding width | 1000mm | |
| 3 | Roller station | 18 Stations | |
| 4 | Control System | PLC& transducer | |
| 5 | Main Power | About 5.5KW | |
| 6 | Roller stations | 18 stations | |
| 7 | Shaft material | 45# Steel , Heat treatment , Polishing | |
| 8 | Frame | 300mm H Steel | |
1. Guaranteed against malfunctions due to manufacturing defects
for1 years after date of purchase except Electrical parts.Guarantee
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
|
