Diamond Wire Saw Stone Profiling Cutting Machine 11kw

Categories Diamond Wire Saw Machine
Certification: API
Max Processing Size: 3000*3000*1500mm
Wire Diameter: 0.6-1.8mm
Wire Length: 10m
Water Consumption: 4m3/H
Control Type: CNC
Cutting Length: 20-60m
Diameter: 8.5mm to 11.5mm
Cutting Precision: High
Spindle: 15KW
Trolley Size: 1400*2500mm
Adjustment Distance: 450mm
Control System: PLC SYSTEM
Rated Power: 2.2kw
Model NO.: CNC-3000
Control: CNC
Dimension of Worktable: 2500*1300mm
Main Motor: 7.5kw
Gross Motor: 11kw
Outline Dimension: 7500*6300*3800mm
Gross Weight: 6000kg
Advantage: Multi Function with Good Quality and Price
Key Words: Stone Machine
Warranty Time: One Year
Transport Package: Plastic Package, Suitable for Sea Transportation
Specification: 6500*6300*3800mm
Trademark: UNIQUE
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Type: CNC Cutting Machine
Usage: Granite
Application: Machinery & Hardware
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Customization: Available | Customized Request
Brand Name: Xianda Machinery
Model Number: CNC-3000
Place of Origin: Jinjiang, Fujian, China
MOQ: 1
Price: To Be Negotiable
Payment Terms: L/C, D/A, D/P, T/T, ,
Packaging Details: Load in a 20 Feet Container
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Diamond Wire Saw Stone Profiling Cutting Machine 11kw

Diamond Wire Saw Stone Profiling Cutting Machine 11kw
Product Specifications
Model NO.
CNC-3000
Control
CNC
Max Processing Size
3000*3000*1500mm
Dimension of Worktable
2500*1300mm
Main Motor
7.5kw
Gross Motor
11kw
Outline Dimension
7500*6300*3800mm
Gross Weight
6000kg
Water Consumption
4m3/H
Warranty Time
One Year
Source Voltage
380V
Automation
Automatic
Wire Diameter
0.6-1.8mm
Wire Length
10m
Control System
PLC SYSTEM
Product Description

The CNC-3000 Diamond Wire Saw Stone Profiling Cutting Machine features four-axis linkage for processing circular stone slabs, roman columns, numerals, letters, Chinese characters, and other designed shapes.

Key Features
  • Heavy load bearing structure with four orbits on each upright column for balance adjustment and higher precision
  • Synchronized lifting of left and right frame with increased accuracy through lead screw and double nuts combination
  • CNC-controlled guide wheel system for precise diamond wire rope cutting direction
  • Worktable operates via lead screw and railway system
  • Automatic wire break alarm system
  • 1600mm aluminum wheel diameter with oil pump controlled rope tension
Technical Parameters
ParameterUnitCNC-2000CNC-2500CNC-3000
Max processing sizemm3000*2000*15003000*2500*15003000*3000*1500
Dimension of worktablemm2500*13002500*13002500*1300
Main motorkw7.57.57.5
Gross motorkw111111
Outline dimensionmm6500*6300*38007000*6300*38007500*6300*3800
Gross weightkg500055006000
Water consumptionm3/h444

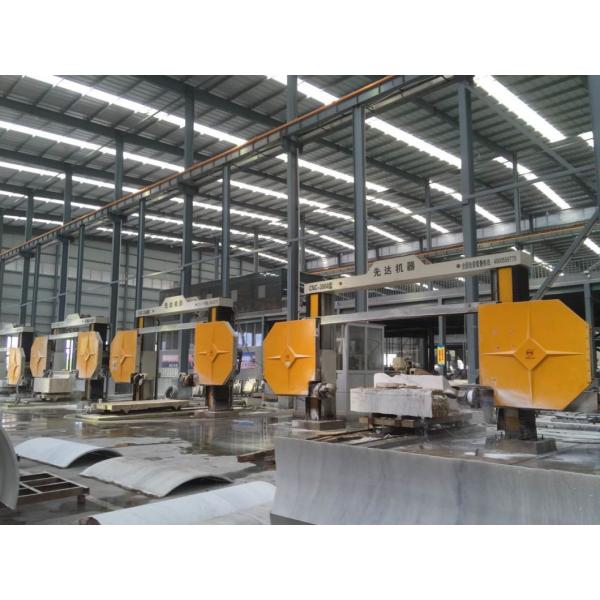

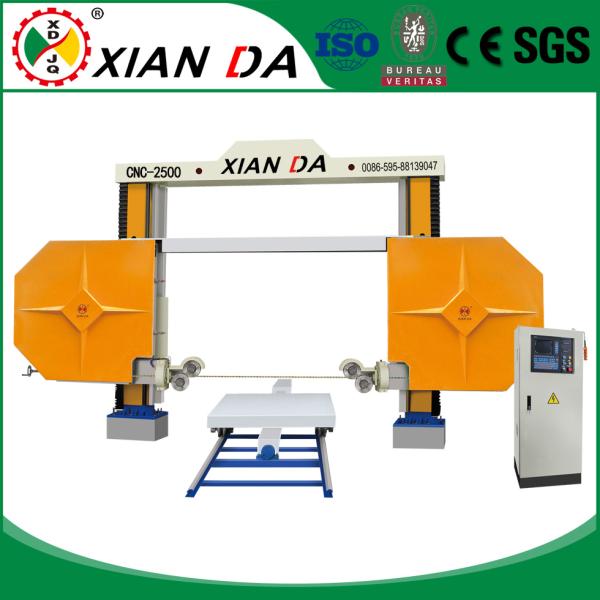

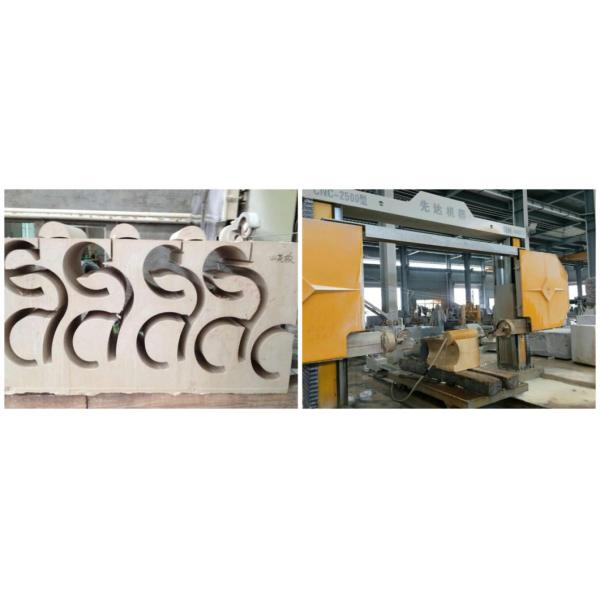

CNC-3000 Diamond Wire Saw Stone Profiling Cutting Machine in operation Close-up view of CNC-3000 Diamond Wire Saw cutting mechanism Side view of CNC-3000 Diamond Wire Saw machine
About Xianda Machinery
Xianda Machinery company logo

Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and has been dedicated to the development and production of column making machines, wire saw stone cutting machines, block trimming machines, bridge saw cutting machines, and profiling stone cutting machines.

With ISO9001 certification and CE compliance, we maintain "Advanced Technology and High Quality" as our aim, developing a range of 'Xianda' Brand special stone shape processing machines.

Our Services
Xianda Machinery service team
  • Training for machine installation and operation
  • Engineers available for overseas machinery service
  • 24-hour online after-sales service
Frequently Asked Questions
Does this product support customization?
Yes, this machine is available with customization options to meet specific requirements.
How do you ship the products?
Products are packaged in plastic suitable for sea transportation and shipped worldwide.
What is the warranty for the product?
This product comes with a one-year warranty from the date of purchase.
