3A Ball Srew Linear Stepper Motor 2000mN.M 57x57x76mm

Categories Lead Screw Stepper Motor
Brand Name: Casun
Model Number: 57SHD4816-150GHH
Certification: CE,ROHS,ISO
Place of Origin: CHINA
MOQ: 1PC
Price: $100-$102
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Delivery Time: 7-15 days
Packaging Details: Carton:38x29xc14m
Color: black
current: 3A
Holding torque: 2000mN.m
Customized: The motor can be designed &manufactured with customized request.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

3A Ball Srew Linear Stepper Motor 2000mN.M 57x57x76mm

3A Ball Screw Linear Stepper Motor 2000mN.M 57x57x76mm
Nema 23 External Ball Screw Linear Stepper Motor 2000mNm 3.0A 76mm 12mm Diameter Lead Length 150mm For 3D printing and CNC applications. The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.
Key Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction
  • Available in single or double shaft versions
  • CE and RoHS approved
  • Customizations on request
Dimensions

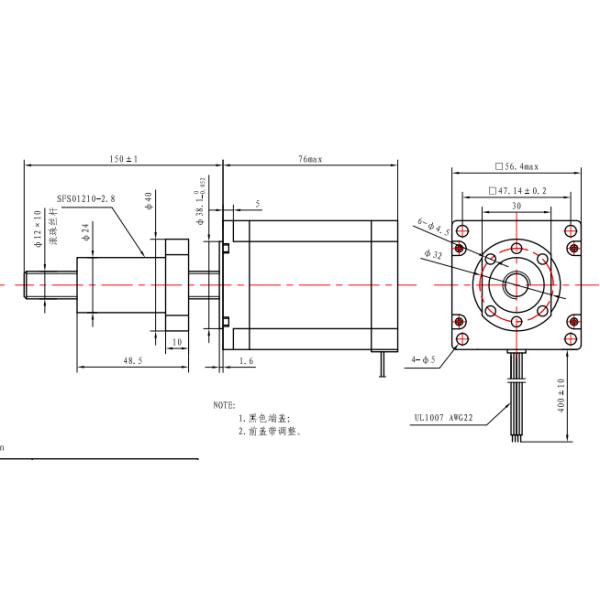

3A Ball Screw Linear Stepper Motor dimensional diagram
Motor Specifications
Step Angle1.8°
Frame Size57mm
Number of Phase2 Phase
Rated Current3A
Holding Torque2000 mN.m
Resistance0.95 ohm
Inductance3.6 mH
Rotor Inertia460 g-cm²
Motor Weight1.4 kg
Lead ScrewSPS01210-2.8
ConnectionBipolar
Operating Specifications
Step Angle1.8°
Maximum Temperature80°C maximum
Ambient Temperature-20°C to 50°C
Storage Temperature-20°C to 100°C
Humidity Range85% or less, non-condensing
Magnet Wire InsulationClass B 130°C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min
Shaft Radial Play0.02 Max. (450g-load)
Shaft Axial Play0.08 Max. (450g-load)
Max. Radial Force28N (20mm from the flange)
Max. Axial Force10N
Available Models
ModelHolding TorqueStep AngleMotor LengthType of ShaftRated Current
42SHD49500.13 N.m1.8°20mmD Shaft-20mm1.0A
42SHD40030.26 N.m1.8°34mmD Shaft-20mm0.4A
42SHD02610.45 N.m1.8°40mmD Shaft-20mm1.68A
42SHD44250.59 N.m1.8°48mmD Shaft-24mm2.0A
42SHD48130.8 N.m1.8°60mmD Shaft-24mm2.1A
Custom Motor Solutions
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
Available Options
Encoder option for stepper motor Encoder
Brake option for stepper motor Brake
Gearbox option for stepper motor Gearbox
Shaft customization options for stepper motor Shaft
Please click the "Get a quote" button below to tell us your requirements.
