NEMA 14 Bipolar Stepper Motor Precision Structure 120mN.M

Categories Multilayer Motor
Brand Name: Casun
Model Number: E39C-09
Certification: CE,ROSH,ISO
Place of Origin: CHINA
MOQ: 1PC
Price: $18-$23
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Delivery Time: 7-15 days
Packaging Details: Carton:36x29x14cm
Step angel: 1.8°
Holding Torque: 120mN.m
Current: 0.4A
Motor Length: 43.6mm
Shaft: Round Shaft 24mm Length
Voltage: 12v
Customized: The motor can be designed &manufactured with customized request.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

NEMA 14 Bipolar Stepper Motor Precision Structure 120mN.M

NEMA 14 Bipolar Stepper Motor Precision Structure 120mN.M
Product Overview

NEMA 14 hybrid stepper motor measuring 39x39x43.6mm with 120mN.m holding torque. This multisport motor features precision engineering for reliable performance.

Key Specifications
  • Step angle: 1.8 degrees per step
  • Motor size: 39 x 39mm
  • Rated current: 0.4A
  • Holding torque: 120mN.m
  • Weight: 0.3kg
Movement Method
  • Output shaft A can rotate (controlled by port 2)
  • Output shaft B can rotate (controlled by port 1)
  • Both motion modes can run independently without interference
Detailed Motor Specifications
ParameterValue
Step Angle1.8°
Frame Size39mm
Number of Phase2 Phase
Rated Current0.4A
Holding Torque120mN.m
Resistance30ohm
Inductance45mH
Rotor Inertia20 g-cm²
Motor Weight0.3kg
Number of Leads4
ConnectionBipolar
Appearance & Dimensions

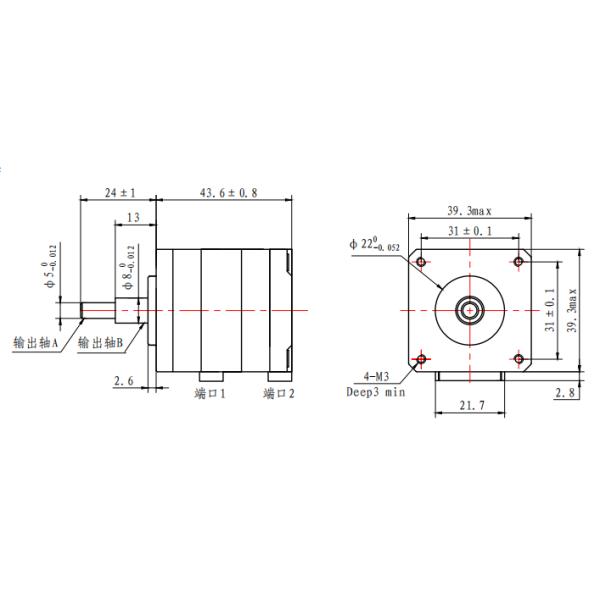

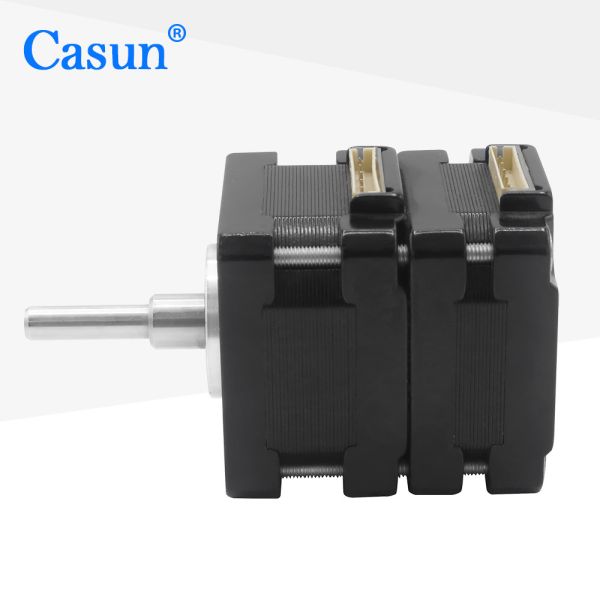

NEMA 14 Stepper Motor appearance and design NEMA 14 Stepper Motor dimensional drawing
Customization Options Available

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs.

Available Options
Encoder
Brake
Gearbox
Connector
