| Categories | Multilayer Motor |
|---|---|
| Brand Name: | Casun |
| Model Number: | S42-02 |
| Certification: | CE,ROHS,ISO |
| Place of Origin: | CHINA |
| MOQ: | 1PC |
| Price: | $11-$15 |
| Payment Terms: | D/A, T/T, L/C, D/P |
| Supply Ability: | 40000+PCS+Month |
| Delivery Time: | 7-15 days |
| Packaging Details: | Carton:36x29x14cm |
| Step angel: | 1.8° |
| Holding Torque: | 280mN.m |
| Current: | 0.4A |
| Motor Length: | 34mm |
| stroke: | 0~37 |
| Customized: | The motor can be designed &manufactured with customized request. |
| Company Info. |
| GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

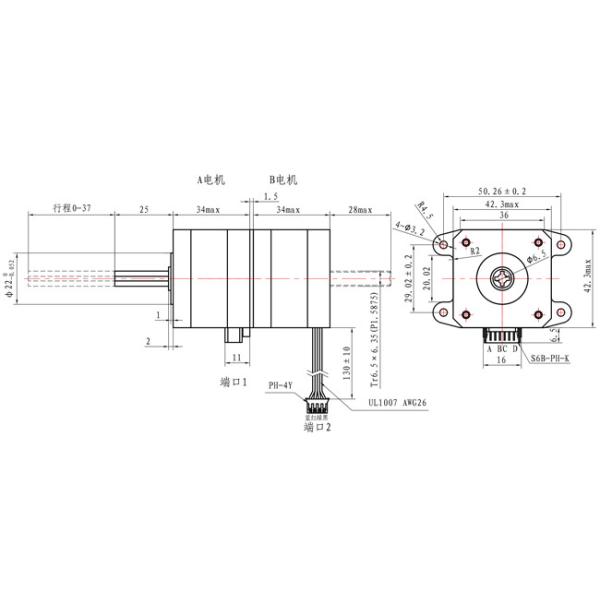

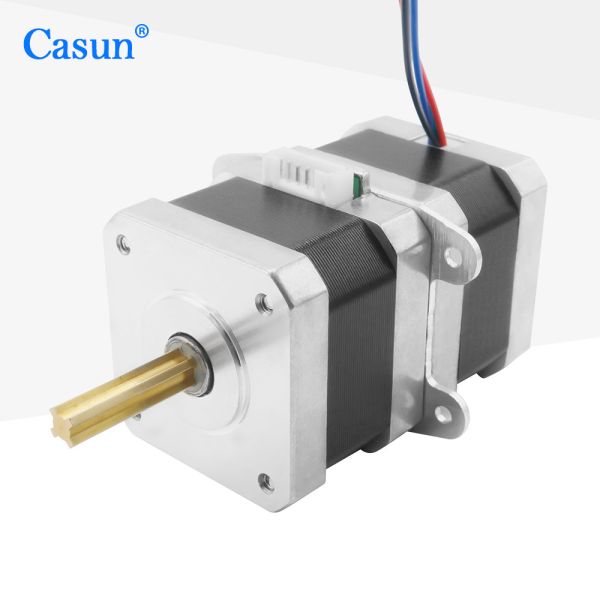

The NEMA 17 Double Layer Linear Stepper Motor operates at 12V and delivers exceptional precision positioning capabilities. This double-layer stepper motor achieves precise rotation and position control, making it ideal for automation control applications.
| Specification | Value |
|---|---|
| Step Angle | 1.8° |
| Frame Size | 42 mm |
| Number of Phase | 2 Phase |
| Rated Current | 0.4 A |
| Holding Torque | 280 mN.m |
| Resistance | 30 ohm |
| Inductance | 37 mH |
| Rotor Inertia | 38 g-cm² |
| Motor Weight | 0.4 kg |
| Number of Leads | 4 |
| Connection | Bipolar |
| Parameter | Specification |
|---|---|
| Step Angle | 1.8° |
| Maximum Temperature | 80°C maximum |
| Ambient Temperature | -20°C to 50°C |
| Storage Temperature | -20°C to 100°C |
| Humidity Range | 85% or less, non-condensing |
| Magnet Wire Insulation | Class B 130°C |
| Insulation Resistance | 100M Ohm at 500 VDC |
| Dielectric Strength | 500 VDC for 1 min |
| Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
|---|---|---|---|---|---|
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Please click the "Get a quote" button above to tell us your requirements.
|
