| Categories | LINK-PP Transceivers |
|---|---|
| Brand Name: | LINK-PP |
| Model Number: | LS-SM3110-10C |
| Certification: | UL,RoHS,REACH,ISO |
| Place of Origin: | GuangDong, China |
| MOQ: | 1pc,10pcs |
| Price: | $8.3-$12 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 5KK/Month |
| Delivery Time: | 2-3 Weeks |
| Packaging Details: | Reel |
| Part Number: | LS-SM3110-10C |
| Series: | 10GBASE-LR |
| Transmitter Type: | DFB |
| Receiver Type: | PIN |
| Operating Case Temperature: | 0 to +70° |
| Compatible Brands: | Cisco,H3C,Arista,D-Link |
| Distance: | ≤10km |
| Form Factor: | SFP+ |
| Type: | Single Mode |
| Data Rate: | 10G |
| Connector: | Duplex LC |
| Wavelength: | 1310nm |
| Company Info. |
| LINK-PP INT'L TECHNOLOGY CO., LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

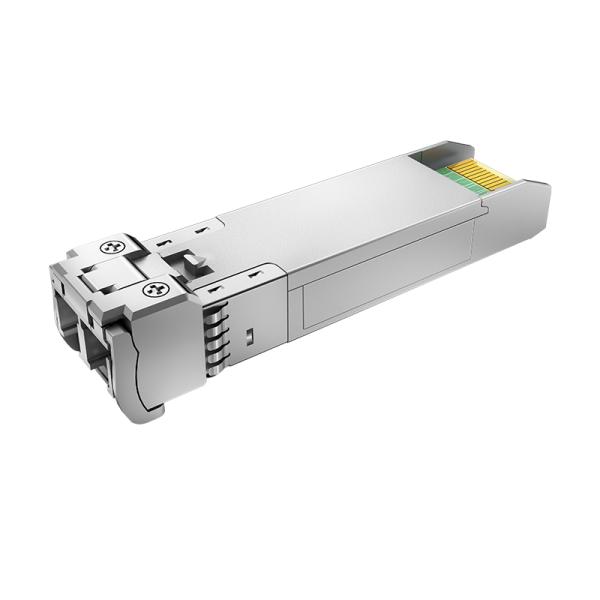

The LINK-PP LS-SM3110-10C SFP+ 10GBASE-LR Optical Transceiver Module is a high-performance, cost-effective solution for long-distance data transmission. Supporting data rates of up to 10Gbps and transmission distances of up to 10km over Single-Mode Fiber (SMF), this transceiver is ideal for various applications such as data centers, enterprise networks, service provider networks, and telecommunications. It features a 1310nm Distributed Feedback (DFB) laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit.
Key Features:
SMF Optical Transceiver Module | |
|---|---|
| Part Status | Active |
Compatible Brands | Cisco, Juniper, FS |
Distance | ≤10km |
Form Factor | SFP+ |
| Type | Single Mode |
Data Rate | 10G |
Connector | Duplex LC |
Wavelength | 1310nm |
| Receiver Sensitivity | <-14.4dBm |
TX Power | -6.5 to -0.5dBm |
| RX Power | -20 to -1dBm |
Commercial Temperature Range | 0 to 70°C |
Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
|
