Name: Overload Protection Function in VFD PLC Constant Pressure Water Supply Control Panel
Brand: Juchuan
Price: 3 USD

Product Details
Company Profile

Overload Protection Function in VFD PLC Constant Pressure Water Supply Control Panel

Product Description

Product Name	VFD PLC Constant Pressure Water Supply Control Panel	Brand	Juchuan
Model Number	JCK-004	Origin	Qingdao, China
Type	PLC HMI Control Cabinet/Panel	MOQ	1 Piece
Function	Start Stop, monitoring	Shell Protection Grade	IP55
Application	Water Treatment Industry, other industrial scenarios	Shell Material	Q235 Steel Plate
Feature	Overload Protection, Failure Shutdown	Size	2208060cm, customized
Voltage	AC220V	Color	RAL7035 White
Current	8~180A	Transport Package	Standard Export Wooden Box with Pallet
Output Frequency	50Hz	Warranty	12 months

VFD PLC Constant Pressure Water Supply Control Panel

Our water supply VFD control panel is an intelligent control device specifically tailored for water supply systems. Whether in residential areas, commercial buildings, or industrial factories, this panel ensures efficient and stable operation of the water supply system. Primarily, it regulates and controls water supply equipment, including water pumps, to maintain a consistent water pressure output.

Multiple Pump Working Modes: The panel supports the configuration of various pump working modes, allowing for the operation of up to five pumps (1 frequency + 4 frequency). Pressure Measurement Anti-shake Compensation Control: Equipped with a pressure measurement anti-shake compensation control function, ensuring accurate pressure readings and stable operation. Password Lock and Protection: Parameter adjustment and setting are secured with password lock and protection functions, enhancing security and preventing unauthorized access. Analog Output Control: The D/A transmission control frequency voltage ranges from DC 0-10V and can be set to current DC 4-20mA, providing flexibility in control options. Pressure Sensor Compensation: Includes a pressure sensor zero point and full-scale compensation function, ensuring precise pressure measurements and control. Timing Automatic Pump Priming: Features a timing automatic pump priming function, facilitating efficient pump operation and system performance. Automatic Water Shortage Detection and Protection: Incorporates an automatic water shortage detection and protection function, as well as an external input shutdown protection function, ensuring system safety and reliability. Control of Small Attached Pump: Capable of controlling small pumps attached to the water supply, with options to set the frequency conversion or power frequency mode for optimal operation.

Details Images

Box/Cabinet: GGD 2200*800 *600（H*W*D） Series, Customized PLC: Siemens S7-1200/1500 Series Circuit Breaker: Schneider Electric IC65N Series VFD: ABB ACS510 Series Switching Power Supply: Siemens PSU Series Host Computer: Advantech Industrial Computer IPC-610L Monitor: DELL 24 Inches Operating System: Windows 10 Professional SCADA: WellinTech King SCADA

VFD motherboard

Precise routing and clear wiring

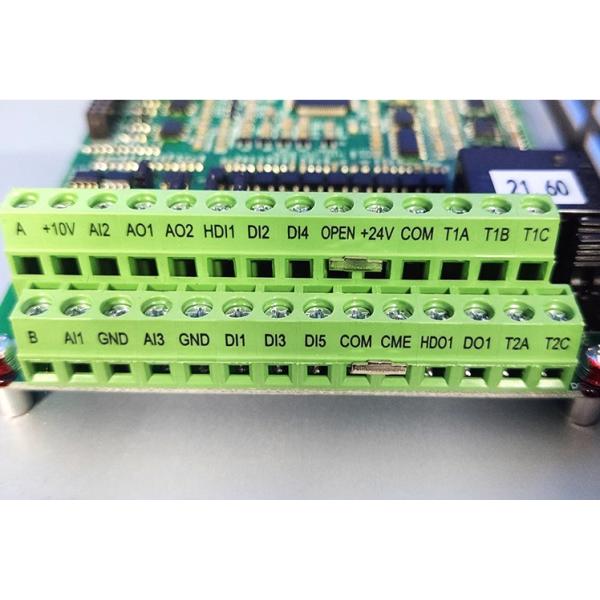

VFD full-function terminals

Intelligent Control Function

Equipped with an advanced frequency conversion controller, the panel automatically adjusts the operating frequency and speed of the water pump based on real-time water pressure requirements. This ensures stable system operation and maintains a constant water pressure output.

Multiple Process Modes

The control panel supports various process modes, including constant voltage adjustment, timing adjustment, and manual control. Users can select the appropriate mode according to their specific needs, allowing for flexible adjustments in operations.

Remote Monitoring and Control Function

Users can monitor the system's operating status in real-time via network connection or wireless communication. Additionally, they can remotely adjust parameters and control water pump operations, facilitating remote intelligent management.

Comprehensive Protection Functions

The control panel features multiple protection functions, such as over-current protection, over-voltage protection, under-voltage protection, and short-circuit protection. These functions effectively safeguard water pumps and equipment from damage and failure.

Humanized Operation Interface

With an intuitive and user-friendly operation interface, including an HMI and operation buttons, the panel enables convenient parameter setting, operation monitoring, and fault diagnosis.

Widely Used

It is used in many fields, such as water supply for urban residents, water supply in fire extinguishing, industrial water treatment, agricultural irrigation.

Why Choose Us

High Expandability

It offers high expandability by supporting the integration of various sensor interfaces into traditional water supply units. Additionally, it facilitates the expansion of interfaces for video security, water quality monitoring, pump room environment monitoring, energy consumption monitoring, and other equipment.

Data Transmission

The panel supports the transmission of all monitoring data to the monitoring center through wired or wireless methods. Furthermore, it can receive supervisory system control signals, enabling seamless communication and control.

Quality Assurance

Through stable cooperation with high-quality component industry leaders, the control panel utilizes components from reputable manufacturer brands. This ensures reliability, performance consistency, and longevity of the equipment.

Company Introduction

Qingdao Juchuan Environmental Protection Technology Co., Ltd., established in 2008, covering an area of 13250 square meters. We are a high-tech enterprise engaged in the research, development, design, manufacturing, sales, installation and after-sales service of chlorine dioxide generator, polymer dosing device, water plant control cabinet, sewage plant deodorization equipment, containerized water treatment plant, etc. Products are widely used in tap water, secondary water supply, swimming pool water and food processing water disinfection treatment, industrial, municipal, chemical, medical and hospital wastewater treatment.

Welcom to Juchuan!

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Striving hard to improve the quality of human life is the mission of Juchuan. We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together.

FAQ

1. Where is this control panel suitable for use? Our control panel is versatile, catering to various water supply systems such as those in residential areas, commercial buildings, and industrial plants, addressing the diverse water supply needs of different areas. 2. What are the main functions of this control panel? It features variable frequency speed regulation, constant pressure water supply, automatic start/stop of water pumps, fault alarm, and protection functions, enabling intelligent water supply control. 3. Does it support parallel operation of multiple pumps? Yes, our control cabinet supports parallel operation of multiple pumps, allowing flexible control of the number and operation mode of pumps according to actual requirements. 4. Does it have waterproof and dustproof functions? Yes, our control panel is designed to be waterproof and dustproof, meeting IP55 protection level standards, ensuring stable operation even in harsh environmental conditions. 5. Is it easy to install and operate? Designed for simplicity and user-friendliness, our control panel is equipped with a user-friendly operating interface and comes with detailed installation and operating instructions for easy setup and operation. 6. Do you provide technical support and after-sales service? We provide comprehensive technical support and after-sales service, including installation and commissioning, training, maintenance, and remote support, to ensure a satisfactory service experience for our customers. 7. What should be pay attention to when maintaining and maintaining the control panel? Detailed maintenance and maintenance guidelines are provided, covering regular cleaning, lubrication, and checking of electrical connections, to ensure stable operation and extend the service life of the control panel. 8. How much does the control panel cost? The price of the control panel varies depending on the model, configuration, and customization requirements. We offer specific quotes and customized programs tailored to meet the needs and budgets of our customers.
