| Categories | Galvanized Steel Grating |
|---|---|
| Brand Name: | Dimpled Hole Metal Sheets |
| Model Number: | Dimpled Hole Metal Sheets |
| Place of Origin: | China |
| MOQ: | 10pieces |
| Payment Terms: | 30%TT in advance, Balance before loading |
| Supply Ability: | 1000pieces |
| Delivery Time: | 15-18days |
| Packaging Details: | pallets |
| Chemical Composition: | Fe, C, Si, Mn, S, P |
| Alloy Or Not: | Non-Alloy |
| Project Solution Capability: | graphic design, 3D model design, total solution for projects |
| Application: | Villa |
| Surface Treatment: | Hot-DIP Galvanizing, Painting or Untreated |
| Grate length: | 1000mm |
| Grate width: | 800mm |
| Bearing bar width x thickness: | 25x3mm |

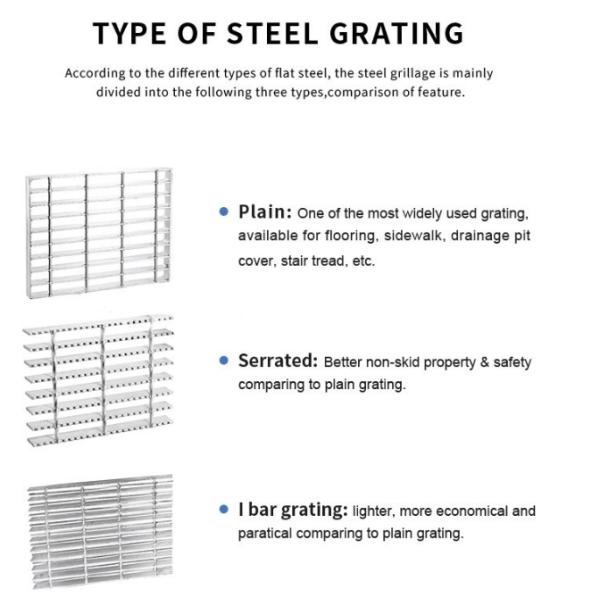

| Bearing bar shape: | Plain, Serrated I bar type Style Steel Grating |
| Cross bar shape: | round,twisted,bar shape |
| Mesh size: | 30x100mm |
| Email: | devin@industrialmetalmesh.com |
| whatsapp: | +8615369013183 |
| Company Info. |
| Hebei Qijie Wire Mesh MFG Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

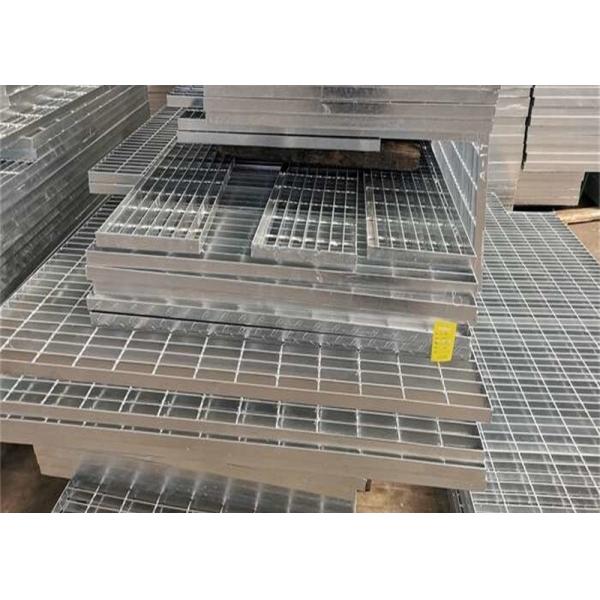

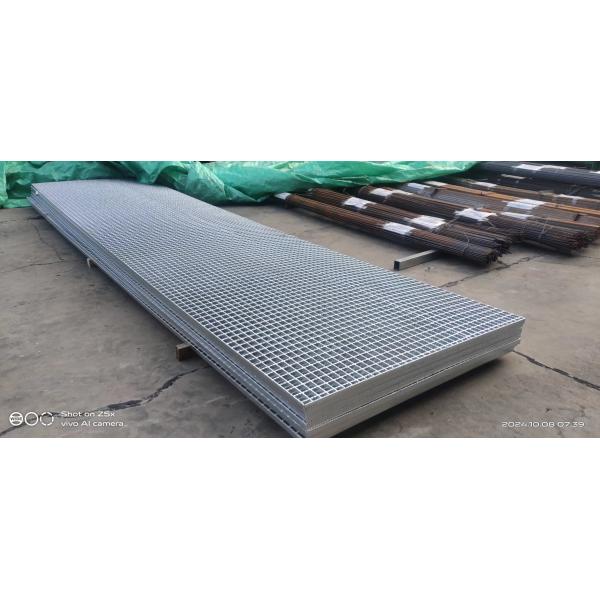

Hot Dipped Galvanized Plain/Serrated Steel Grating for Platform Walkway /Drain Trench Cover
Steel Grating
steel grating product with serrated bearing bar. Due to its scientific and
reasonable structure design, it is usually used in parts that
require high product bearing capacity or appearance. It is a steel
grating product manufactured from a certain size of serrated steel
through slotting (hole), inserting, welding, finishing and other
processes. It is a steel grating product with a large bearing
capacity and used for heavy bearing capacity. The industrial
platform has a large safety factor. Surface treatment can be
divided into galvanizing, painting and dipping.
Specification Steel Grating
| Product Name | Customized Anti-slip Serrated Steel Grating | ||
| Material | Mild Steel(Low Carbon Steel),S235,S275JR,A36,or Stainless Steel SS304,SS316 etc. | ||
| Surface treatment | Hot dipped galvanized, polished or untreated | Grate size | as customer's request |
| Bearing bar width x thickness | 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,...75x10mm | ||
| Bearing bar pitch | 12.5,15,20,23.85,25,30,30.16,30.3,34.3,35,40,41,60mm. US standard:1"x3/16",11/4"x3/16",11/2"x3/16",1"x 1/4", 11/4"×1/4",11/2"x 1/4"etc. | ||
| Cross bar pitch | 38,50,76,100,101.6mm or custom | ||
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar(widthxthickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar(widthxthickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
note: customized size is supported.
Application Steel Grating
It is widely used as flooring, catwalk, mezzanines/decking, stair
tread, fencing, ramp,dock, trench cover, drainage pit cover,
maintenance platform, pedestrian/crowded pedestrian in factories,
workshops, motor rooms,trolley channels, heavy loading areas,
boiler equipment and heavy equipment area etc.
|
