Wood Splitter Machine Branches Grinders Hammer Mill Manufacturer
Fruit Tree Cutting Machine
Introduction
Wood crusher, wood chipper, etc. It is a forestry processing
equipment that processes wood, branches, logs, straw and other
wooden materials into sawdust and sawdust. Widely used in power
plants, paper mills, charcoal production lines and other

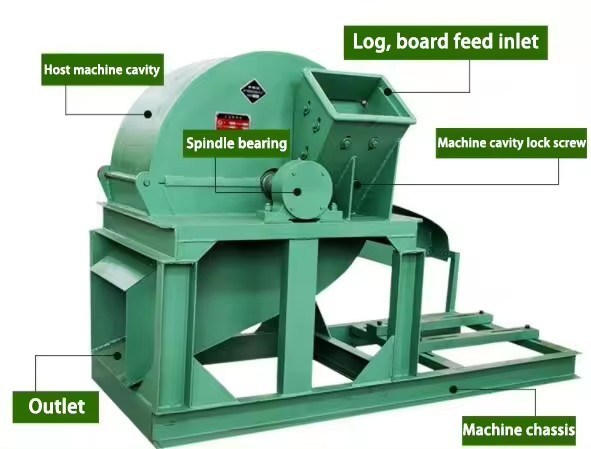

industries.This machine mainly consists of cutterhead, crushing
chamber, screen, etc. The fineness of sawdust can be adjusted and
adjusted by changing the screen. The performance of this machine
has been greatly improved compared with other similar products.The
structure is simple, the layout is compact, the price is cheap, the
work is stable, the energy consumption is low, the output is high,
the finished product of the sawdust machine is of good quality and
the processing cost is low.
Working principle1. Wood crushers usually have one or two feed ports, and raw
materials are usually fed into the machine feed ports manually.
2. The material is first cut by one or more rotating blades. These
blades are mounted on a rotor, which spins rapidly to cut the raw
material into small pieces.
3. The cut materials are sent to the crushing chamber, where they
will be further cut and squeezed.
4. The crushed materials will pass through a screening system,
which consists of a series of fixed and movable screens to separate
materials of different sizes.
5. The materials that pass the screening, that is, the wood chips
that reach the required size, will be discharged from the discharge
port of the machine.1. Wood crushers usually have one or two feed
ports, and raw materials are usually fed into the machine feed
ports manually.
Applicable materials and UsesWooden materials:logs,woodChips,boards,branches,Bamboo,poplar,fruit
trees,etc.Charcoal:raw charcoal,bamboo charcoal,fruit
charcoal,coconut shell charcoal ,etc.Fiber:straw,wheat
straw,cottonand linen straw,etc.Others:bark,cartons,coconut
shells,Chinese medicinal materials,feed,etc.
Crushing size
| Model | Blade(sheet) | Feed diameter(mm) | Machine size(cm) | Spindle speed(r/min) | Motor(Kw) | Diesel engine(horse power) | Yield(Kg/h) | Wight(kg) |
| MC-W-420 | 4 | 140*140 | 120*55*80 | 2700 | 11 | 20 | 300-500 | 280 |
| MC-W-520 | 4 | 180*200 | 150*70*82 | 2700 | 18.5 | 30 | 500-600 | 360 |
| MC-W-700 | 4 | 220*220 | 150*80*90 | 2500 | 36 | 48 | 700-1200 | 520 |
| MC-W-820 | 4 | 250*250 | 185*85*105 | 2300 | 45 | 80 | 1000-1500 | 780 |
| MC-W-1000 | 4 | 280*280 | 185*110*115 | 2300 | 55 | 80 | 1300-2000 | 1100 |
| MC-W-1200 | 4 | 320*330 | 200*115*130 | 2000 | 85 | 120 | 1800-2800 | 1280 |
| MC-W-1520 | 4 | 420*400 | 210*135*150 | 1500 | 120 | 155 | 2500-3500 | 3000 |
| MC-W-1800 | 4 | 520*530 | 220*165*165 | 1300 | 145 | 200 | 3000-10000 | 3800 |
Henan Mingchuang Machinery Manufacturing Co., Ltd. is a
professional supplier of crushing, sorting, drying equipment,
environmental protection machinery. With 18 years of experience in
machinery and equipment processing, The production of
multifunctional shredder machine, metal crusher, plastic crusher
washing line ,copper granulator recycling equipment, etc.
we can provide highly customized solutions according to customers'
needs, and win the recognition of industry users with advanced
technology and excellent product quality. For a long time, we
always adhere to the road of globalization,we have exported to
Central Asia, Southeast Asia, South America,and other more than 130
countries and regions.
FAQ
1,How do I get the right device for my needs?
Tell me what are your raw materials? Wood, bamboo, logs,wood
chips,boards,branches,poplar,fruit trees, etc. and more?
What is the approximate size of the raw material in millimeters?
Describe the shape of the raw material.
How many kilograms of raw materials are processed per hour?
Capacity 300-500kg or 3000-10000kg?
What is the final product? Sawdust, fine grain, fine chaff and fine
silk.
2,Why choose us?
We are a supplier with 15 years of production experience, can
support customized equipment according to your requirements, no
intermediate traders to earn the difference, equipment support
pre-shipment testing services, complete delivery services and
installation operation guidance, one-year shelf life, support
factory training guidance services, etc.
