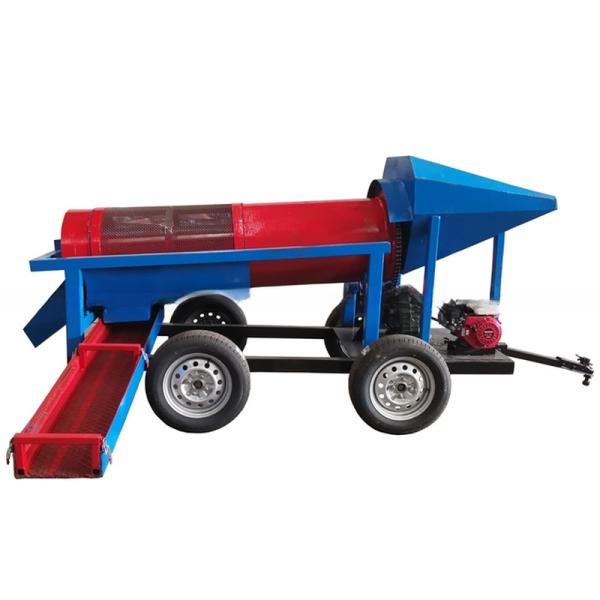

GMTS0519 is the best selling small gold panning mobile trommel screen in our factory. The package size is 1000*3000*1400mm, and the gross weight is 660kg. And our trommel screens all use Honda engines. It is very convenient for personal operation.
Now there have been Columbia graduates, customers from the United Kingdom, Canada, Australia, Ghana and other countries have purchased our mobile gold trommel screen for gold mining many times. We have our own factory and professional engineers, so we can provide you with greater advantages in terms of price, quality and technology
Gold refining equipment working principle:
1. Input of raw materials Raw materials inputted through the
entrance of the hopper will be pushed into the trommel screen by
the strong water pressure of the shower equipped in the hopper.
2. Selection and cleaning of raw materials Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and by watering of the shower inside, run into the gold dust separate panel.
3. Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.
Model | Capacity (t/h) | Capacity (t/h) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension ((mm) |
GMTS0519 | 5-10 | 5-10 | 500 | 1910 | 0-100 | ≤300 | 3000x1000x1800 |
GMTS1020 | 10-30 | 10-30 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
GMTS1225 | 30-50 | 30-50 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
GMTS1548 | 80-150 | 80-150 | 1500 | 4800 | 0-100 | ≤400 | 8460×2300×2500 |
GMTS1848 | 100-200 | 100-200 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2700 |
GMTS2060 | 200-350 | 200-350 | 2000 | 6000 | 0-100 | ≤400 | 9680×2300x3420 |
 |  |  |
