| Categories | Heat Sink Thermal Pad |
|---|---|
| Brand Name: | Ziitek |
| Model Number: | TIF7120PES thermal pad |
| Certification: | UL |
| Place of Origin: | China |
| MOQ: | 1000 pcs |
| Price: | 0.1-10 USD/PCS |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Delivery Time: | 3-8 work days |
| Packaging Details: | 24*13*1cm carton |
| Products Name: | GPU CPU Heatsink Cooling 7.5W/MK Conductive Silicone Pad Thermal Pad |
| Thermal conductivity: | 7.5W/mK |
| Specific gravity: | 3.4 g/cm³ |
| Hardness(Shore 00): | 55/10 |
| Thickness: | 3.0mmT |
| Keyword: | Thermal Pad |
| Application: | GPU CPU Heatsink Cooling |
| Company Info. |
| Dongguan Ziitek Electronical Material and Technology Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

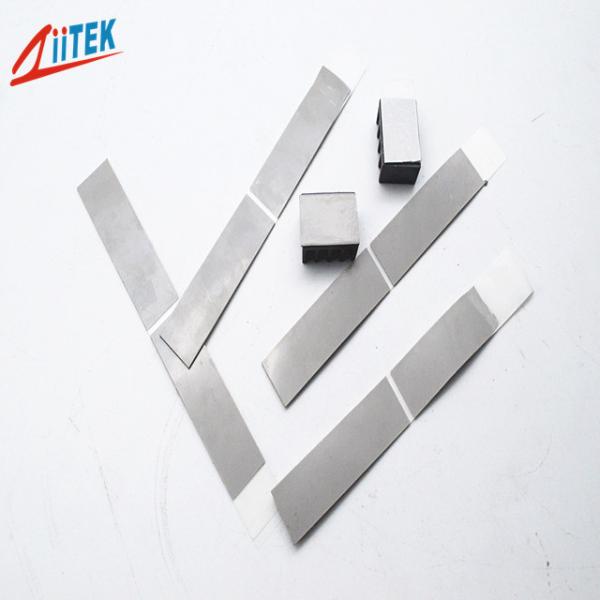

GPU CPU Heatsink Cooling 7.5W/MK Conductive Silicone Pad Thermal Pad
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Products description
Ziitek TIF®7120PES Series is a thermal pad specifically designed to tackle the high level cooling challenges and environments sensitive to extreme mechanical stress.It combines excellent thermal conductivity with a near-fluid ultimate softness, ensuring perfect filling of the contact interface even under ultra-low mounting pressure, completely eliminating air thermal resistance,and providing superior thermal solutions and physical protection for the most precise and highest heat flux electronic components.
Features:
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> AI Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations
| Typical Properties of TIF®700PES Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.4 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.020~0.030 (0.50~0.75) | 0.040~0.200 (1.0~5.00) | ASTM D374 |
| Hardness | 55 Shore 00 | 10 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 7.6 MHz | ASTM D150 | |
| Volume Resistivity | >1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 7.5 W/m-K | ASTM D5470 | |
| 7.5 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.020"(0.50 mm)~ 0.20" (5.00 mm) with
increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.
Q: What is your terms of payment ?
A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days.
|
|
