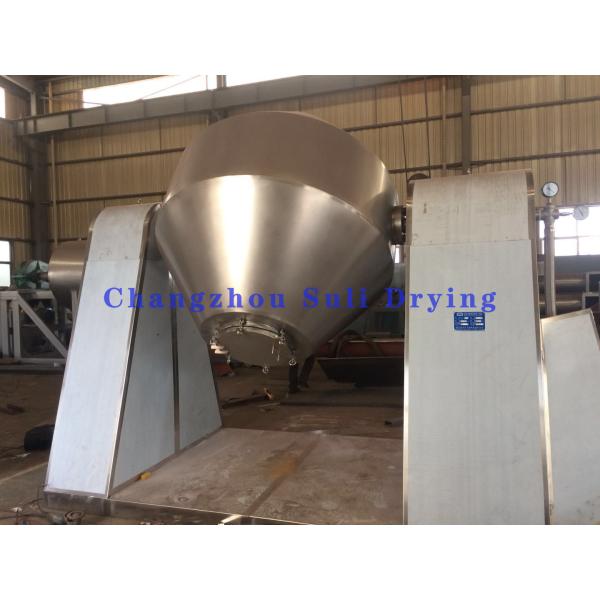

SZG Double Cone Turn Vacuum Drying Machine Customized Design Available

product description

The SZG dual-cone vacuum dryer is a new generation of drying device developed by our factory in combination with similar domestic product technology. The double-tapered vacuum uses the two elastic connection methods of the belt-chain, so the equipment runs smoothly. The specially designed process fully reflects the good concentric of the two axes. Both thermal media and vacuum systems use reliable mechanical seals or rotating joints of American technology. On this basis, we have developed SZG-A. It can not only have no speed adjustment and constant temperature control.
As a professional drying equipment manufacturer, our products are all available from high -temperature thermal oil to hot -media quality, medium temperature steam and low temperature hot water. When drying and sticky materials, our factory will specially design a "copy" agency or setting balls for you in the can.

working principle

◎ Pass thermal energy (such as hot water, low -pressure steam or heat conductive oil) in the closed mezzanine, and the heat is passed to the dry material through the inner shell.
◎ Driven by power, the tank is slowly rotated, and the materials in the can are constantly mixed to achieve the purpose of strengthening dryness.
◎ The material is in a vacuum state. The decrease in steam pressure has evaporated the water (solvent) on the surface of the material and evaporated, and the vacuum pump was discharged and recovered in time. The water (solvents) inside the material continuously penetrate, evaporate, and discharge from the surface, and the materials are continuously carried out, and the material has achieved drying in a short time.

Adapting material

It is suitable for the concentration, mixing, drying, drying and drying materials (such as biochemical products, etc.) of the pink, granular and fiber of chemical industry, food and other industries. It is more suitable for the drying of the drying, volatile, volatile, thermal sensitivity, strong stimulation, toxic materials, and the drying of the material that is not allowed to destroy crystals.

Performance characteristics

◎ When the oil is heated. Use automatic constant temperature control. Can dry and biochemical products
◎ The temperature can be between 20 and 160OC.
◎ High thermal efficiency is more than two times higher than ordinary oven.
◎ Indirect heating. Materials will not be contaminated and meet the "GMP" requirements. The equipment maintenance operation is simple and easy to clean.
◎ Recommended process resettlement demonstration solvent recovery process resetting.

,

Technical specification

Changzhou Suli Drying Equipment Co., Ltd. is a modern enterprise specializing in drying, drug machines, chemical equipment design and manufacturing specialized in drying, coal -fired hot air furnaces, etc., and is committed to designing and manufacturing production lines. The company is located at Sanhekou, Jiaoxi Town, Changzhou City, Jiangsu Province. It is convenient for transportation and 1 km away from the channel mouth of the Shanghai-Nanjing Expressway.

With the cooperation of high -tech engineering personnel and technicians for many years, the products have been continuously updated, quality has been continuously improved, and it is well-sold throughout the country. With strong comprehensive strength, based on professional talents and technical equipment, based on high-quality products as the pillars, and continuously perfect marketing management systems, they create high -represented Su -dry brands. Essence
