| Categories | H3C Series Network Switches |
|---|---|
| Brand Name: | HuaYutiancheng |
| Model Number: | LS-5590-28T8XC-HI |
| Place of Origin: | Beijing, China |
| Packaging Details: | Carton |
| Supply Ability: | 20000 Piece/Pieces per Month |
| MOQ: | 2 pieces |
| Price: | $1,510.00/pieces >=2 pieces |
| Private Mold: | NO |
| Products Status: | Stock |
| Ports: | 28 |
| Transmission Rate: | 582Mpps/762Mpps |
| Function: | POE |
| Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 2.4Tbps/24Tbps |
| Product name: | LS-5590-28T8XC-HI Switch Optimized for video traffic switch |
| MOQ: | 1 Piece |
| Cured port: | 28 100/1000BASE-X SFP (4combo GE ports) |
| Warranty: | 1 Year |
| Connect: | Ethernet switch |
| Model: | LS-5590-28T8XC-HI |
| Dimensions (H x W x D): | 44*440*400mm |
| Stock: | Yes |
| Delivery time: | within 2 day |
| Condition: | New and original |
| Port: | Dalian |
| Company Info. |
| BEJING HUAYU TIANCHENG TECHNOLOGY co,.ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Model | LS-5590-28T8XC-HI |
Port + Power supply | 28 10/100/1000BASE-T ports (4combo SFP ports) and 8 10G/1G BASE-X
SFP+ ports |
Packet forwarding rate + switching capacity | 2.4Tbps/24Tbps,582Mpps/762Mpps |
Warranty | 1 year |
Connect | Ethernet switch |

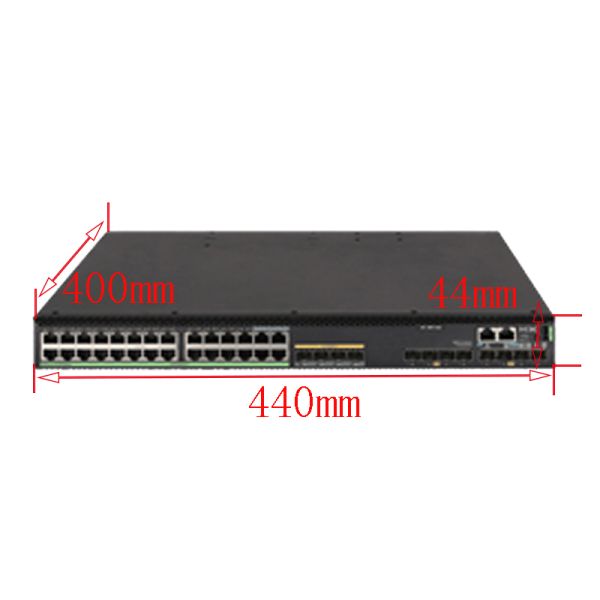

Size | 44×440×400mm |
Package forwarding rate | 582Mpps/762Mpps |
exchange capacity | 2.4Tbps/24Tbps |
weight | 8kg |
USB port | 1 |
Expansion board | 2-port 10-gigabit SFP+ interface board 4-port 10-gigabit SFP+ interface board 8-port 10-gigabit SFP+ interface board 2-port 25GE SFP28 interface board * 4-port 25GE SFP28 interface board * 8-port 25GE SFP28 interface board 2-port 40GE QSFP+ interface board 4-port 40GE QSFP+ interface board * 2-port 100GE QSFP28 interface board Netstream extension board Eagle Vision Scanner expansion board Firewall board Mini-iMC expansion board |
input voltage | AC: Rated voltage range: 100 to 240V AC, 50/60Hz DC: Input rated voltage range: -48V to -60V DC |
operating ambient temperature | -5℃~45℃ |
Working environment relative humidity (non-condensation) | 5%~95% |
Power consumption (static) | 41W |
Power consumption (at full load) | 105W |












|
