| Categories | S5700 Series Network Switches |
|---|---|
| Private Mold: | NO |
| Products Status: | Stock |
| Ports: | 24 |
| Transmission Rate: | 171Mpps |
| Function: | LACP, QoS, Stackable, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 520Gbps/5.2Tbps |
| Brand Name: | huayutiancheng |
| Model Number: | S5735-S24P4XE-V2, S5735-S24P4XE-V2 |
| Place of Origin: | Beijing, China |
| Product Name: | Stackable switch Network security S5735-S24P4XE-V2 |
| Port + Power supply: | 24 10/100/1000BASE-T Ethernet ports |
| Warranty: | 1 Year |
| Size: | 442mm x 220mm x 43.6mm |
| Weight: | 3.81KG |
| Delivery time: | within two days |
| MOQ: | 1 Piece |
| stock: | Yes |
| Condition: | New and original |
| Packaging Details: | Carton |
| Port: | Dalian |
| Supply Ability: | 20000 Piece/Pieces per Month |
| MOQ: | 2 pieces |
| Price: | $707.00/pieces >=2 pieces |
| Company Info. |
| BEJING HUAYU TIANCHENG TECHNOLOGY co,.ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Product name | S5735-S24P4XE-V2 |

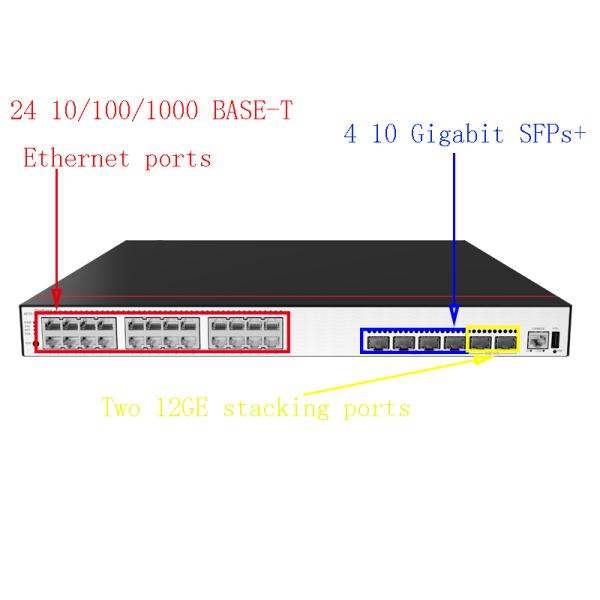

Port + Power supply | 24 10/100/1000BASE-T Ethernet ports,4 gigabit SFP |
switching capacity | 520Gbps/5.2Tbps |
Packet forwarding rate | 171Mpps |
Warranty | 1Year |
Size | 442x220x43.6(mm) |
Connect | Ethernet switch |
Chassis height | 1 U |
Power type | Built-in AC power |
peak voltage | 100 V AC to 240 V AC, 50/60 Hz |
Short term operating temperature | -5°C~+50°C |
Storage temperature | -40℃~+70℃ |
Power outlet lightning protection | Differential mode ± 6kV, and common mode ± 6kV |
Heat dissipation method | Air-cooled heat dissipation and intelligent speed adjustment |
MAC feature | Comply with IEEE 802.1d standard Supports automatic MAC address learning and aging Supports static, dynamic, and black hole MAC entries Supports source MAC address filtering |
VLAN feature | Supports 4K vlans Voice VLAN Support Supports the MUX VLAN function Vlans based on MAC/ protocol /IP subnet/policy/port are supported |













|
