High Reduction Ratios Harmonic Gears Strain Wave Reducer

LSN series are high torque housed component gear set combined with a precision cross roller output bearing & flange. It is a very compact, robust and easy to use gearhead solution. The LSN II series is available in 5 sizes with ratios 50:1 to 160:1. If your application does not require high torque, LSN series gearhead is a great alternative gearhead. There is also a lightweight version.

Key Features Zero Backlash Peak Torque at Start and Stop: 18Nm to 28Nm Accuracy <1 arc-min Reduction ratios 50:1 to 120:1 High torsional stiffness High efficiency Smooth operation Robust cross roller output bearing Output flange for direct mounting of load

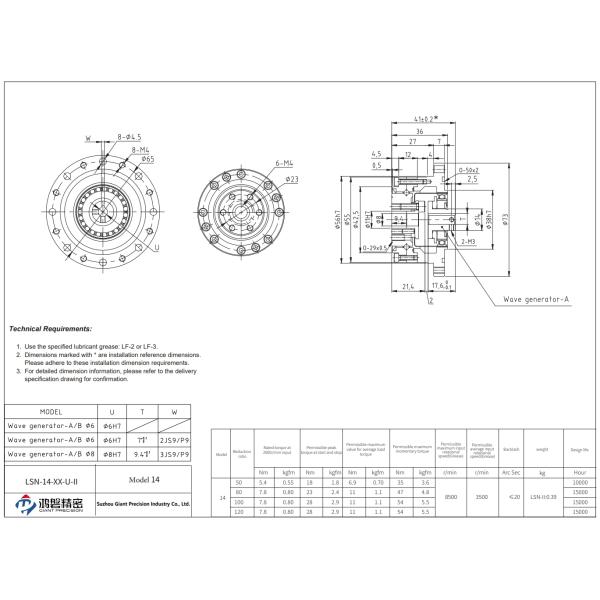

Specifications

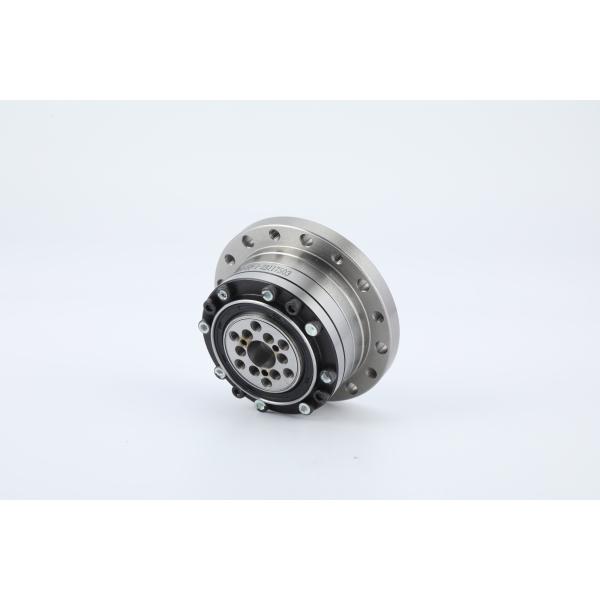

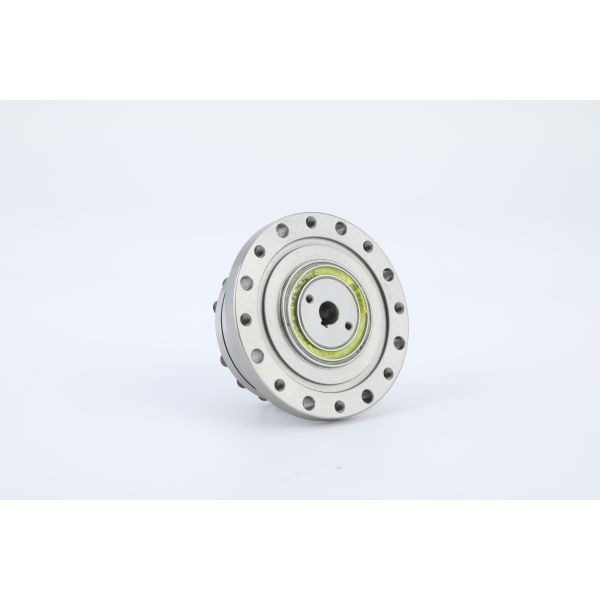

Detailed Images

	Key Attributes of LSN - II Model 14 Harmonic Gear Units
	Product	Model 14 Harmonic Drive
	Components	Wave Generator, Flexspline, Circular Spline
	Reduction Ratio	50:1, 80:1, 100:1, 120:1
	Backlash	Less than 20 Arc Sec
	Average Input Speed	3500 r/min
	Max Input Speed	8500 r/min
	Design Life	15000 hours
	Model	14
	Weight	0.39 kg
	Warranty	1 Year

Applications

Industrial Robots	Medical Devices	Huamnoid Robots
Optical Machines	Aerospaces	Manufacturing Systems
