| Categories | Bulk Cement Trailer |
|---|---|
| Model NO.: | semi trailer |
| Types of Suspension Systems: | Cross Arm Type |
| Shape: | Flatbed |
| Self-dumping: | Self-dumping |
| ABS Anti-lock Braking System: | ABS Anti-lock Braking System |
| Material: | Steel |
| Condition: | New |
| Function: | Transport Bulk Powder |
| Air Compressor: | 12m3/Minute Bohai Brand |
| Engine: | Diesel Engine: Weichai 4102 |
| Compartment: | 1 Inner Fluidized Bed: Air Bag |
| Axle: | 13/16t, Fuwa / BPW |
| King Pin: | Jost 2.0 or 3.5 Inch Bolted Type |
| Suspension: | Mechanical Suspension |
| Braking System: | Wabco Re6 Relay Valve |
| Tire: | 12.00r22.5 ; 315/80r22.5; 11.00r20; 12.00r20 |
| ABS: | Abstoptional |
| Landing Gear: | Jost Brand Two-Speed |
| Fire Extinguiser: | Two Pieces 4 Kgs |
| Spare Tire Carrier: | 2 Pieces |
| Safety Guard: | with Standard |
| Transport Package: | Nude |
| Specification: | 11000*2500*3900mm |
| Trademark: | KOMLIGA |
| Origin: | China |
| HS Code: | 3708960665 |
| Supply Ability: | 500/Month |
| Type: | Semi-Trailer |
| Load Capacity: | 50T |
| Certification: | ECE, GCC, CE, ISO9001 |
| Wheel Base: | 7000-8000mm |
| Tread: | 1820mm |
| Grade: | Light Duty |
| Customization: | Available | Customized Request |
| Place of Origin: | China |
| Bulk powder pressure tank unloading bulk cement truck trailer | |
| Type | Bulk cement tanker trailer |
| Shape | Round or Square (Optional) |
| Dimension | 9500-13500*2500*3900 (Exact size depends on the final design) |
| Tare weight | Approx. 8500kgs-11000kgs |
| Volume | 23,000-120,000 cbm |
| Capacity | 28-150 tons |
| Tank body material | 5.5mm carbon steel/aluminum alloy/stainless steel |
| End plate | 6mm carbon steel |
| Manhole cover | diameter 500 mm 2 pieces, material aluminium |
| Ratedwork pressure | 0.2Mpa |
| Discharging valve | 3 or 4 inch ball valve / API valve |
| Diesel Engine | PTO or 4102/4105 China weichai brand model |
| Compressor | 12 cbm |
| Compartments | Single |
| Discharging pipe | 3" or 4" rubber pipe, 1 piece, 6 m / each |
| Main beam | Extruded T shape aluminum alloy beam |
| Axle | 13/16T, FUWA / BPW / SHENGRUN brand etc |
| King pin | Jost 2.0 or 3.5 inch bolted type |
| Suspension | Mechanical suspension / Germany type or America type / Air suspension |
| Leaf spring | 90 mm(Width) * 13 mm(Thickness) * 10 layer or 100 mm * 12 mm * 12 layer |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber, 2 pieces of 45L air tank |
| Wheel rim | 9.0*22.5 / 8.0-20 / 8.5-20 better brand 12pcs |
| Tire | 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional |
| ABS | Optional |
| Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 24T |
| Air compressor | 37 KW, 0.2Mpa. 1000r/Min |
| Air-charging system | 2"main hole.2"check valve .1.5"safe valve.0.4Mpa.gauge |
| Quadratic blow | 1" diameter check valve |
| Fire extinguiser | Two pieces 4 kgs |
| Spare tire carrier | 2 pieces |
| Safety guard | With standard |
Main products
1. Shacman dump Truck / Tipper Truck
2. Hohan tractor Truck
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement trailer
10. High-altitude operation truck
11.Semi Trailer ( flat bed trailer / skeleton trailer / dump
trailer / side wall trailer / low bed trailer / container trailer,
etc. )

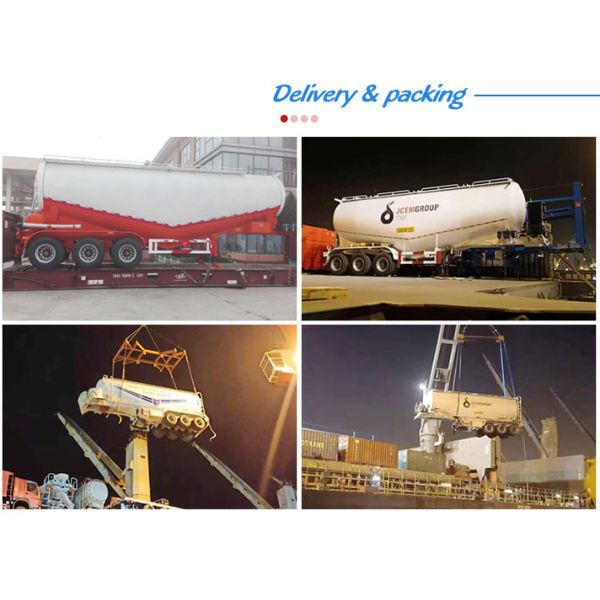

Shipping method for 3 axles 40m3 45m3 50m3 silo tanker bulk cement trailer :
Usually Our bulk cement trfailer can be shipped by Ro-ro ship or Bulk ship or Flat rack container.
Packing Detail: Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck,we will spray antirust paint with free.
1. Q: What's your MOQ?
A: One unit trailer or truck.
2. Q: What is your lead time?
A: Usually it is 15-20 days after deposit received.
3. Q: What is the warranty of the trucks?
A: 12 months about engine, axle and transimission, some spare part
can be 18 months. And we can help you solve every
problem about the truck by email and phone whole life.
4. Q: What's your payment terms?
A: T/T: 30% deposit by T/T,70% balance should be paid before
shipment.
L/C: 100% irrevocable Credit of Letter.
5. Q:If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
A:You can tell me that you are using the Tractor/Primer Mover model
or the distance between fifth wheel and the ground,
we can design a height that matches your Tractor.
6. Q:If We Can Provide Terms For Reducing Your Import Duties ?
A:Yes, Please Contact With Us, We Are Nationalized Manufacture With
Tax Reduction, Will Also Offer You The Best Way
For Import Duty Reduction.
7. Q: How about the after sales service?
A: We provide technical support and spare parts for long life time
of our products.
|
