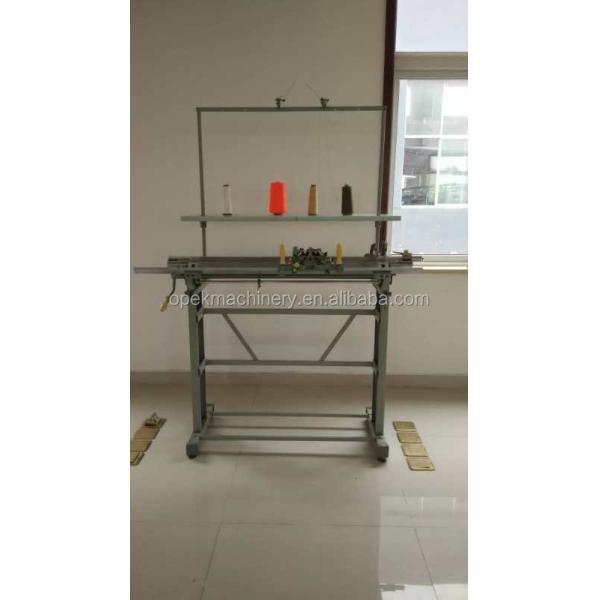

Double System Hand Driven Knitting Machine for Single Carriage and Knitting

This machine is suitable for factories and families to use knitted yarns to weave knitted clothes, scarves, hats and other fabrics. Main specifications and technical features gauge : 1.5, 2, 3, 3.5, 4, 5, 6, 7, 8, 9, 10, 12, 14 Knitting Bed : 36 ", 40 ", 42 ", 44 ", 48 ", 52" The needle plate is made of high carbon steel, processed by computer machine, with high precision of needle slot, head slot and head slot.The surface is hardened by high frequency and has strong collision resistance. The surface of needle plate and guide rail is plated with hard chromium, with strong wear resistance and corrosion resistance. Two sliders are installed behind the head of the fine needle flat knitting machine, so that the head can run smoothly and not shake easily, and the fabric quality is good.After the head foot and slide block wear, the head is easy to shake and the fabric quality decreases.At this point can be convenient to replace the front and rear four sliding blocks, so that the machine head to restore smooth weaving.Extended the service life of the machine. The triangle is made of die steel and processed by computer machine, with good standard and wear resistance. Use low foot knitting needle, high foot knitting needle to cooperate 2 class triangle board to weave the fabric such as set circle dot flower, small square.
