DL-SJB-4CW Xiamen Tea Packaging Machine Electric Driven Type Wrapping Machine

DL-SJB-4CW Xiamen Tea Packaging Machine Electric Driven Type Wrapping Machine

DL-SJB-4CW Xiamen Tea Packaging Machine Electric Driven Type Wrapping Machine
DL-SJB-4CW Xiamen Tea Packaging Machine Electric Driven Type Wrapping Machine
Categories Tea Packing Machine
Application: Food, Beverage, Chemical
Packaging Type: Bags, Pouch
Packaging Material: Plastic, Paper
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V
Place of Origin: Fujian, China
Brand Name: DELI ASSISTANT
Dimension(L*W*H): 390*160*80 cm
Weight: 800 KG
After-sales Service Provided: Online support, Video technical support, Free spare parts
Warranty: 1 Year
Key Selling Points: Easy to Operate
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Core Components: PLC, Motor, Engine
Dimension: 390*160*80 cm
Bag roll with: 12/14/16 cm
Air source pressure: 0.6Mpa
Weight range: 1-15 g
Scale quantity: 4/6 pcs
Capacity: 2000-4500 bags/h
Outer Bag Size: 16/18 cm
Type: Wrapping Machine
Applicable Industries: Food & Beverage Factory
After Warranty Service: Video technical support, Online support
Condition: New
Price: $21,765.00/sets 1-9 sets
Contact Now
Company Info.
Quanzhou Deli Agroforestrial Machinery Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

DL-SJB-4CW Xiamen Tea Packaging Machine Electric Driven Type Wrapping Machine

Round Tea Bag Packing Machine
Pyramid Tea Bag Packing Machine
Square Tea Bag Packing Machine
Auto Filling And Sealing Machine
Manual Continuous Bag Sealing Machine
Manual Filling Machine
these machine is Some tea packaging machines, If you want to know more information about these machines, or there is no machine you need here.please contact us
Provide variety of packaging bag solutions

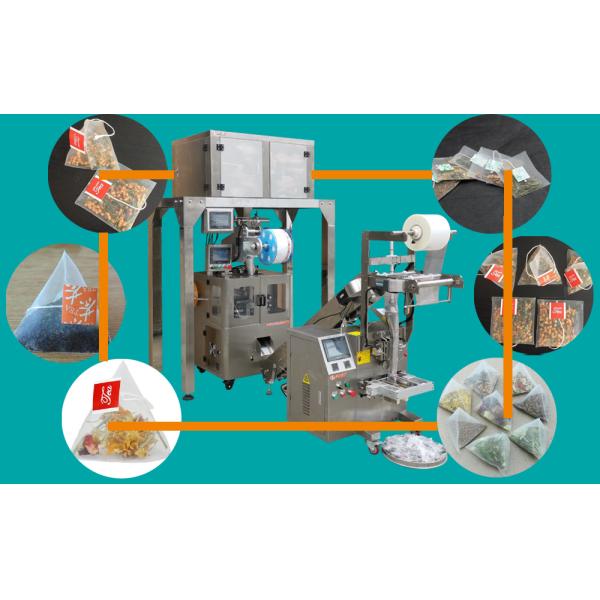

The triangular/pyramid bag packaging machine can pack a variety of materials, such as tea, coffee, herbal tea, etc. It can be switched between triangular/pyramid bags and square bags by one-click switching. It is a powerful assistant for high-end tea,coffee and other food packaging.
ccording to the different needs of different customers, we can provide packaging of different materials, whether it is granule,powder, liquid packaging, or packaging by weight or quantity, we can provide a complete set of solutions.
OVERVIEW

Provide variety of packaging bag solutions

The dip bag packaging machine can pack a variety of materials, such as tea, coffee, herbal tea, etc. It can be switched between bags with / without labels, tags and outer bags. It is a powerful assistant for high-end tea, coffee and other food packaging.
according to the different needs of different customers, we can provide packaging of different materials, whether it is granule,powder, liquid packaging, or packaging by weight or quantity, we can provide a complete set of solutions.
DESCRIPTION

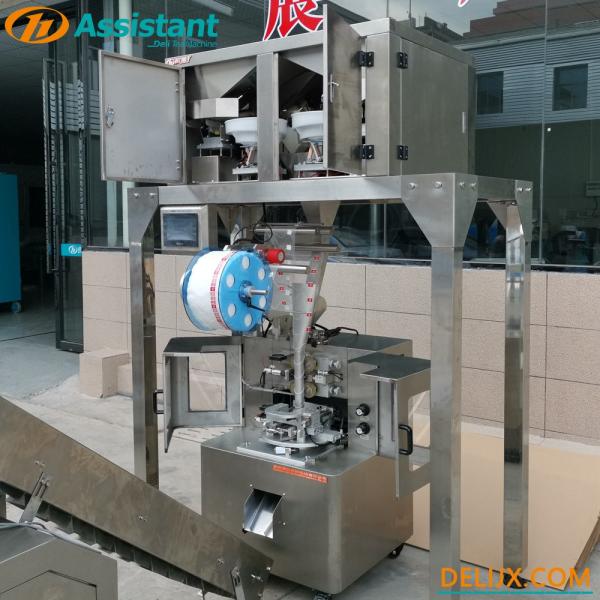

Triangle Tea Bag Packaging Machine can pack triangle/pyramid tea bag, also can adjust to sqaure tea bags, 1 hour can pack
2000-4500bags, tea bags can be covered with plastic bags.
This machine can packing nylon tea bags, corn fiber bag, using ultrasonic sealing, the bag will not be damaged and no harmful
substances will be produced.
ADVANTAGE
1. Sealing and cutting function by ultrasonic;
2. PLC control and touch screen make the operation easier;
3. SMC pneumatic components, prolong the service life of the machine;
4. Adopt Mechatronics design, you can switch data without shutting down;
5. According to the shape of the material, electronic scale or sliding cup can be selected for measurement;
6. The production of triangle three-dimensional bag and four corner flat bag only needs one key switch.
SPECIFICATION
Dip tea bag packing machine specification list:
Model
DL-SJ-4CW
Dimension
390×160×80 cm
Bag roll with
12/14/16 cm
Bag roll diameter
40 cm
Tea bag width
5/6/7 cm
Air source pressure
0.6 Mpa
Power
0.8 kw
Weight range
1-15 g
Capacity
2000-4500 bags/h
Scale quantity
4 pcs
If you have special need, it can be customized according to the needs of customers.
DIAGRAM
1
Scales
7
Discharge Pipe
2
Control Panel
8
Pyramid Bag Roll Film
3
Outer Bag Roll
9
Pyramid Bag Former
4
Photoelectric eye
10
Ultrasonic sealer
5
Outer Bag Former
11
Pyramid Bag Outler
6
Outer Bag Sealer
12
Bag Conveyor

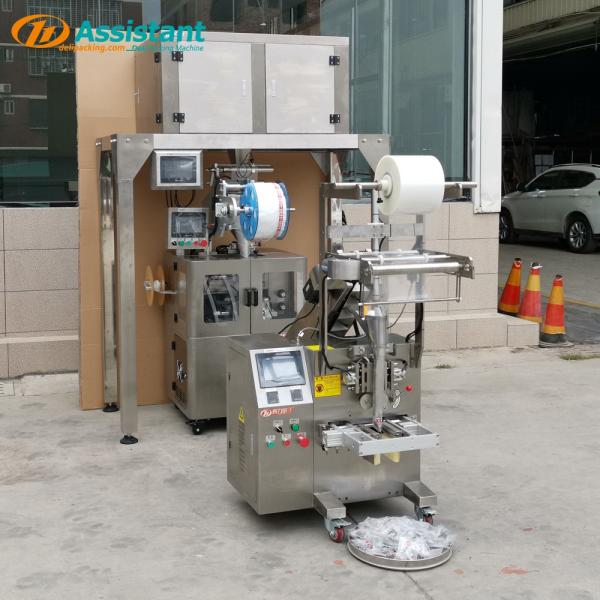

This manual pouch sachet filling machine can pack a variety of materials to meet your needs of different packaging.
Details

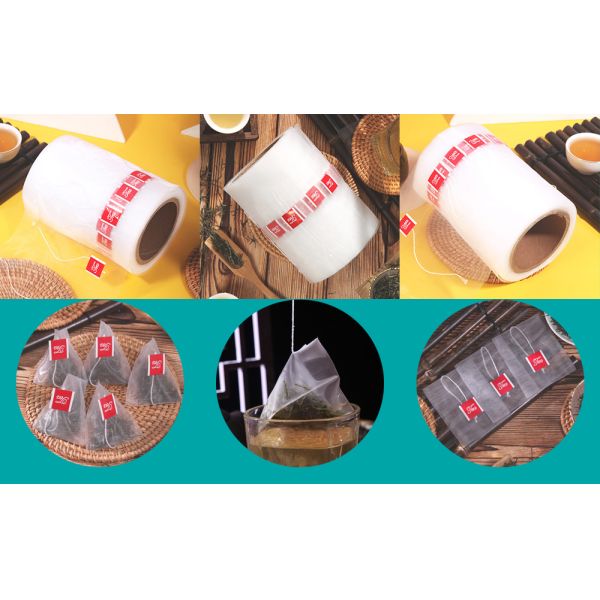

Various bag materials are available

This triangular bag packing machine can pack different bags according to your different needs. Nylon, corn fiber and PLA bags are available to meet the market segmentation needs of different grades.

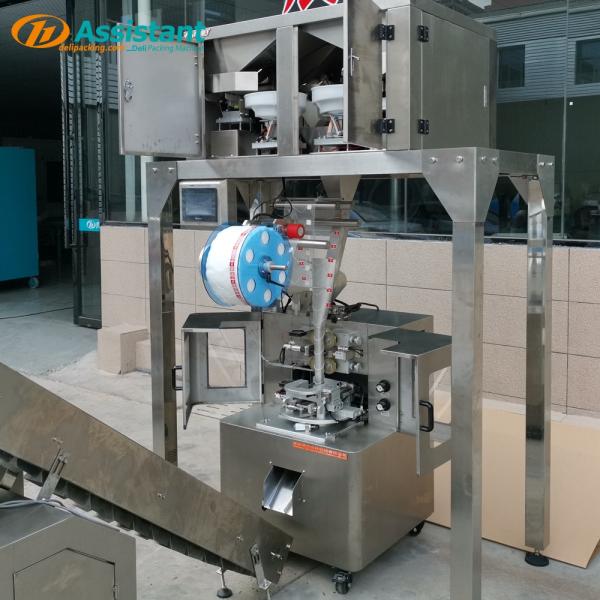

Multiple electronic scales optional, and bag filmes easy Installation

1. This packaging machine is upgraded from the original single scale to 4 scales free of charge. The packaging speed can be increased by 4 times and can reach 100 bags/min. The four scales can be weighed individually or at the same time. Bags are filled with several different materials at once.
2. The design of the rubber roller addition molding device is convenient for installing the roll film, and the roll film is not
easy to deviate, and the packaging speed is faster

Date printer and cursor Sensor

1. The printer can print date, batch, company name and other information to meet your customization needs. The printing effect is clear and the bag will not be damaged.
2. If your bag is a customized bag with your design drawing on it, you should need to use it, which can make the packaging of the bag more accurate and the information displayed more complete.
Pneumatic Ultrasonic Sealer
The pneumatic rotary ultrasonic sealer is adopted, which is twice as fast as the original electric sealing. At the same time, the failure rate of electric sealing is reduced, and it is the most advanced triangular bag packaging machine on the market.
Package
Order a triangular bag packing machine now and get a free air compressor ($500 value).

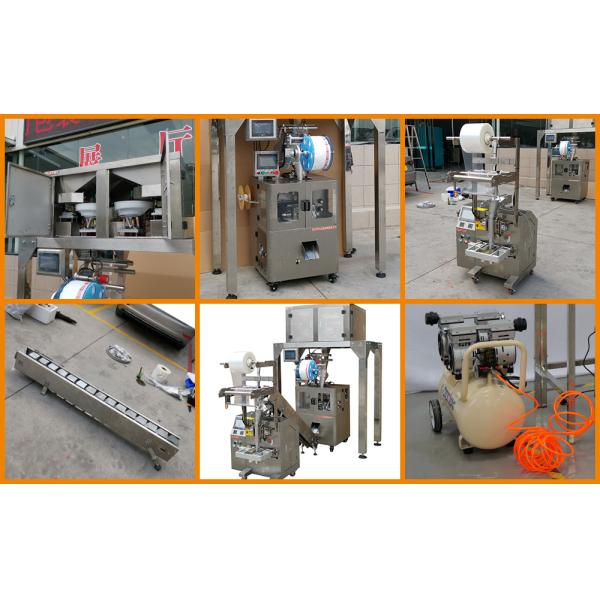

This triangular bag packaging machine is divided into 5 wooden boxes, which are: electronic scale, triangular/pyramid bag machine host, lifting hopper, outer bag packaging machine, and air compressor.

Before delivery, the machine will be debugged according to your packaging bag type and material type, reducing your debugging time, and your machine can be used directly after arriving at the factory, speeding up your production progress.

After the machine arrives at your factory, you only need to disassemble the wooden box, and then install the machine according to the screw holes, which is convenient and fast.
PHOTOS
Obtain ISO9001 quality system certification
More than 30 Chinese honorary certificates
More than 20 Chinese national patent certificates
More than 50 promotion certificates of China Agriculture Ministry
Customers visit our factories
Part of the our workshop photos
