Activated Hopper / Vibrating Hopper
Product Introduction
The activated hopper installed at the bottom of the storage tank, and it can be selected according to the size of storage tank. The materials are activated by vibration, which can effectively eliminate the arching, blocking and sticking of materials, and solve the problem of difficult discharge of the silo. It has good durability.
Application Area
The activated hopper is widely used in chemical industry, building
materials, metallurgy, machinery manufacturing, grain and food
processing, feed processing, environmental protection, ceramics and
other industries.
Product Specification
| Model | Diameter | Thickness | Power KW | Dimension |
| AH400 | Φ400 | 2mm | 0.09 | 355x717x587 |
| AH600 | Φ600 | 2mm | 0.09 | 525x851x720 |
| AH750 | Φ750 | 3mm | 0.09 | 692x1028x885 |
| AH1000 | Φ1000 | 4mm | 0.09 | 720x1292x1150 |

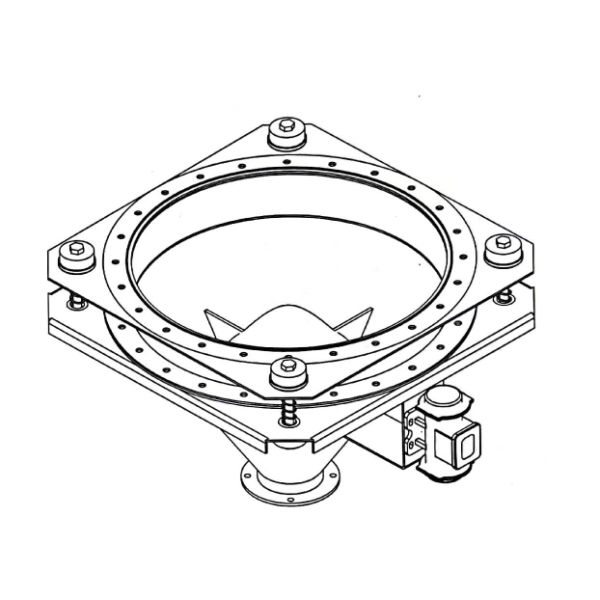

Outline Drawing

|
