| Categories | Ceramic Tile |
|---|---|
| Place of Origin: | Jiangsu, China |
| Brand Name: | LJ Ceramic |
| Certification: | ISO9001:2008/ROHS |
| MOQ: | 2 piece |
| Price: | Negotiation |
| Packaging Details: | Use the export carton which is secure against breakage on the MDF pallet. |
| Delivery Time: | To be negotiated |
| Payment Terms: | L/C ，T/T |
| Model Number: | Aluminium Ceramic Tile |

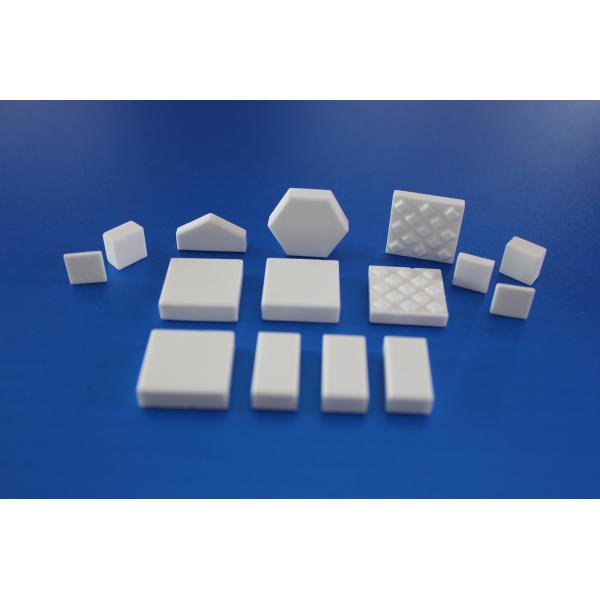

Customized High Temperature Resistant Alumina Ceramic Sheet
Aluminum ceramic tiles come in different types and grades based on
the aluminum content and purity. Generally, the higher the aluminum
content, the better the performance of the material, but the cost
also increases accordingly.
Aluminum ceramic tiles can be custom-manufactured according to
specific application requirements, with dimensions and shapes
adjusted as needed. Different surface treatments can also be
applied to meet special usage conditions.
Benefits
Product Name | Ceramic Tile | ||
Material | Alumina 99(99% Alumina) | Sintered Silicon Carbide(SSiC) | Boron Carbide(B4C) |
Density | 3.12-3.16 g/cm3 | 3.88 g/cm3 | 2.8 g/cm3 |
Purity | 99% min | ||
| Types | Hexagon Tiles/Rectangle Tiles/Curved Rectangle Tiles/Single Curved
Plates | ||
Shapes | Square/Hexagonal/Cylinder/Rectangle/Single-curved Plate/Cut-angle
Tile, etc | ||
Sizes | 50*50mm; 100*100mm; 50*25mm; 100*50mm (Specific Sizes Are Also
Available) | ||
Hex Tile Flat To Flat 20mm, 30mm, 40mm | |||
Features | Excellent energy savings; Lighter weight and higher load capacity; Excellent distortion resistance at high temperature; High thermal conductivity; High Young's modulus; Low thermal expansion coefficient; Extremely high hardness; Wear resistant | ||
Silicon Carbide Bonded Boron Carbide Ceramic Tiles | |
Item | Index |
| Bulk Density (g/cm3) | 2.82 |
Apparent Porosity (%) | 0.336 |
| Bending Strength (Mpa) | 290 |
| HRA | 90.9 |
| Vickers Hardness(kgf/mm2 ) | 2630 |
Alumina Tiles | ||
Item | Unit | 99 Alumina Tiles |
| Al2O3 | % | 99 |
| Bulk Density | g/cm3 | 3.88 |
| Vickers Hardness | HV | 1550 |
| Rockwell Hardness | HRA | 91 |
| Rupture Strength | Mpa | 350 |
| Elasticity Modulus | Gpa | 323 |
| Breaking Tenacity | Mpa m1/2 | 3.99 |
Features:
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products and electric heating products
7) OEM, ODM and OBM are welcomed
Applications

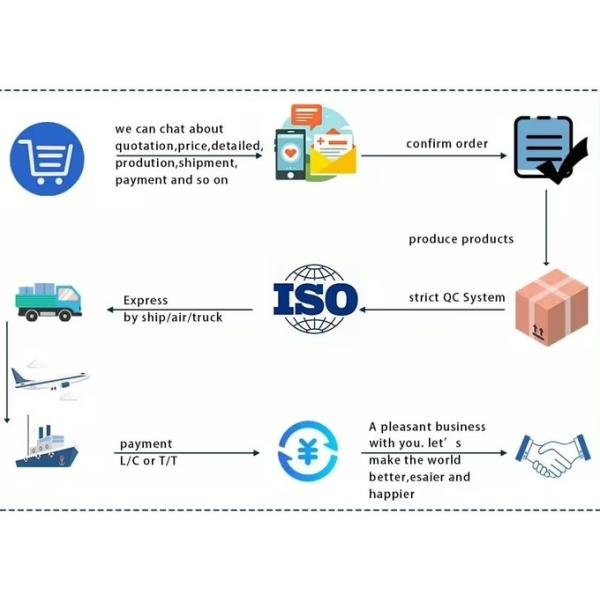

Purchase process
FAQ
Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in
producing refractory materials for more than 20 years. We promise
to provide the best price, the best pre-sale and after-sale
service.
Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for
chemical composition and physical properties. And we will test the
goods, and the quality certificate will be shipped with the goods.
If you have special requirements, we will try our best to
accommodate them.
Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But
we promise to ship as soon as possible with guaranteed quality.
Q4: Do you provide free samples?
A4: Of course, we provide free samples.
Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our
products.
Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and
solution according to your situation.
Q7: Why choose us?
A7: We have been making refractory materials for more than 20
years, we have strong technical support and rich experience, we can
help customers design different kilns and provide one-stop service.
|
