Titanium Floating Balls Titanium Balls Gr5 Grade 5 Grade 7

Categories	Titanium Ball Valve
Brand Name:	LHTi
Model Number:	Titanium Ball
Certification:	ISO9001,CE,etc
Place of Origin:	Baoji, China
MOQ:	10 pieces
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000 Pieces Per Month
Delivery Time:	about 15-25 days for delivery
Packaging Details:	Plywood case or pallet, or as per your requirement
Sealing Method:	Floating Ball, Trunnion Mounted
Product Type:	Ball Valve
Ti Content:	99.6%
Testing Standards:	JB/T9092、GB/T13927、API6D、API598
Size:	1/2 inch - 12 inch
Connection Type:	Threaded
Port:	Full
Seat Type:	Soft Seat, Metal Seat
Locking Device:	Optional
Ball Materials:	Titanium TA1、TA2、TA10、Gr2、Gr3
Temperature Rating:	-196°C - 600°C
Ball Type:	Full Port, Reduced Port
Working Temp:	150°-425°
Seat Material:	PTFE, RPTFE, PEEK
Top Entry Design:	Available

Contact Now

Add to Cart

Company Info.

Baoji Lihua Nonferrous Metals Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Titanium Floating Balls Titanium Balls Gr5 Grade 5 Grade 7

Titanium Floating Balls - Grade 5 & Grade 7

Titanium hollow balls are spherical objects crafted from titanium or titanium alloys, featuring a hollow interior construction. These precision components combine lightweight properties with exceptional durability for demanding industrial applications.

Key Properties

Corrosion Resistance: Exceptional performance in aggressive environments including seawater and chemical processing plants
Lightweight Construction: Low density provides significant weight reduction compared to steel components
High Strength: Superior strength-to-weight ratio capable of withstanding high loads and pressures
Biocompatibility: Non-toxic and compatible with human tissues for medical applications
Thermal Stability: Maintains mechanical properties across wide temperature ranges

Product Specifications

Product	Titanium and Titanium Alloy Ball
Size Range	1.0mm-6.0mm (0.040"-0.236") or custom sizes available
Available Materials	Gr.1, Gr.2, Gr.3, Gr.4, Gr.7, Gr.9, Gr.12
Surface Finish	Metallic luster
Titanium Content	≥99.6%
Impurity Content	<0.02%
Density	4.51g/cm³
Manufacturing Techniques	Machining, Forging

Titanium Ball Types

Pure Titanium Balls: Grades 1 & 2 offering excellent corrosion resistance and formability
Titanium Alloy Balls: Grade 5 (Ti-6Al-4V) and Grade 7 with enhanced properties
Precision Titanium Balls: Manufactured to tight tolerances for aerospace and instrumentation
Medical Grade Balls: Biocompatible alloys for implants and surgical instruments
Customized Solutions: Tailored specifications for unique industrial applications

Grade 5 vs Grade 7 Comparison

Property	Grade 5 Titanium (Ti-6Al-4V)	Grade 7 Titanium (Ti-0.2Pd)
Alloying Elements	6% Al, 4% V	0.2% Pd
Strength	High (Tensile: ~895-965 MPa)	Lower (Tensile: ~345-415 MPa)
Corrosion Resistance	Excellent	Superior in acidic/chloride environments
Primary Applications	Aerospace, military, medical implants	Chemical processing, marine, desalination
Machinability	Good	Easier to machine than Grade 5

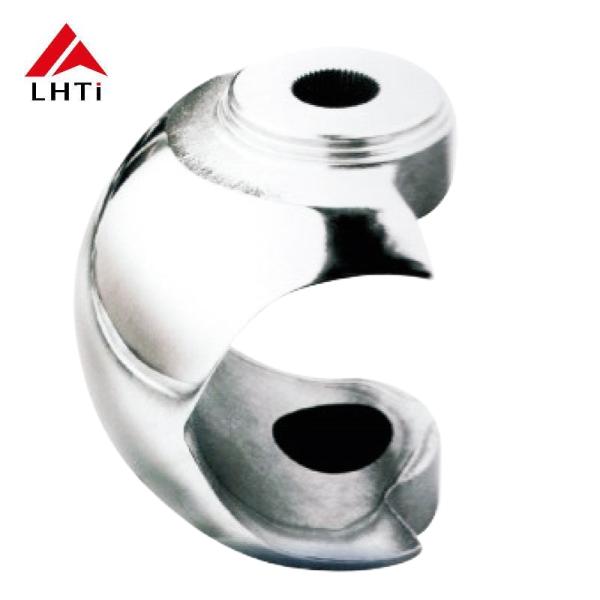

Titanium ball manufacturing and application examples

Packaging Options

Wooden Crates: Optimal protection for large quantities and sizes
Carton Packaging: Convenient handling for smaller quantities
Custom Solutions: Tailored packaging for specialized shipping requirements

Industrial Applications

Aerospace: Bearings, valves, and lightweight structural components
Medical: Surgical implants, prosthetics, and dental instruments
Precision Instruments: Measurement tools and calibration equipment
Chemical Processing: Valves, pumps, and corrosion-resistant equipment
Automotive: Performance components for weight reduction and efficiency

Product Tags:

High Pressure Titanium Floating Balls

Gr5 Grade 5 Titanium Floating Balls

Grade 7 Titanium Floating Balls

Titanium Floating Balls Titanium Balls Gr5 Grade 5 Grade 7
