Complex Thin-walled Stainless Steel Impeller for Investment Casting Process

Categories	Casting Auto Parts
Place of Origin:	Henan, China
Brand Name:	XME
Model Number:	Non-Standard
Process:	Investment Casting+machining
Material Grade:	Stainless Steel
MOQ:	1000 pieces
Price:	$35.00 - $60.00/pieces
Delivery Time:	within 30 days
Payment Terms:	T/T, L/C, D/P D/A, Cash

Contact Now

Add to Cart

Company Info.

Henan Beitejia Machinery Manufacturing Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Complex Thin-walled Stainless Steel Impeller for Investment Casting Process

Product Description

Investment Casting

The Investment Casting Process is capable of producing parts with complex shapes and precise dimensions, along with a high surface finish, which minimizes the need for further machining. This process allows for the use of various stainless steel alloys, resulting in castings with excellent corrosion resistance, strength, and high-temperature performance. Additionally, the high material utilization and low waste contribute to reduced overall manufacturing costs.

Over more than 20 years of development, Xinlong Machinery has established its own product features and technical advantages. The company produces a variety of precision castings, including valves, pumps, automotive parts, marine components, electrical fittings, hardware, and construction machinery parts.

XINLONG MACHINERY & EQUIPMENT CO.,LTD

We are experts in investment casting and one of China's leading manufacturers of stainless steel precision castings. Our factory is equipped with three precision casting lines, utilizing both medium and low-temperature wax processes, and a machining workshop, with an annual production capacity of up to 7,000 tons of castings. To enhance our core technological competitiveness, we have consistently focused on increasing the automation level of our production equipment. The casting workshop features fully automated wax injection machines, a wax injection process group control system, automated shell-making robots, and an automatic temperature and humidity control system for the drying chambers. Our technical team has also independently designed a computerized batching system, equipped with a subcontracted pouring robotic arm and a large-scale shell-breaking robotic arm. Through continuous technological upgrades, our investment castings can reach a maximum weight of 300kg.

Maximum single-piece weight	300 Kg
Surface quality	≤Ra6.3, and after special processing, ≤Ra3.2
Rapid manufacturing capability	Equipped with powder sintering laser rapid prototyping machines and stereolithography rapid prototyping machines, we can quickly produce samples and small batches of products.
Vacuum casting capability	Equipped with a vacuum melting furnace, we can produce nickel-based and cobalt-based alloys, with a product weight range of 0.001 to 25 kg.

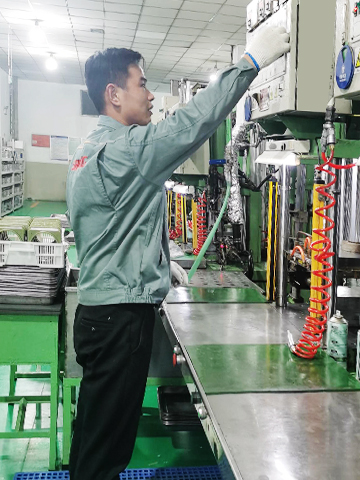

Wax injection

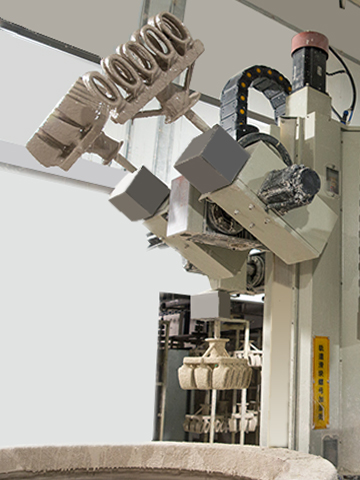

Shell building

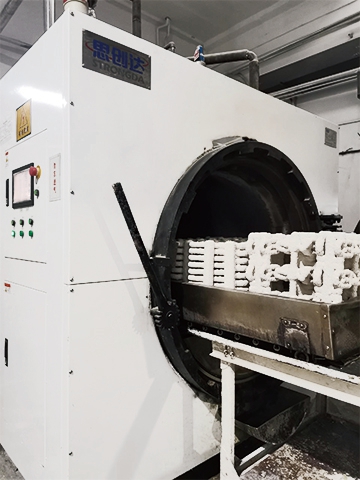

Dewaxing

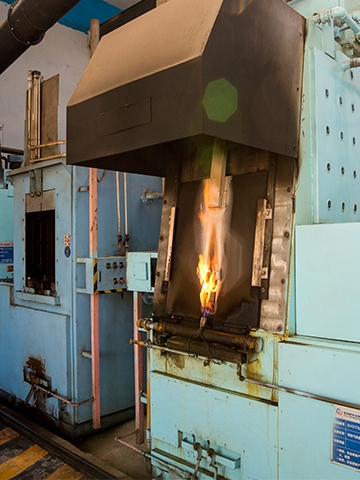

Pouring

Heat Treatment

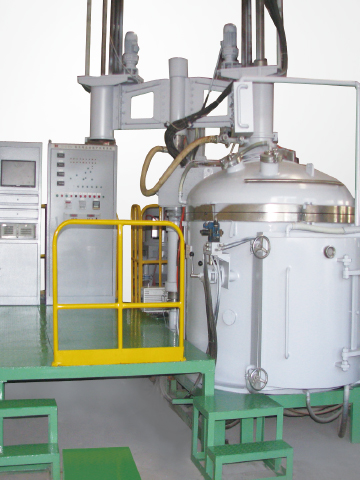

Vacuum furnace melting

Quality Assurance

Quality Control and Standards

All our products would have quality control systems conforming to ISO9001:2015 quality control systems. Continuing statistical process control and process capability improvement would be applied for all products manufacturing process. Our commitment and continuous effort would be to improve product quality.

Process of Chemical Analysis

1.In house spectrometer with 24 channels capable of testing Fe, Ni, Co, Al based materials and also Nitrogen content.
2.All heats poured are tested on-line on Spectrometer.
3.All the scrap used are also tested before using.
4.Specimens are stored for particular period.

Metallurgical microscope

A Spetrometer

Magnet-powder flaw detector

Process of Physical Testing

1.In house Universal Testing Machine.
2.In house Hardness Testing Machine.
3.In house Impact Testing Machine.

Impact testing machine

Universal Testing Machine

Hardness Testing Machine

Various Test to be provided

Chemical Analysis, Tensile Test, Impact Test, Radiography (X-Ray), Dye Penetrate, Corrosion Test, MPT Test, Microstructure.

Packing & Delivery

Our products are all packed in wooden cases to ensure zero damage. If customers have specific requirements for the packaging, we will gladly accommodate. The products will be sent to you within 30 days and we will arrange everything from the initial consultation to the delivery of your chosen port anywhere the world.

Exhibition & Events

Complex Thin-walled Stainless Steel Impeller for Investment Casting Process
