| Categories | Mesh Module |
|---|---|
| Brand Name: | IWAVE |
| Model Number: | FD-6100 |
| Certification: | CE/MIC |
| Place of Origin: | CHINA |
| MOQ: | 2 |
| Price: | Negotiable |
| Payment Terms: | L/C,D/P,T/T |
| Supply Ability: | 1000Pcs/Month |
| Delivery Time: | 3-5working days |
| Packaging Details: | Standard carton box |
| Encryption: | 128-bit AES |
| Network: | Mesh, Point-to-Multipoint, Point-to-Point |
| Data Rate: | 30Mbps(Uplink+Downlink) |
| Range: | 10km(Air to ground) |
| Output Power: | 25dBm |
| Latency: | 15-25ms |
| Modulation: | QPSK, 16QAM, 64QAM |
| Bandwidth: | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz |
| Company Info. |
| IWAVE COMMUNICATIONS CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

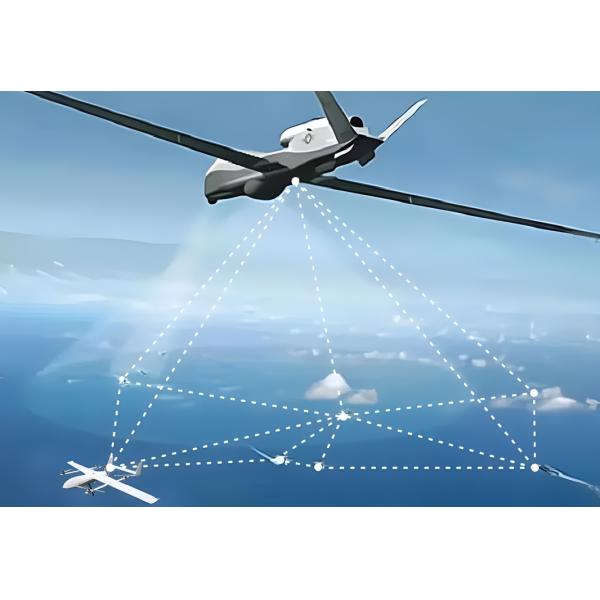

The FD-6100 is an advanced MESH self-organizing network device designed for efficient data transmission. Here are its key features and applications:
Highly Integrated MESH Network: Provides automatic networking and routing, ensuring seamless connectivity.
Adaptive Technologies: Implements automatic frequency modulation, healing, and anti-jamming, enhancing reliability.
Low Power Consumption: Its compact size makes it suitable for various applications without excessive energy use.
Broadband Support: Utilizes OFDM and MIMO technologies, supporting multiple bandwidths (3MHz, 5MHz, 10MHz, 20MHz).
Robust Architecture: Flat system design minimizes delays and maximizes transmission capacity, enabling long distances and high data throughput.
Industrial Production: Ideal for monitoring and controlling production processes.
Emergency Communication: Provides reliable communication in critical situations.
Image Transmission: Efficiently handles the transmission of images and video.
Driverless Technology: Supports the communication needs of autonomous vehicles.
Video Surveillance: Ensures secure and stable video transmission for surveillance systems.
The FD-6100 leverages mature SOC chipsets and adheres to the TD-LTE wireless communication standard, establishing a MESH Ad-Hoc network that operates independently of public networks. Its design and technology make it a versatile solution for various industries.
| GENERAL | ||
|---|---|---|
| TECHNOLOGY | MESH base on TD-LTE Wireless technology standard | |
| ENCRYPTION | ZUC/SNOW3G/AES(128) OptionalLayer-2 | |
| DATA RATE | 30Mbps(Uplink and Downlink) | |
| RANGE | 10km(Air to ground)500m-3km(NLOS Ground to ground) | |
| CAPACITY | 8 nodes | |
| POWER | 23dBm±2 (2w or 10w on request) | |
| LATENCY | One Hop Transmission≤30ms | |
| MODULATION | QPSK, 16QAM, 64QAM | |
| ANTI-JAM | Automatically Cross-Band frequency hopping | |
| BANDWIDTH | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz | |
| POWER CONSUMPTION | 5Watts | |
| POWER INPUT | DC12V | |
| SENSITIVITY | ||
|---|---|---|
| 2.4GHZ | 20MHZ | -99dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| FREQUENCY BAND | ||
|---|---|---|
| 2.4Ghz | 2401.5-2481.5 MHz | |
| 1.4Ghz | 1427.9-1447.9MHz | |
| 800Mhz | 806-826 MHz | |
| COMUART | ||
|---|---|---|
| Electrical Level | 2.85V voltage domain and compatible with 3V/3.3V level | |
| Control Data | TTL mode | |
| Baud rate | 115200bps | |
| Transmission Mode | Pass-through mode | |
| Priority level | Higher priority than the network portWhen the signal transmission is crowed, the control data will be transmitted in priority | |
| Note:1. The data transmitting and receiving is broadcast in the
network. After successful networking, each FD-6100 node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you need todefine the format yourself | ||
| MECHANICAL | ||
|---|---|---|
| Temperature | -40degrees Celsius~+80degrees Celsius | |
| Weight | 50grams | |
| Dimension | 7.8*10.8*2cm | |
| Stability | MTBF≥10000hr | |
| INTERFACES | ||
|---|---|---|
| RF | 2 x SMA | |
| ETHERNET | 1xEthernet | |
| COMUART | 1x COMUART | |
| POWER | DC INPUT | |
| INDICATOR | Tri-COLOR LED | |
|
