50km Drone IP MESH Video Downlink

Introduction

FD-615MT build a no center, self-forming, self-adapting and self-healing dynamic routing/automatic relay communication mesh network. It achieves dynamic routing, multihop relay HD video, multi-channel data and fidelity voice between different nodes of the same network in complex applications, such as fast movement and non-line-of-sight environmental distance.

Smart antenna MIMO and self-forming packet wireless mesh network AD-HOC/MESH, which make FD-615MT provide real-time HD video and broadband Ethernet connection with 30Mbps transmission rate and distance of 100km-150km or more. It Is speical for wireless communication in critical private networks.

Key Features of 50km Drone IP MESH Video Downlink

Bandwidth 1.4Mhz/3Mhz/5Mhz/10Mhz/20Mhz
10Watts transmitting rf power
Light weight: 190g
Power consumption: 30watts
IP MESH Node: 8
Support 800Mhz/1.4Ghz(1420-1530Mhz) freqeuncy options
Air to ground 50km range
NLOS 3km-10km ground to ground distance
Automatic power control
Automatic frequency point control
Ethernet communication for video living streaming based IP
Full duplex RS232/TTL communication for flight control

Application

Logistics and Delivery

Package Delivery: Drones are increasingly being used to deliver small packages, especially in remote or hard-to-reach areas.

Disaster Relief

Rescue Operations: Drones can be used to locate trapped individuals in disaster zones, such as earthquakes, floods, and avalanches.
Assessment and Mapping: They can provide real-time imagery and data to assess damage and plan relief efforts.
Aid Delivery: Drones can deliver food, water, and medical supplies to affected areas.

Infrastructure Inspection

Power Line Inspection: Drones can inspect power lines, transmission towers, and substations for damage and maintenance needs.
Pipeline Monitoring: They can monitor oil and gas pipelines for leaks and other issues.
Bridge and Building Inspection: Drones are used to inspect bridges, buildings, and other structures for safety and structural integrity.

Specification

SENSITIVITY
1.4GHZ	20MHZ	-100dBm
	10MHZ	-103dBm
	5MHZ	-104dBm
	3MHZ	-106dBm
800MHZ	20MHZ	-100dBm
	10MHZ	-103dBm
	5MHZ	-104dBm
	3MHZ	-106dBm

General		Mechanical
Technology	MESH based on TD-LTE Technology Standard	Temperature	-20° to +55°C
Encryption	ZUC/SNOW3G/AES (128/256) OptionalLayer-2 Encryption	Temperature	-20° to +55°C
Data Rate	30Mbps (Uplink downlink)	Dimension	1167017mm
Sensitivity	10MHz/-103dBm	Weight	190g
Range	50km (Air to ground) NLSO 3km-10km(Ground to ground)(Depends on the actual environment)	Material	Silver Anodized Aluminum
Node	8 nodes	Mounting	Vehicle-mounted/Onboard
Modulation	QPSK, 16QAM, 64QAM
MIMO	2x2 MIMO	Power
Anti-jamming	Automatically frequency hopping
RF Power	10watts	Voltage Input	DC 24V±10%
Latency	One Hop Transmission≤30ms	Power Consumption	30watts
Frequency		Interafce
1.4Ghz	1420-1530MHz	RF	2 x SMA
800Mhz	806-826 MHz	Ethernet	1xJ30
Note: The frequency band supports customized		Power Input	1 x J30
		TTL Data	1xJ30
		Debug	1xJ30

Comuart
Electrical Level	3.3V and compatible with 2.85V
Control Data	TTL
Baud rate	115200bps
Transmission Mode	Pass-through mode
Priority Level	Higher priority than the network portWhen the signal transmission is crowed, the control data will be transmitted in priority
Note:1. The data transmitting and receiving is broadcast in the network. After successful networking, FD-615MT node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you can define the format.

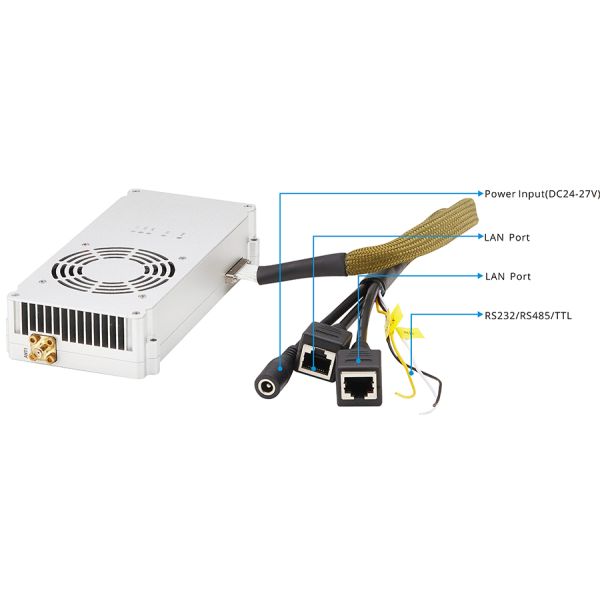

Interface Definition

æÅ½¥å £.jpg

Product Tags:


*From:	Your email address is incorrect!
*To:	IWAVE COMMUNICATIONS CO.,LTD
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Drone Video Transmitter
Brand Name:	IWAVE
Model Number:	FD-615MT
Certification:	CE, MIC
Place of Origin:	China
MOQ:	2units
Price:	Negotiable
Payment Terms:	L/C,D/P,T/T
Supply Ability:	500000/month
Delivery Time:	5-8work days
Packaging Details:	Standard Carton Box
Name:	50km Drone IP MESH Video Downlink
Encryption:	AES128
Anti-jamming:	FHSS
Data Rate:	30Mbps
Node:	8 nodes
Weight:	190g
Latency:	15-30ms
Dimension:	1167017mm
