4G LTE Portable Emergency Command System 50Mbps / 100Mbps Data Rate

4G LTE Portable Emergency Command System
Introduction

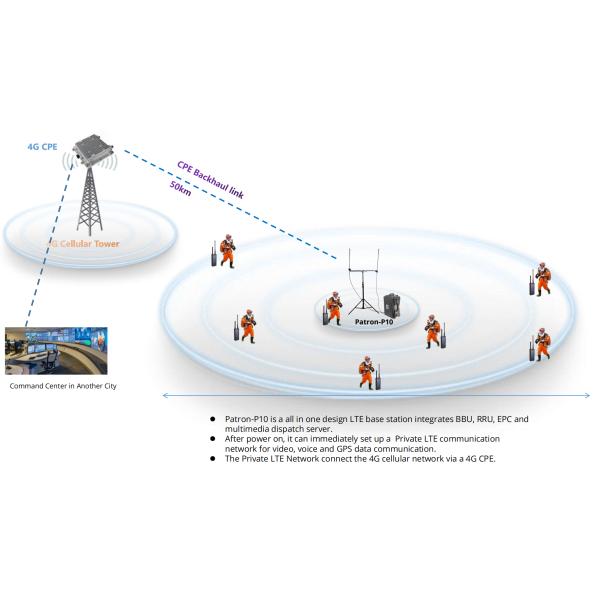

The Patron-P10 is a portable emergency command system designed to enable fast deployment and seamless communication during emergencies. By integrating the baseband processing unit (BBU), Remote Radio Unit (RRU), Evolved Packet Core (EPC), and multimedia dispatch functionalities, it allows first responders to quickly establish real-time communication with the command center through HD video and clear voice, anytime and anywhere.

Key Features of 4G LTE Portable Emergency Command System

Rapid Deployment: The system's easy assembly process significantly reduces network setup time, enabling swift response in critical situations.

Multimedia Dispatch: Supports real-time HD video and high-quality voice communication, essential for effective coordination during emergencies.

Flexible Backhaul Options: Compatible with a variety of backhaul modes, including satellite, mesh, optical fiber, microwave, and public networks, ensuring reliable connectivity in diverse environments.

Wide Application: Commonly used in emergency sectors such as forest fire protection, disaster rescue (e.g., earthquake response), production safety, and covering government affairs network blind spots.

Portable and Robust: Designed for portability, the system can be rapidly deployed in locations with limited or no existing communication infrastructure.

Common Use Cases:

Forest Fire Protection: Enables firefighting teams to communicate effectively with real-time video and voice, improving coordination.
Earthquake Disaster Rescue: Provides emergency teams with fast and reliable communication in affected areas to improve rescue efforts.
Production Safety: Facilitates communication in industrial environments, supporting real-time monitoring and quick responses to safety concerns.
Government Affairs: Ensures connectivity in remote or underserved areas, supporting administrative and emergency functions.

Specifications

Model	Patron-P10
Frequency	400Mhz: 400Mhz-430Mhz 600Mhz: 566Mhz-626Mhz, 626Mhz-678Mhz 1.4Ghz: 1477Mhz-1467Mhz 1.8Ghz: 1785Mhz-1805Mhz Bands from 400MHz to 6GHz available
Channel Bandwidth	5Mhz/10Mhz/20Mhz
Technology	TD-LTE
Time Slot Ratio	Support 1:3, 2:2, 3:1
Transmitted Power	≤30W
Number of Paths	2 paths, 2T2R
UL/DL Date Rate	50/100Mbps
Transmission Port	IP Ethernet Port
Clock Synchronization Mode	GPS
System Throughput	1Gbps
Time Delay	<300ms
Max. User Number	1000
Max. Online Call Number	200
Power Supply	Internal Battery: 4-6 Hours
Operating Temperature	-40°C~+60°C
Storage Temperature	-50°C~+70°C
Air Pressure Range	70~106 kPa
Dust and Water Resistance	IP65
Weight	<25kg
Dimension	*580440285mm*

Product Tags:


*From:	Your email address is incorrect!
*To:	IWAVE COMMUNICATIONS CO.,LTD
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Private LTE Network
Brand Name:	IWAVE
Model Number:	Patron-P10
Certification:	CE, MIC
Place of Origin:	China
MOQ:	1unit
Price:	Negotiable
Payment Terms:	L/C,D/P,T/T
Supply Ability:	50units/month
Delivery Time:	10-20work days
Packaging Details:	Standard Carton Box
Name:	4G LTE Portable Emergency Command System
Number of Paths:	2 paths, 2T2R
Bandwidth:	5Mhz/10Mhz/20Mhz
Users:	120
Technology:	TD-LTE
Data Rate:	50/100Mbps
Weight:	25kg
IP Grade:	IP65
