Plate Type Digital Flexo Polymer Plate Image Making Machine Gauges 0.14mm-2.84mm

Categories CTP Plate Machine
Brand Name: EcooGraphix
Model Number: FL800
Certification: ISO, CE
Place of Origin: China
MOQ: 1set
Price: $40000 per set FOB
Payment Terms: T/T
Supply Ability: 100 sets per year
Delivery Time: 30 DAYS
Packaging Details: wooden case
Model: FL800
Machine type: Polymer plate imagesetter
Max. output area: 790mm*690mm
Plate type: digital flexo polymer plate
Plate gauges: 0.14mm-2.84mm
Application: label and trade mark printing
Speed: max. 2.5 sqm per hour
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Plate Type Digital Flexo Polymer Plate Image Making Machine Gauges 0.14mm-2.84mm

31"*27" Digital flexo polymer plate image making Thermal CTP machine-FL800+FP800


Performance and Specifications of Machines:

  • Flexo CTP machine –small format
ModelFL-800EFL800M
Exposing MothodExternal Drum
Imaging System16-channel32-challel
Throughput1.25 sqm/hour2.5 sqm/hour
Plate SizesMax.800mm x 660mm
Exposing SizeMax.790mm x 690mm
Media TypeHeat corrosive film, digital relief printing plate(water-wash), digital flexo plate(water wash), digital flexo plate (solvent-based)
Plate Thickness0.14mm to 2.84mm
Resolution4000dpi
Repeatablity±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23℃ and humidity of 60%)
InterfaceUSB 2.0
Plate LoadingManual load and unload
Net Weight640kg
Machine Size
(WxLxH)mm
1610x 910 x 980mm
Power Supply220v/50hz, 60hz, mainframe 1.5kw+vacuum2.0kw
Operation
Environment
recommended:18-30℃, Max.18-26℃, humidity:10-80%

Application; Label, logo printing and publishing solutions;

Perfect rendering of details, comparable to offset printing quality;

Average laser life of 10,000 hours.

Technical Features

l Drum auto balance: Auto balance system of drums takes no more than 5 seconds to adjust the drum balance block to a position,ensure the drum stable in high speed rotation.

l Auto switch of laser channel: When any laser channel breaks down,laser channel auto switch system can continue outputting through the widest consecutive channel that remains working to maximize production.

l Linear motor: More accurate,more simple,and more reliable.

l Autofocus: Keep accurate focus constantly to ensure sharp dot.

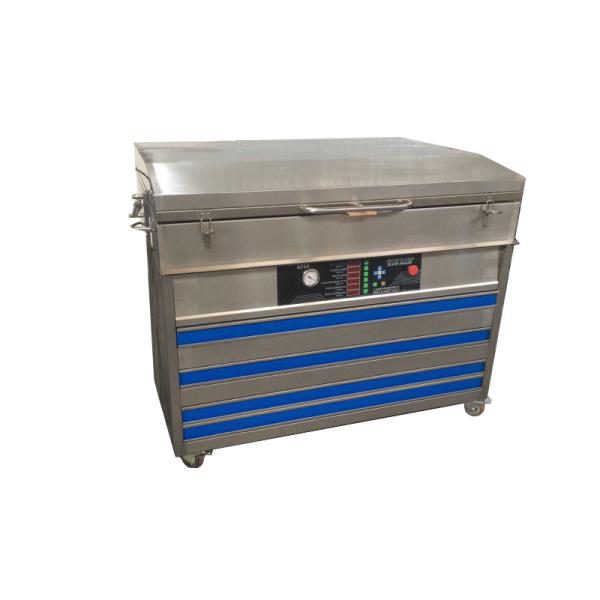

  • Flexo plate processing AIO machine(AIO, All in one model)
ModelFP 800
Page sizeMax. 800mm*1200mm
LightUV lamp, wavelength 350-450nm
Net Weight235kg
Machine Size
(WxLxH)mm
1100x1380x1000mm
Power Supplysingle phase:220V, 50 Hz, power Consumption:4.8KW

Features:
AIO design, save space, suitable for small format Flexo CTP machine.
MPU central control panel makes operation easy.
Adopt imported UV Lamps and electronic ballast.
Strong vacuum device and sucking air plate.
Circle thermostatic air drying device assures.
Accurate and stable re-productivity of the original colors and graphics.

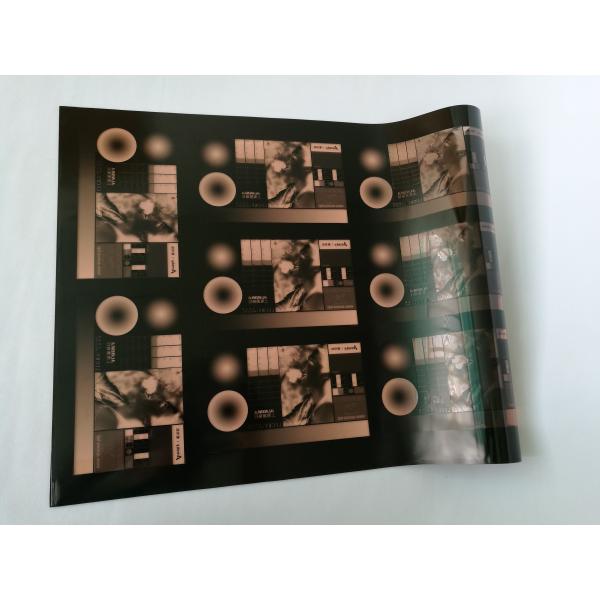

3. Digital flexo plate

Technical datas


plate modelsThickness (MM)HardnessImage reproductionMininum Positive line width (mm)Min, isolated dot size (um)Max. relief Depth(mm)
ECOO-DF114114751-99%,60L/cm0.11000.5-0.6
ECOO-DF17017063-731-98%,60L/cm0.11000.5-0.7
ECOO-DF228228601-99%,50L/cm0.081300.45-0.6
ECOO-DF28428440+-22-95%,48L/cm0.1752500.8-2.0
ECOO-DF394394383-95%,36L/cm0.175-0.255001-1.5
