High Speed Fully Automatic Thermal Film Laminator

Categories Automatic Flute Laminator
Brand Name: EcooGraphix
Model Number: ECOO YFMA-540
Certification: ISO9000, CE
Place of Origin: China
MOQ: 1 Set
Payment Terms: L/C,T/T,Western Union
Supply Ability: 500 Sets/year
Delivery Time: 45 Days
Price: Negotiable
Packaging Details: Standard export packing
Machine Classification: Automatic laminator
Max. Sheet(WxL): 540*760mm
Min. Sheet(WxL): 210*270mm
Machine Speed: Max. 30m/min
Paper Thickness: 157~400g/m2
Voltage: 380V
Laminating Temperature: 80-110 Degree celsius
Power Required: 17kw
N.W.: 2000kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

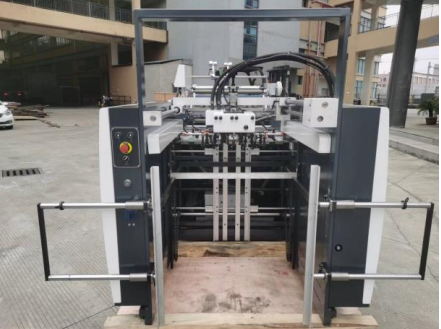

High Speed Fully Automatic Thermal Film Laminator


High Speed Fully Automatic Thermal Film Laminator







*1 Main Components


SeriesAccessory NameBrandNote
1Pressure rubber rollerJingyangJingYangTaiwan
2feeder
RUNOffset feeder
3BearingHarbin

4Vacuum pumpShanghai Mengxu

5chainHangzhou

6Pneumatic clutchTaiwan
Taiwan
7Servo motorInovance
Shenzhen
8Server driverInovance
Shenzhen
9Oil hydraulic pumpZhejiang

10electromagnetic heating
Shenzhen
11Touch screenWeiluntong

12Pneumatic partsAirtac
Taiwan
13ButtonOMRONOMRONJapan
14Contactor.relaySchneider
France
15SensorPanasoni c
Japan
16Proximity switchPanasoni c
Japan
17Temperature controllerOMRONOMRONJapan
18Photoelectric switchPanasoni c
Japan
19PLCDelta
Taiwan
20Frequency converterDelta
Taiwan



























*2 Specifictions



Film Laminating Machine
Model
ECOO YFMA-540
Max. Sheet(WxL)
540*760mm
Min. Sheet(WxL)
210*270mm
Machine Speed
Max. 30m/min
Paper Thickness
157~400g/m2
Voltage
380V
Laminating Temperature
80-110ºC
Power Required
17kw
Dimension(LxWxH)
3000*1450*1650mm
N.W.
2000kg


Film Laminating Machine
ModelECOO YFMA-540
Max. Sheet(WxL)540*760mm
Min. Sheet(WxL)210*270mm
Machine SpeedMax. 30m/min
Paper Thickness157~400g/m2
Voltage380V
Laminating Temperature80-110ºC
Power Required17kw
Dimension(LxWxH)3000*1450*1650mm
N.W.2000kg




*3 Introductions



Automatic laminating machine is a kind of printed matter that processes and coats the plastic film on the paper through the machine. This is widely used in people's daily life and can be described as ubiquitous. In the past, the traditional laminating machine had low work efficiency and high labor cost. Now people have invented a fully automatic laminating machine, which uses modern advanced laminating technology to automate paper feeding and paper cutting, which greatly improves the production efficiency, reducing the cost of labor input.

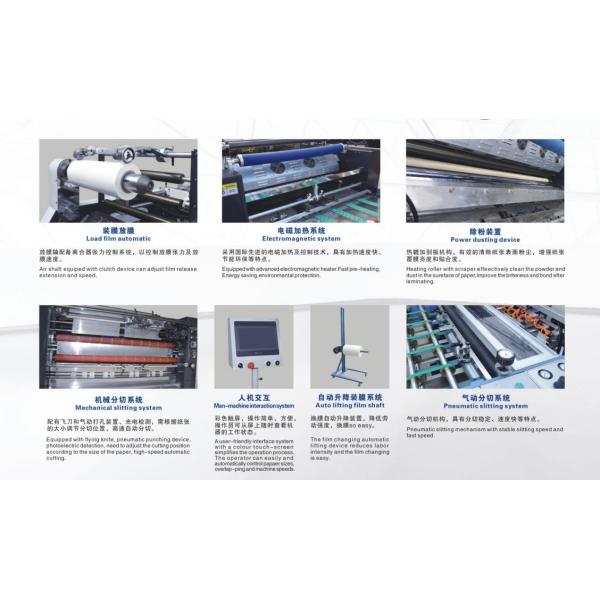

*4 Functions



YFMA-540 fully automatic laminating machine as a professional equipment used for plastic film laminating on the surface of paper printer matter.
1] Thermal laminating (pre-coated/thermal film)
2] Film: OPP, PET, PVC, METALIC, etc.








*5 Application



Widely applicable for laminating in packaging, paper box, books, magazines, calendars, carton, handbags, Gift box, Wine packaging paper improving the printing matter grades, and achieve the purpose of dust-proof, water-proof, oil proof. It's the best choice for printing and laminating enterprises of all scales.








*6 Producing And Packaging



From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.











*7 Certificates










*8 FAQ



Q1: What are your main products ?


A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.


You can get the equipment and consumables all in one and no worry about the after-sales service from our company.




Q2: Where is your factory ?


A: Our CTP processor machine factory is in Shanghai, you are warmly welcome to visit our factory!




Q3: How long is the lead time ?


A: The lead time is normally 30 days. We can accelerate for emergency cases.




Q4: Is there any certification for your machine ?


A: Yes, all our machines have been certified by SGS and CE.




Q5: How long is the warranty period ?


A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts.




Q6: What is your normal payment term ?


A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.




Q7: What about the training content ?


A: All machines have been finished all adjustment and test in NEW STAR workshop before delivery, the mechanical structure, components adjustment, electrical operation of the switch, and the matters needing attention, day-to-day maintenance of equipment, etc., In order to ensure the normal operation of equipment later.
