| Categories | Multi Stage Integrally Geared Pumps |
|---|---|
| Brand Name: | Sunstrand |
| Model Number: | HMP7000 |
| Certification: | IOS9001/IOS9002/CUTR |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 10set/month |
| Delivery Time: | 60 days |
| Packaging Details: | Wooden Case |
| Max Flow: | 410M³/H |
| Max Head: | 4420 m |
| Max Suction Pressure: | 10MPa |
| Max Motor Power: | 3000KW |
| Operating Temperature: | -130~+340°C |
| RPM: | Up To 5500-22000 |
| Max Operating Pressure: | 45.0MPa |
| Gearbox Construction Form: | Single Stage |
| Company Info. |
| Sunstrand Fluid Handling Co., Ltd.(China) |
| Verified Supplier |
| View Contact Details |
| Product List |
HMP7000 series are integral gear driven multi-stage heavy high speed centrifugal pumps, providing small flow and high head applications. These pumps can be provided with three pump heads, which can be operated in tandem or in parallel according to the demand of flow and head range.

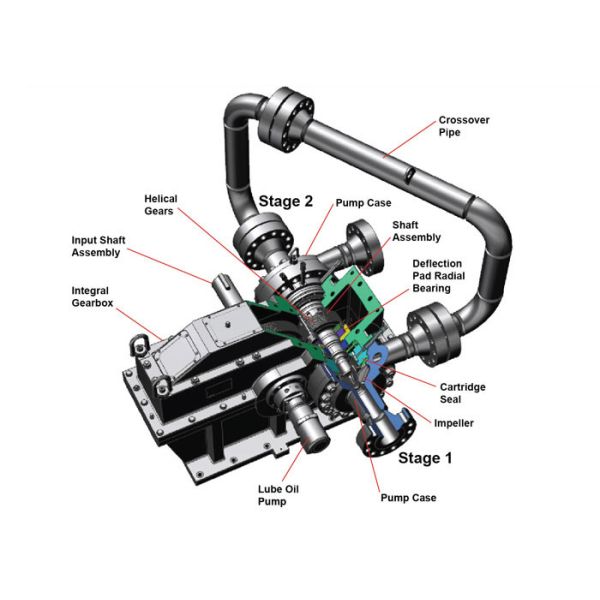

Two-stage or three-stage cantilever type integral gear centrifugal high speed pump, in line with API610-ISO13709 standard.

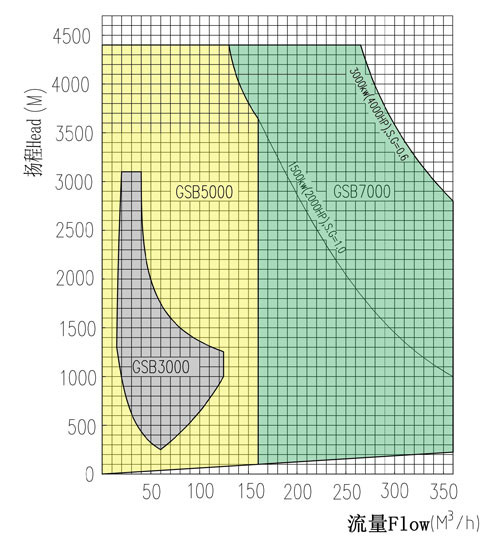

| Max. Flow (m³/h) | 410 |
| Max. Head (m) | 4420 |
| Max. Suction Pressure (MPa) | 10 |
| Max. Working Pressure (MPa) | 45 |
| Max. Motor Power (kW) | 3000 |
| Temperature Range (°C) | -130 to +340 |
| Speed Range (rpm) | 5500-22000 |
| Gearbox Type | Single Stage |
| Standards | API 610 |
| API Plans | 11, 12, 13, 21, 23, 31, 32, 41, 52, 53, 54, 61, 62, J |
| Applications | Feed pumps, Booster pumps, Bottoms pumps, Wash water pumps, Condensate pumps |

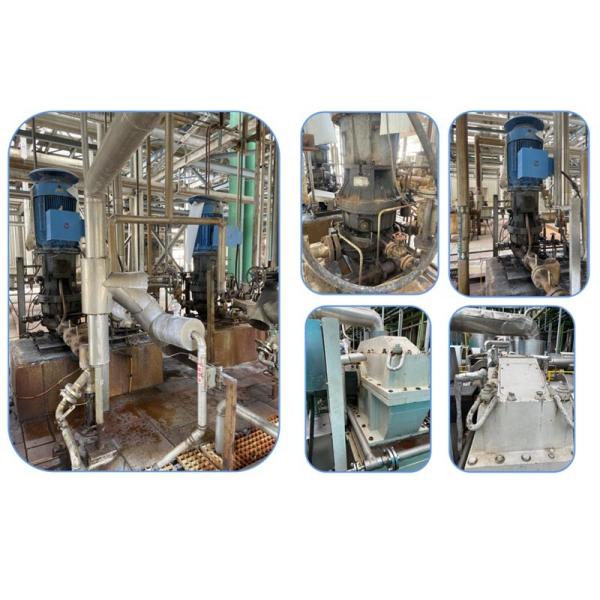

The vertical configuration of the integrally geared line of pumps is specifically designed to save valuable space in refineries, NGL production, petrochemical and chemical plants.
This pump is ideal for applications that require high flow rate, high pressure, and high head. Its high-speed operation makes it suitable for use in high-speed centrifugal compressors and pumps, and its durable construction ensures it can handle various fluids and environments.
