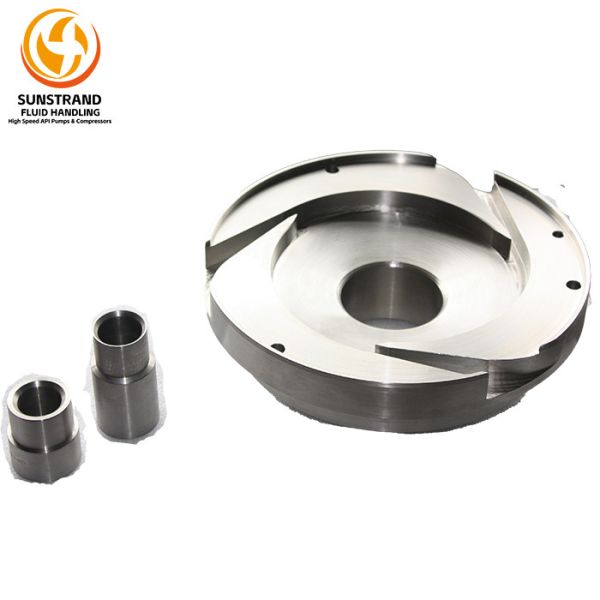

High Speed Centrifugal Pump Diffuser Replacement Spare Parts

Investment cast and CNC-machined to exacting geometric tolerances, this High Speed Centrifugal Pump Diffuser Replacement Spare Parts is engineered to replicate the original equipment vane geometry, diffuser throat area, and return channel profiles essential for maintaining the designed hydraulic performance of Sundyne high-speed centrifugal pumps. Each diffuser undergoes comprehensive dimensional verification using coordinate measuring machine (CMM) inspection at multiple radial stations to confirm vane inlet and outlet angles, throat dimensions, and mounting interface geometry against OEM reference specifications. With over 600 diffuser sets delivered to chemical processing, refinery, and gas plant operators since 2012, our replacement diffuser program combines precision manufacturing with documented quality assurance to meet the expectations of rotating equipment reliability engineers.
Technical Specifications
ParameterSpecification
Product TypeDiffuser
Compatible Pump SeriesSundyne LMV / LMC Series
MaterialAlloy Steel
Manufacturing MethodInvestment Casting + CNC Machining
InspectionCMM Dimensional, Liquid Penetrant (PT), Visual
Hydraulic PerformanceWithin ±2% of OEM Specifications
Quality CertificationEN 10204 Type 3.1, Dimensional Report
PackagingVCI Anti-Corrosion, Export-Grade Protective Case
Key Advantages
Precision Vane Geometry: Diffuser vane inlet and outlet angles verified by CMM inspection at multiple radial stations against OEM reference data, ensuring hydraulic performance within ±2% of original equipment specifications and maintaining the pump's established head-capacity curve.
Certified Material Quality: Investment castings produced from certified material heats with EN 10204 Type 3.1 documentation, and all flow passage surfaces undergo liquid penetrant examination for defect-free assurance.
Full Dimensional Verification: Critical mounting dimensions—including diffuser outer diameter, throat area, and bolt circle geometry—are verified against OEM reference specifications before shipment, guaranteeing drop-in compatibility with existing pump casings.
Field-Validated Performance: Replacement diffusers have been successfully installed across chemical, refinery, and gas processing facilities with confirmed hydraulic performance matching original equipment specifications, documented through post-installation pump performance testing.
Frequently Asked Questions
Q: Will this replacement diffuser maintain my pump's original hydraulic performance?
A: Yes. Each diffuser is investment cast and CNC-machined to replicate the original vane geometry and throat area. CMM-verified vane angles at multiple stations and field performance data from installations confirm hydraulic performance within ±2% of original specifications, ensuring the pump's head-capacity curve remains unchanged.
Q: What quality inspections are performed on each diffuser?
A: CMM dimensional inspection of vane geometry at multiple radial stations, liquid penetrant examination of all flow passage surfaces per ASME Section V, and visual inspection at 10x magnification. Material certification (EN 10204 Type 3.1) and complete inspection reports are provided with each shipment.
