1200mm Roll Length Two Roll Rubber Mixing Mill with CE Standard

Categories Rubber Open Mixing Mill
Diameter of Roll(mm): 450 mm
Length of Roll(mm): 1200 mm
Roll Ratio(Front/Back): 1.27
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Gearbox, Motor, Gear
Cooling Mode: water
Condition: New
Place of Origin: China
Brand Name: Mixer
Voltage: 380V,220V,440V,480V
Dimension(L*W*H): 5570x1900X1750mm
Warranty: 1 Year
Key Selling Points: Long Service Life
Power (kW): 55
Weight (KG): 11500 KG
Applicable Industries: Manufacturing Plant
Showroom Location: Turkey
Type: Open Mixing Mill
After-sales Service Provided: Engineers available to service machinery overseas, Field maintenance and repair service, Video technical support, Field installation, commissioning and training, Online support
Application: rubber mixing
Power(W): 55KW
Weight: 11500
Marketing Type: Ordinary Product
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Malaysia, Turkey
Certification: CE
Packaging Details: film wrap into container
Port: Shanghai
Supply Ability: 60DAYS
Price: $20,000.00 - $40,000.00/sets
MOQ: 1set
Delivery Time: 60days
Payment Terms: T/T
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

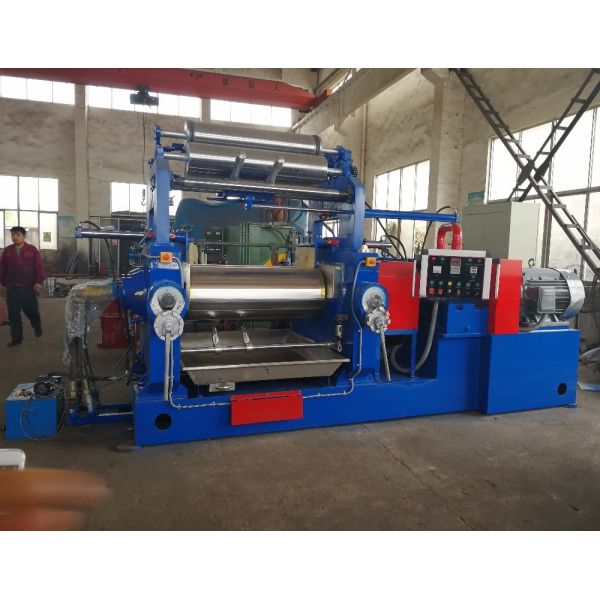

1200mm Roll Length Two Roll Rubber Mixing Mill with CE Standard


Product Description

Rubber Open Mixing Mill is used for rubber&plastic mixing,sheeting.

Features:
· Tailored structure,stable performance, easy to operate.
· There are varied speeds and fraction ratios available, which can satisfy most customers’ formula and processing requirements.
· Frame, frame cap and base, looking very nice, are welded and treated by annealing for stress relieving.
· Chilled alloy cast iron roll is abrasion resistant with long service life.
· The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.
· Perfect emergency stop device can ensure the safety of personnel and equipment.
· The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.
· Stock pan is easy to clean up with dislodging device.
· Human nature designed operating system reduces labor intensity.
· Modular structure offers various structures for customers’ option.
· The flexible design system can satisfy customers’ special design requirements within the shortest time.
· A load test running will be made to the assembled equipment in our company to save debugging time for customers.
Technical specification and model:

Model

X(S)K-160

X(S)K -250

X(S)K -360

X(S)K -400

X(S)K -450

X(S)K -550

X(S)K-660

Diameter of rolls

160

250

360

400

450

550

660

Working length of roll

320

620

900

1000

1200

1500

2130

Working speed of front roll

8.95

14.9

17.4

19.3

23.1

28.6

30

Fraction ratio of rolls

1:1.35

1:1.1

1:1.27

1:1.27

1:1.27

1:1.29

1:1.05

Max.gap(mm)

5

8

10

10

10

15

15

Nip regulating mode

Manual

Manual

Manual

Manual or Electric

Manual or Electric

Manual or Electric

Electric

Batch capacity(Kg)

1-2

10-15

20-15

25-35

30-50

50-60

120-140

Motor

Power

5.5

15

30

45

55

90/110

180

Motor speed(r/m)

1440

730

980

740

980

740

740

Reducer

Full closed type hardened gear speed reducer

Reduction ratio

43

35

49.7

38

47.2

35.6

126.2

Overall dimension (mm)

1120x920 X1295

3400x1270 X1620

4140x1770 X1700

4490x1700 X1750

5570x1900 X1750

6290x2330 X1780

7500x 2630x2060

Weight (kg)

1100

4200

7600

9000

11500

20000

26500



Contact Us


Packaging & Shipping

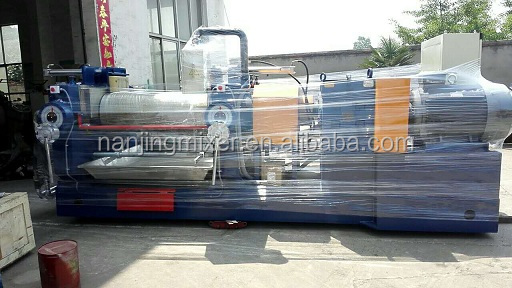

Two Roll Rubber Mixing Mill with CE standardTwo Roll Rubber Mixing Mill with CE standardTwo Roll Rubber Mixing Mill with CE standardTwo Roll Rubber Mixing Mill with CE standard
