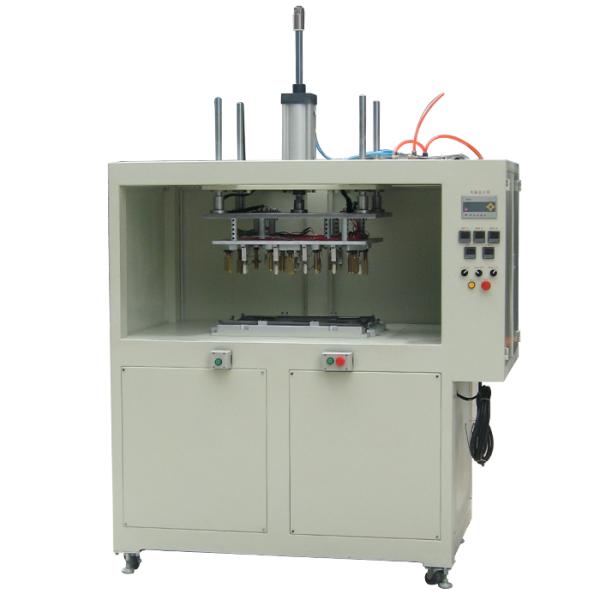

High Working Efficiency 5kW Heat Staking Machine for Plastic Industry Production

This device has been applied to the hot melt riveting of capacitive screen outer frame components,The device adopts the mode of one die and four holes for welding with high efficiency. The total number of riveting points is 36,and the temperature is controlled by region.

The equipment is operated by sitting position. The design of pneumatic sliding table separates the welding area from the feeding area to ensure the absolute safety of operators.

The modular design of the high-power servo screw mechanism improves the working efficiency by 20-50% compared with the pneumatic equipment, with higher control precision and 0.05mm of repeated positioning error.

10 sets of welding programs can be pre-stored, and the data interface can run in tandem with the production line.

Japan MISUSI original heating device. Hot plate temperature control, with self-test, closed-loop control, multi-point independent temperature control, temperature control accuracy up to ±2 degrees.

Equipped with man-machine interface and Chinese and English bilingual interface operation.

Adopt Japan Yaskawa high power servo motor/MISUSI synchronous wheel, synchronous belt/RONGDA bearing.

The cooling system is air-cooled by blowing air.

Production cycle time 25S-35S.

Safety: the machine is equipped with protective grating and scald warning safety baffle.

Permission management: device setting administrator and operator permissions.

The work table height is 750MM.(Operation by Sitting position )

The quipment starting mode: The equipment is started by pushing two starting buttons together with two hands.

The device has the protection function of misoperation(the machine will not work if the machine is not operated according to the standard operation procedures).

Production records:The equipment can meet customer requirements for recording and storage of product capacity.

Alarm failure and code recording:The equipment automatically displays the alarm fault code and records it automatically

Man-machine interface - visual information of man-machine interface includes current operation steps, alarm information and solutions.

IMS interactive function: support Ethernet communication. The equipment has the function of QR Code scanning and identification.The data of hot plate temperature, displacement and time can be recorded and sent to the company's IMS system. (This function is customized according to customer requirements.)

The equipment can be independently equipped with a die changing car. (this item is customized according to customer requirements)

The Clamp of the equipment is fixed by simple, fast and reliable fixing method such as locating pin, without special tools.

The pneumatic part of the clamp and the sensor part of the device are designed with quick plug and pull.

Quick die change time is 10-15 minutes.

The equipment has tooling recognition sensor, which can judge whether the tooling is required for online production. If not, the equipment will alarm.

Locking function: in case of equipment failure or clamp installation error, the product is locked to the corresponding station (it needs to be unlocked by the designated personnel).

Equipment alarm: when the equipment fails, the man-machine interface displays alarm information, and the control system locks the machine.

Control system voltage DC24V.

I/O- each station has a 10% I/O allowance for future expansion.

Equipment demension(L)760MM*(W)880MM*(H)1750MM.

Maximum allowable die size of equipment(L)400MM*(W)300MM*(H)280MM.

Electric power requiement: 3 phases 380V 50Hz(If there are special requirements, customer confirmation is required.).

The outlet pressure of the air compressor: 4Kg/cm2-6Kg/cm2(0.4MPA-0.6MPA).

Adaptable to ambient temperature: -5ºC~40ºC

Adaptalbe to humidity : 20%~80%

The noise of the transmission part shall not exceed 70 db.
