| Categories | Plastic Welding Machine |
|---|---|
| Place of Origin: | Jiangsu, China |
| Brand Name: | HUITAI |
| Condition: | New |
| Voltage: | 380V |
| Frequency: | 50HZ |
| Welding Area: | 300-1500mm |
| Dimensions: | (L)2000MM*(W)1400MM*(H)2100MM |
| Usage: | Ultrasonic Welding Machine, Plastic Welding |
| Warranty: | 1 Year, 1year |
| After-sales Service Provided: | Online support, Video technical support, Online Support |
| Key Selling Points: | Flexible Manufacturing |
| Applicable Industries: | Manufacturing Plant |
| Weight (KG): | 450 KG |
| Power (kW): | 5 |
| Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided |
| Product name: | plastic board welding machine |
| Keyword: | plastic sheet welding machine |
| Application: | Plastic Wedling |
| Function: | PE PP PVC Plastic Welder |
| Type: | Fully Automatic |
| After Warranty Service: | Online Video Technical Support |
| Machine Type: | Automatic Plastic Welding Machine |
| Packaging Details: | plastic board welding machine with Wooden Box |
| Supply Ability: | 100 Set/Sets per Month |
| Price: | $90,000.00/sets 1-19 sets |
Product Description | This equipment has been used for pallet/pallet welding and belongs
to the industry-specific model. |

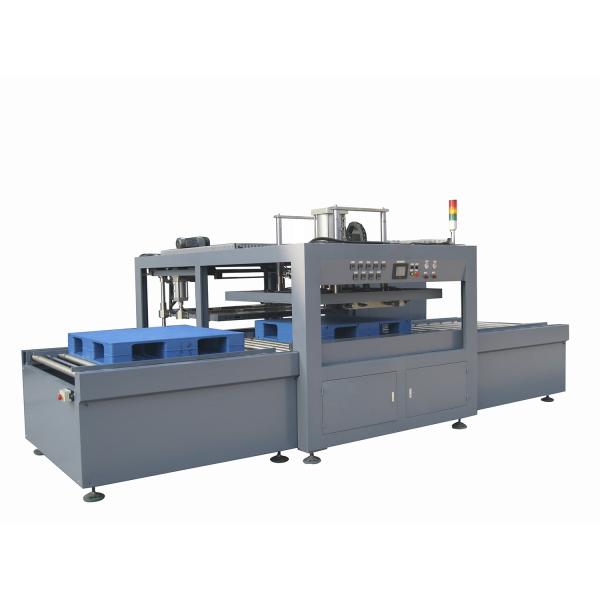

Horizontal hot plate welding machine, double hot plate welding,
horizontal welding is adopted according to the product. Similar
products can be replaced by fixtures. | |
10 sets of welding procedures can be pre-stored, and the data
interface can be linked to the production line | |
MISUMI original heating device. Hot plate head temperature control,
with temperature self-check, closed loop control, multi-point
independent temperature control, temperature control accuracy can
reach ±2 degrees. | |
Equipped with man-machine interface, Chinese and English interface
operation is more intuitive. | |
Adopt SMC cylinder/Rongda bearing. | |
The machine's integral square tube and sheet metal are welded to
strengthen the overall rigidity and make it more stable during
operation. | |
The production cycle is 55S-65S. | |
Man-Machine Engineering | Safety: The equipment is equipped with a protective grating and a
safety baffle for scalding safety warnings. |
Authority management: The device sets the administrator and
operator authority. | |
The height of the working table is 900MM | |
The device is started by two hands. | |
Equipment capability | Indiscriminate operation verification (the device is protected if
it does not follow standard procedures) |
Quality traceability | Production capacity record. |
Alarm fault code and its record. | |
Man-Machine Interface-The visual information of the man-machine
interface includes current operation steps, alarm information and
solutions. | |
IMS interactive function: support Ethernet communication, the
device has a QR code scanning and identification function, the hot
plate temperature, displacement, and hot plate time data can be
recorded and the data needs to be pushed to the company's IMS system. (This function is customized according to customer requirements.) | |
Equipment fixture | The device has the function of adjusting the size, which can be
used in a certain range of sizes. |
Quick die change | The fixture of the equipment adopts simple, fast and reliable
fixing methods such as positioning pins, without special tools. |
The pneumatic part and sensor part of the fixture of the equipment
are designed with quick plug-in. | |
The quick mold change time is 10-15minutes. | |
Electrical layout/Safety | The equipment tool is equipped with sensor recognition, the model
selected by PLC is different from the current fixture, and analarm
is required. |
Locking function-when the product is detecting NG, the product is
locked in this station (requires designated personnel to unlock). | |
Equipment alarms, fault information or corresponding faults are
displayed on the man-machine interface. | |
Control system voltage DC24. | |
I/O- Each station I/O has a 10% margin for future expansion. | |
Technical Parameters | Equipment dimensions:(L)2000MM*(W)1400MM*(H)2100MM. |
Maximum mold capacity of equipment:(L)950MM*(W)850MM*(H)250MM. | |
Power : 3-phase 380V 50Hz, can be customized.. | |
Air source specifications: 4Kg/cm2-6Kg/cm2(0.4MPA-0.6MPA). | |
Adaptable to ambient temperature: : -5ºC~40ºC | |
Adaptable to ambient humidity: 20%~80% | |
The noise of the transmission part does not exceed 70 decibels | |
Total Power:20KW |
|
