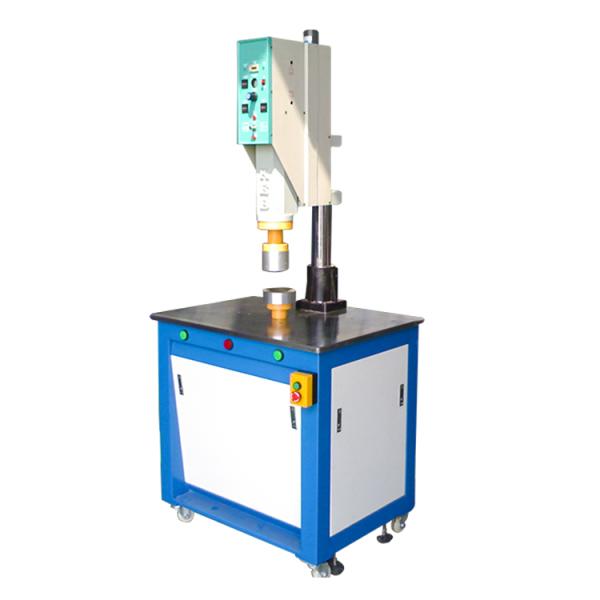

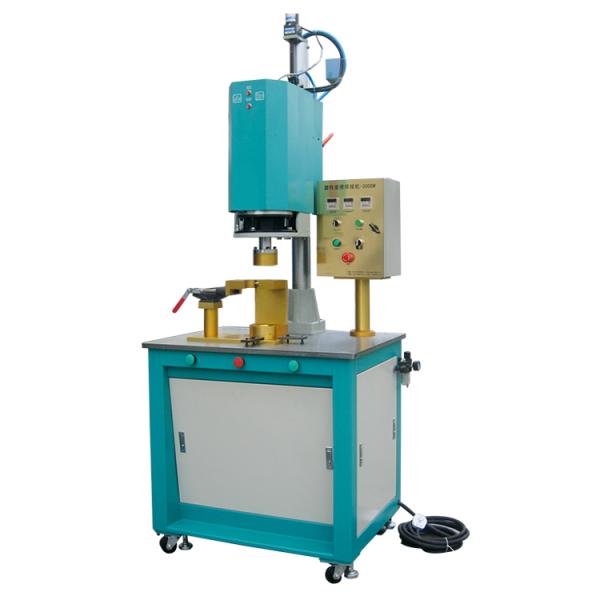

Middle Size Servo Rotary Spin Welding Plastic Welding Machine

This equipment has been applied to filter element welding, standard model.

Modular design of high-power dual-servo rotating mechanism, higher accuracy of angle control, and repeated positioning error of equipment 0.05mm.

10 sets of welding programs can be pre-stored, and the data interface can run in tandem with the production line.

Products of the same type can be replaced by copying fixture to achieve universal.

Japan MISUSI original heating device. Hot plate temperature control, with self-test, closed-loop control, multi-point independent temperature control, temperature control accuracy up to ±2 degrees.

Adopt Japan ANKAWA high power servo motor/MISIMI synchronous wheel, synchronous belt/RONGDA bearing.

Machine integral square tube and sheet metal welding, strengthen the overall rigidity, more stable operation.

Production cycle time 25S-35S.

Safety: the machine is equipped with protective grating and scald warning safety baffle.

Permission management: device setting administrator and operator permissions.

The work table height is 800MM.

The quipment starting mode: The equipment is started by pushing two starting buttons together with two hands.

The device has the protection function of misoperation(the machine will not work if the machine is not operated according to the standard operation procedures).

Production records:The equipment can meet customer requirements for recording and storage of product capacity.

Alarm failure and code recording:The equipment automatically displays the alarm fault code and records it automatically

Man-machine interface - visual information of man-machine interface includes current operation steps, alarm information and solutions.

IMS interactive function: support Ethernet communication. The equipment has the function of QR Code scanning and identification.The data of hot plate temperature, displacement and time can be recorded and sent to the company's IMS system. (This function is customized according to customer requirements.)

Deck mounted tooling, cantilever type man-machine interface, easy to modify and adjust parameters.

The Clamp of the equipment is fixed by simple, fast and reliable fixing method such as locating pin, without special tools.

The pneumatic part of the clamp and the sensor part of the device are designed with quick plug and pull.

Quick die change time is 10-15 minutes.

The equipment has tooling recognition sensor, which can judge whether the tooling is required for online production. If not, the equipment will alarm.

Locking function: in case of equipment failure or clamp installation error, the product is locked to the corresponding station (it needs to be unlocked by the designated personnel).

Equipment alarm: when the equipment fails, the man-machine interface displays alarm information, and the control system locks the machine.

Control system voltage DC24V.

I/O- each station has a 10% I/O allowance for future expansion.

Equipment demension(L)1000MM*(W)800MM*(H)1700MM.

Maximum allowable die size of equipment(L)450MM*(W)300MM*(H)400MM.

Electric power requiement: 3 phases 380V 50Hz(If there are special requirements, customer confirmation is required.).

The outlet pressure of the air compressor: 4Kg/cm2-6Kg/cm2(0.4MPA-0.6MPA).

Adaptable to ambient temperature: -5ºC~40ºC

Adaptalbe to humidity : 20%~80%

The noise of the transmission part shall not exceed 70 db.

Overall Power:3KW
