| Categories | Quick mould change hot plate machine |
|---|---|
| Place of Origin: | Jiangsu, China |
| Brand Name: | HuiTai |
| Condition: | New |
| Voltage: | 380V |
| Frequency: | 50HZ |
| Welding Area: | (L)580MM*(W)300MM*(H)350MM |
| Dimensions: | (L)1200MM*(W)1100MM*(H)2000MM |
| Usage: | Ultrasonic Welding Machine |
| Warranty: | 1 Year |
| After-sales Service Provided: | Online support, Video technical support, 1 Year |
| Key Selling Points: | Flexible Manufacturing |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Weight (KG): | 100 KG |
| Power (kW): | 14 |
| Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided |
| Product name: | welding machine for plastic |
| Application: | Plastic Wedling |
| Function: | PE PP PVC Plastic Welder |
| Keyword: | plastic welding machine |
| Type: | automatic |
| Welding material: | PP HDPE PE PVC EVA |
| Machine Type: | plastic plate making machine |
| For Application Range: | PVC |
| Color: | Customer's Requirement |
| Price: | $10,000.00/sets 1-4 sets |

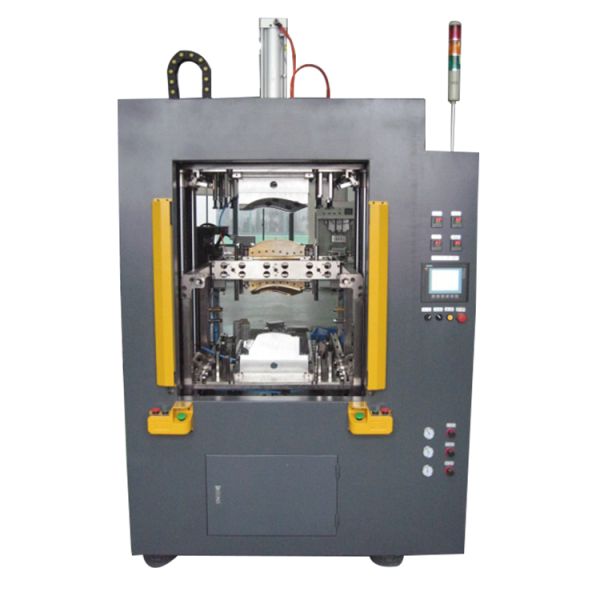

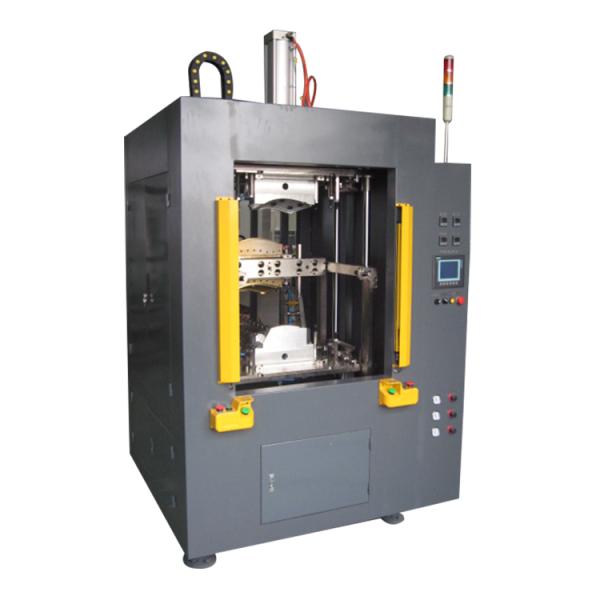

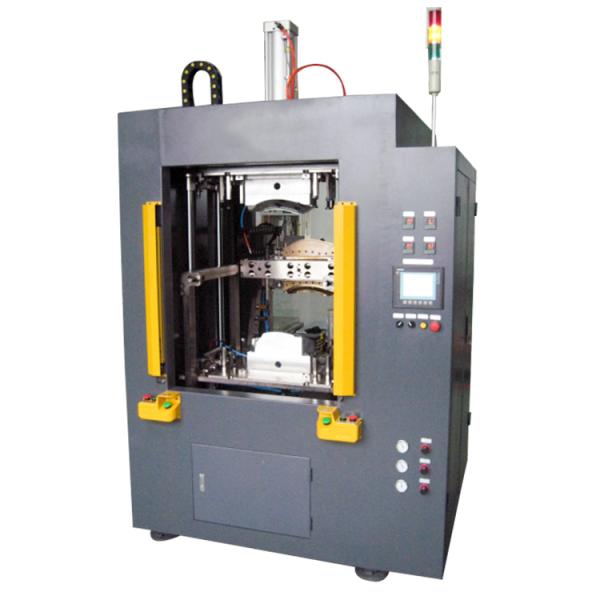

Motor Drive Hot Plate Plastic Welding Machine with Easy, Simple,
Fast Fixture Changing | ||||
Item | Detailed Information | |||
Product Introduction | This equipment has been applied to vacuum cleaner box welding | |||
The modular design of the high-power servo screw mechanism improves
the working efficiency by 20-50% compared with the pneumatic equipment, with higher control precision and 0.05mm of repeated positioning error. | ||||
10 sets of welding programs can be pre-stored, and the data
interface can run in tandem with the production line. | ||||
Japan MISUSI original heating device. Hot plate temperature
control, with self-test, closed-loop control, multi-point
independent temperature control, temperature control accuracy up to ±2 degrees. | ||||
Equipped with man-machine interface and Chinese and English
bilingual interface operation. | ||||
Adopt Japan ANKAWA high power servo motor/MISIMI synchronous wheel,
synchronous belt/RONGDA bearing. | ||||
Machine was designed with integral square tube and metal plate
welding to strengthen the overall rigidity, with more stable operation. | ||||
Production cycle time 25S-35S. | ||||
Equipment Features | Man-Machine Engineering | Safety: the machine is equipped with protective grating and scald
warning safety baffle. | ||
Permission management: device setting administrator and operator
permissions. | ||||
The work table height is 900MM. | ||||
The quipment starting mode: The equipment is started by pushing two
starting buttons together with two hands. | ||||
Equipment capability/Quality traceability | The device has the protection function of misoperation(the machine
will not work if the machine is not operated according to the standard operation procedures). | |||
Production records:The equipment can meet customer requirements for
recording and storage of product capacity. | ||||
Alarm failure and code recording:The equipment automatically
displays the alarm fault code and records it automatically | ||||
Man-machine interface - visual information of man-machine interface
includes current operation steps, alarm information and solutions. | ||||
IMS interactive function: support Ethernet communication. The
equipment has the function of QR Code scanning and identification.
The data of hot plate temperature, displacement and time can be
recorded and sent to the company's IMS system. (This function is
customized according to customer requirements.) | ||||
Equipment Clamp/Quick die change | The equipment can be independently equipped with a die changing
car. (this item is customized according to customer requirements) | |||
The Clamp of the equipment is fixed by simple, fast and reliable
fixing method such as locating pin, without special tools. | ||||
The pneumatic part of the clamp and the sensor part of the device
are designed with quick plug and pull. | ||||
Quick die change time is 10-15 minutes. | ||||
Electrical layout/Safety | The equipment is equipped with sensor identification, and the type
selected by PLC is different from the current fixture, which will
alarm. | |||
Locking function - when the product is testing NG, the product is
locked in the workstation (requires a designated person to unlock). | ||||
Device alarm: fault information or corresponding fault code is
displayed on the man-machine interface. | ||||
Control system voltage DC24V. | ||||
I/O- each station has a 10% I/O allowance for future expansion. | ||||
Technical Parameters | Equipment demension(L)1200MM*(W)1100MM*(H)2000MM. | |||
Maximum allowable die size of equipment(L)580MM*(W)300MM*(H)350MM. | ||||
Electric power requiement: 3 phases 380V 50Hz(If there are special
requirements, customer confirmation is required.). | ||||
The outlet pressure of the air compressor:
4Kg/cm2-6Kg/cm2(0.4MPA-0.6MPA). | ||||
Adaptable to ambient temperature: -5ºC~40ºC | ||||
Adaptalbe to humidity : 20%~80% | ||||
The noise of the transmission part shall not exceed 70 db. | ||||
Overall Power:14KW | ||||
|
