| machinery capacity: | 4000BPH, 8000BPH, Other, 12000BPH, 6000BPH, 400BPH, 20000BPH, 16000BPH, 500BPH, 2000BPH |
| application: | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, daily chemical, auto-care |
| packaging type: | CANS |
| packaging material: | Wood |
| automatic grade: | Semi-automatic |
| driven type: | Pneumatic |
| place of origin: | Hubei, China |
| brand name: | XLD |
| dimension(l*w*h): | 1000*590*1600m*2 sets |
| warranty: | 1 Year |
| key selling points: | Competitive Price |
| filling material: | Other, Water, Oil |
| filling accuracy: | ±0.03Mpa |
| machinery test report: | Provided |
| video outgoing-inspection: | Provided |
| core components: | motor |
| Product name: | Aerosol filling machine |
| Production capacity: | 800-1100cans/hour |
| Liquid volume: | 10-1000ml |
| Gas filling accuracy: | ≤±1% |
| Air source: | 0.75-0.9Mpa |
| Applicable aerosol can diameter: | 35-65 (mm) |
| Applicable aerosol can height: | 70-330mm |
| Machine dimension: | 1170*670*1700mm 220kgs |
| Available valve: | 1"(25.4mm) |
| Gas volume: | 10-750ml |
| Type: | Filling Machine |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works |
| Showroom Location: | None |
| Condition: | New |
| Marketing Type: | New Product 2020 |
| Warranty of core components: | 1 Year |
| Weight: | KG |
| Packaging Details: | Standard wooden case for aerosol filling machine
1600G Bag on valve filling machine for body care, cosmetic spray aerosol filling equipment |
| Port: | Shanghai |
| Supply Ability: | 300 Set/Sets per Month |
| Price: | CN¥14,450.80-43,352.40/sets |

Through liquid filling machine, raw material will be filled into
the inside bag of the can ,and entirely separate from can
body,which prevents the trouble of the can leak due to raw material
corrosion . During using, its valve shall be opened to make
compressed air in the can to force the raw material in the bag out
of the can . When raw material is fully ejected, compressed air in
the can still retains and then be used for repeated filling. Form
of ejected raw material mist is variable by changing the valve
actuator.

Sealing&gas filling capacity | 600-1000cans/hr |
Liquid Filling capacity | 600-1000cans/hour |
Liquid filling volume | Max 250ml |
Filling accuracy | ≤±1% |
Max air consumption | 0.8m3/min at pressure 0.7MPa |
Dimension | 1000*590*1600m*2 sets |
Propellant | N2, Co2, compressed air |

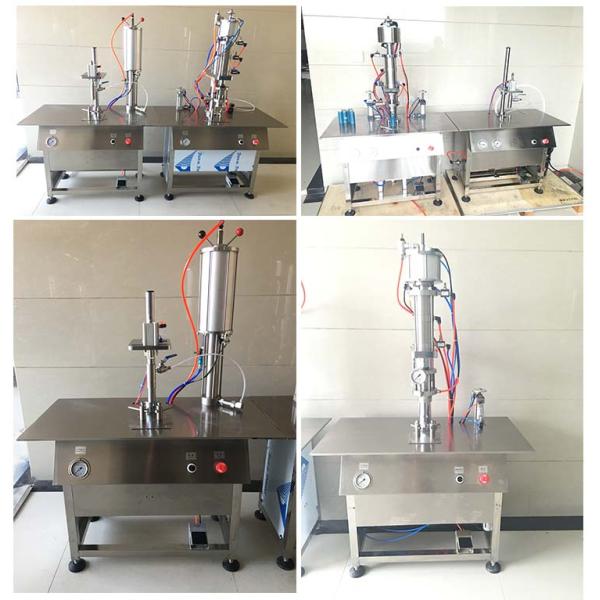

CJXH-1600G Bag on valve Aerosol Filling Machine is applicable for
the packing of water based aerosols, integrates compressed air
filling and capping as well as following raw material filling.





1) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you
are very urgent, please call us or tell us in your email so that we
will regard your inquiry priority.
2) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our
quality. We will provide you sample , as long as you afford the
express freight.
3) What about the leading time for mass production?
Honestly, it depends on the order quantity. Normally, 15 days to 20
days after your deposit if no tooling needed
4) Why don't person reply to me?
A: Our person is 24hours on-line. When nobody reply you , please
leave your requirements on e-mail or chat tool, we will reply you
as soon as possible.
5)Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put
a high value on our reputation. Best quality is our principle all
the time. You can be assured on our production completely.
6)How do you determine the price?
A: We make the price according to our comprehensive costing. And
our price will lower than the trade company because we are
manufacture.You will get competitive price and better quality.
|
