Name: 110V Medical Mask Production Machine with High Speed 3ply Mask Making Equipment in 2023
Brand: RECYCLE
Price: 13 USD

Home > Video Game & Accessories >

110V Medical Mask Production Machine with High Speed 3ply Mask Making Equipment in 2023

Categories	Face Mask Machines
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:	Egypt, Turkey, United Kingdom, United States, Italy, Germany, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, India, Spain, Thailand, South Korea, Chile, UAE, Colombia, South Africa, Ukraine, Japan, Malaysia, Australia, Argentina, Romania, France, Uz
Condition:	New
Automatic Grade:	Full-automatic
Brand Name:	RECYCLE
Voltage:	110V, 220V
Place of Origin:	Henan, China
Power:	8500 W
Dimension(LWH):	4269mm2788mm2022mm
Weight:	950 KG
Warranty:	1 Year
Year:	2023
Production Capacity:	120-140 pcs/min
Key Selling Points:	Easy to Operate
Mask types:	Flat
Mask Material:	Non-woven Fabrics
Technology:	Automation
Capacity:	120-140pcs/min of mask making machine
Name:	Mask Making Machine
Final products:	Disposable Face Masks
Working Process:	Automatic of mask machine
Color:	Silver
Application:	Mask making
Function:	Disposable Non Woven Mask Making Machine
Raw material:	Non-Woven Fabric
Type:	Non-woven Equipment
Packaging Details:	Packed in Wooden Case of 3ply Mask Making Machine Equipment Medical Mask Production Machine.
Port:	Qingdao Port ,Guangzhou Port
Supply Ability:	100 Set/Sets per Month
Price:	$13,500.00/sets >=1 sets

Contact Now

Add to Cart

Company Info.

Henan Recycle Environmental Protection Equipment Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

110V Medical Mask Production Machine with High Speed 3ply Mask Making Equipment in 2023

Technical Parameters

The face mask machine will finish all the processing from the feeding to nose-clip fixing, edge sealing,
cutting the finished products automatically, complete line include 1 set mask making machine and 1 set
automatic ear loop welding machine. With the new generation of mask machine equipment, the number
of cylinders used is reduced, and motors are used instead, so that the failure rate is greatly reduced and
the production efficiency rises linearly.

Model	ZYPK-60
Capacity	120-140pcs/min
Power	8.15KW
Voltage	220V±5%,50/60HZ
Net Weight	1050KG
Mask Layer	2-4Plys
Dimension	4269mm2788mm2022mm
The above parameters and configuration is for reference only, specific configuration by mutual agreement shall prevail.

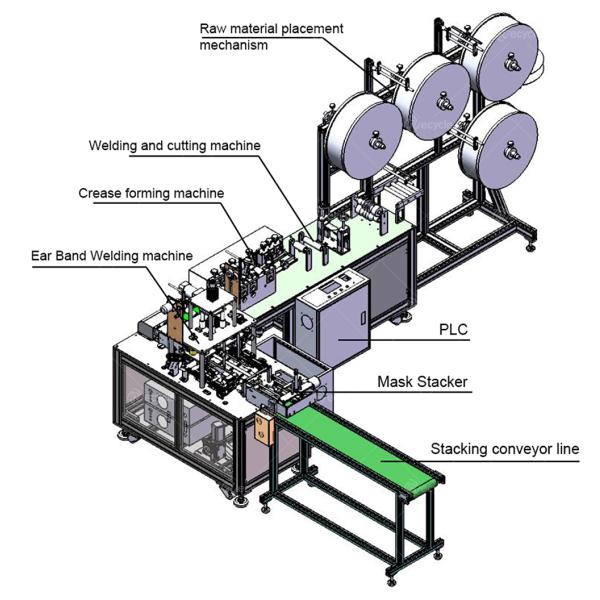

Product Structure

This machine is mainly used for the automatic making of flat masks: the whole roll of fabric is driven by
rollers after unwinding, and the fabric is automatially folded and hemmed; Bridge of nose strip whole roll
traction uroll,cut to length and guide into hemmed fabric. Two sides Ultrasonic welding to the seal, then
ultrasonic 2 ends sealing, cutting and shaping by a cutter; conveying the mask to the two mask ear band
welding stations through an assembly line, and finally forming the mask by ultrasonic welding; when the
mask is made, it is transported to the flat belt line for collection.

INTELLIGENT TOUCH PLC

PLC has three languages to choose
from, Chinese, English and another
language you want to choose.

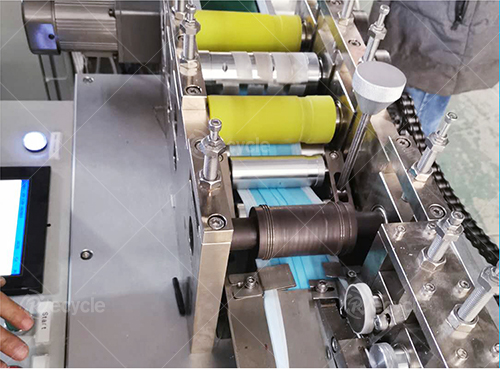

WELDING & CUTTING MACHINE

From fabric, folding, welding to cutting,
the whole blank production process is
fully automatic, and the ultrasonic
welding roller can customize logo.

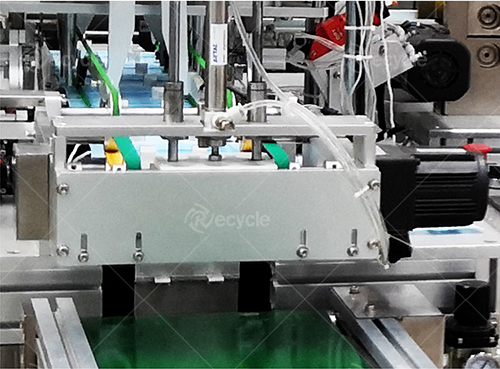

EAR LOOP

WELDING MACHINE

The welding structure of the new ear

strap adopts double guide rails for
horizontal welding and multiple servo
motors for driving, so the welding speed
is fast and stable, and the qualifed rate
of the mask is over 98%.

STACK SYSTEM

Automatic counting stack equipment,
servo motor, customer can customize
the number of stacks.

WHY CHOOSE US

1. CE certified product and test machine with materials before delivery

CE certified products, Before leaving the factory, all machines must be debugged with materials to reach the normal trial production status, and the goods can be delivered only after the customer's remote video acceptance (domestic friends orthird-party organizations' on-site acceptance)

2. Provide equipment drawings

We will provide electrical drawings, installation drawings for equipment placement, videos and documents for solving common machine failures, so as to facilitate customers' later installation and debugging.

3. Good after-sales service

In addition to providing equipment installation videos for customers, we will set up a service team for customers about after-sales needs, including the company's manager, sales manager, engineers, customers and other relevant personnel, so that we can answer customers' any questions at any time. These online guidance services are completely free.

DELIVERY

Our products are packed in vacuum inside and wooden cases outside. Customers marvel at the quality of our equipment when they receive the goods. The equipment is of great weight and the packaging is very professional.

Certificates

Company Show

Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
