Small-size self-lubricating graphite plugged bushings made of
manganese bronze are precision-engineered components designed for
applications requiring high wear resistance and low friction. These
bushings feature graphite plugs that provide lubrication without
the need for external oil or grease, making them suitable for use
in a wide range of industrial environments.
Manganese bronze, as the base material for these bushings, offers
excellent strength, corrosion resistance, and machinability. It is
widely used in the manufacturing of bearings and other components
due to its superior mechanical properties. The addition of graphite
plugs further enhances the bushings' self-lubricating capabilities,
reducing friction and wear while improving the overall performance
and longevity of the components.
These small-size bushings are commonly used in automotive,
machinery, and other industrial applications where precise movement
and low maintenance are critical. They are also suitable for use in
environments where lubrication is difficult or undesirable, such as
in food processing or cleanroom facilities.
By utilizing manganese bronze as the base material and
incorporating graphite plugs, these bushings offer a cost-effective
and reliable solution for applications requiring high-performance
self-lubricating bushings in a compact size.
Graphite Plugged Bushings
Custom Search Copy the number from this website:Engineering 360 into the search contact us the bushing stock levels and cheap
pricing.Engineering360 is a search engine and information resource
for the engineering, industrial and technical communities. It will
help you quickly find industrial parts, specifications and
services.
and find the right sliding bearing parts products in our china
online factory website:http://www.bronzegleitlager.com
Small Size Manganese Bronze with Graphite Plugs C86300 Cast Copper
Bushes
C86300 (SAE 430B) Manganese Bronze Bushings
C86300 Manganese Bronze (SAE 430B) is a high strength alloy used as
bushings, bearings, gears, gibs, screw down nuts, bridge pins,
valve stems and hydraulic cylinder parts.
Graphited bearings should be soaked in lubricant prior to
application. The graphite absorbs the lubricant, which is then
transferred to the shaft when heated by the shaft motion. This
action provides oil needed to lubricate but not in sufficient
quantity to cause leakage at the bearing ends. The oil is
re-absorbed by the graphite when motion ceases.
Typical Aplications:
Advantages of Slide Elements:
※ Maintenance free
※ Wear resistant
※ Low frictional resistance
※ Resistant against temperatures up to
approx. 300℃ (approx.572oF)
※ No impurity through discharge of lubrication
※ Environmentally friendly
※ Corrosion resistant
※ Insensitive to impact stress
※ Specially suited for oscillating slide motions
※ Stick, slip free sliding
※ Long life
※ Automotive industry-tool support, die
※ Injection molding-machines and tool
※ Mechanical machine construction
※ Steel and/or rolling mills
※ Machine building-and stone industry
※ Weir plants / ship building
※ Heavy duty machine industry
※ Welding engineering
※ Packaging industry
※ Lift and/or conveying engineering
Plug graphiting is accomplished by drilling a rowed, staggered hole
configuration through the bearing wall and pressing graphite into
these holes and hard baking. The size and number of drilled holes
and the number of rows is determined by the bearing length and
diameter.
- Inch Sleeves
- Metric Sleeves
- Metric Flanges
- Metric Washers
Solid self-lubricating bearing with graphite plug insert | Graphite
copper sleeve bushings
Graphite Plugged Bronze Bushings are all self-lubricating and
maintenance free. These bushings are machined out of continuous
cast bronze and plugged with solid lubricant plugs. A bushing and
it's mating surface should always be seperated by a film of
lubricant.Many of VIIPLUS’s components use graphite. Here is what
you need to know about it. Graphite is ordinary carbon in a highly
unusual form, a two-dimensional crystal. Think of it as a one-atom
thick sheet. A piece of graphite is a stack-up of these sheets. A
graphite pencil lead feels oily because these one-atom thick sheets
are very slippery.
- Plain bronze bushings
- Flanged bronze bushings
- Saw split bronze bushings
- Full split bronze bushings
- Self lubricated bronze bushings
- Bronze sleeve bushings

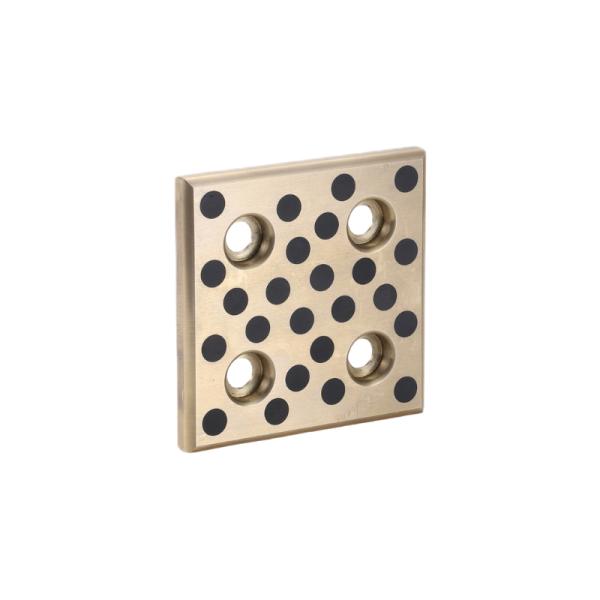

- Wear Plates
- Wear Strips
- Bushings
- Slide Assemblies
- Guide Components
Self Lubricating Graphite Plugged Bronze Sleeve Bushing
Plug Graphite Sleeve Bushing
- Inch Sized Bushings
- Metric Sized Bushings
How To Place An Order
- Step1 Choose the Bushing & Self-lubricating Bearings you need. Do
you need different type bearings.
- Step2 Choose the standard self-lubricating bearings & bushings size
you need.
- Step3 Confirm the material and bushings size you need.
- Step4 Select the shipment terms.
- Step5 Contact our salesperson to get the latest quote.
- Step6 Ask for a FREE sample to check the quality of the products.
- Step7 Confirm the sample quality and the quantity & price of the
bulk order. Place the order with the salesperson.
- Step8 Arrange a 30% deposit prior to production.
- Step9 Electronic photos or shipping samples will be sent before
shipment in accordance with your request.
- Step10 Settle the 70% balance before the bulk order is finished.
- Step11 Shipment will be arranged upon receipt of the balance and
completion of the order.
- Step12 CI, PL, BL and CO (if necessary) are sent for custom
clearance on your end.
- Step13 End of the order.
Material:C86300 Manganese Bronze
C86300 Typical applications include slow speed heavy duty load
bearings, gears, cams and hydraulic cylinder parts.continuous cast
manganese bronze is a high strength, non-heat treatable copper
alloy intended for use in applications requiring a good combination
of outstanding wear characteristics and high bearing strength for heavy loads and slow speeds.
Bronze sleeve bearings flanged bronze bushings for sale
C86300 Maganese Bronze Graphite Bushings |
ELEMENT | CONTENT (%) |
Copper, Cu | 60.0-68.0 |
Lead, Pb | ≤0.2 |
Tin, Sn | ≤0.2 |
Zinc, Zn | 22~28 |
Iron, Fe | 2.0-4.0 |
Aluminium, Al | 5.0-7.50 |
Manganese, Mn | 2.5-5.0 |
|
|
C86200 Maganese Bronze Graphite Bushings |
ELEMENT | CONTENT (%) |
Copper, Cu | 60.0-68.0 |
Lead, Pb | ≤0.2 |
Tin, Sn | ≤0.2 |
Zinc, Zn | 22~28 |
Iron, Fe | 2.0-4.0 |
Aluminium, Al | 3.0-4.90 |
Manganese, Mn | 2.5-5.0 |
Performance
Graphite Plugged Cast Bronze Bushings can be utilized where heavy
loads must be supported at low to medium speeds
The Plug Graphite Cast Bronze Bushing is able to withstand high
temperatures up to 570 F
The self-lubricating feature allows bearings to be used where
oiling is difficult, expensive to implement, and where grease/oil
cannot be used. Excellent lubrication is achieved even under high
loads at low speeds.
Self lubrication with specially embedded solid lubricants reduces
friction. Coefficient of Friction: 0.04 to 0.2
Technical Data
Grade | 50# | 50S1 | 50S2 | 50S3 | 650S5 |
Material | CuZn25AI5Mn4Fe3 | CuSn5Pb5Zn5 | CuAI10Ni5Fe5 | CuSn12 | CuZn25AI5Mn4Fe3 |
Density | 8 | 8.9 | 7.8 | 8.9 | 8 |
Hardness | ≥210 | ≥70 | ≥150 | ≥75 | ≥235 |
Tensile strength | ≥750 | ≥250 | ≥500 | ≥270 | ≥800 |
Yield strength | ≥450 | ≥90 | ≥260 | ≥150 | ≥450 |
Elongation | ≥12 | ≥13 | ≥10 | ≥5 | ≥8 |
Coefficient o linear expansion | 1.9×10-5/℃ | 1.8×10-5/℃ | 1.6×10-5/℃ | 1.8×10-5/℃ | 1.9×10-5/℃ |
Max.Temp. | -40~+300℃ | -40~+400℃ | -40~+400℃ | -40~+400℃ | -40~+300℃ |
Max.dynamic load | 100 | 60 | 50 | 70 | 120 |
Max.speed(Dry) | 15 | 10 | 20 | 10 | 15 |
N/mm²*m/s(Lubrication) | 200 | 60 | 60 | 80 | 200 |
Compression deformation | < 0.01 mm | < 0.05mm | < 0.04mm | < 0.05mm | < 0.005mm |
APPLICATIONS
Bushings for Construction Equipment, Boom Link Bushings for Power
Shovels, Toggle Link & Guide Bushings for Injection Mold Machines,
Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters,
Press Dies, Assembly Lines, Hydro-Electric Structures, Winches,
Hoisting Equipment, Tire and Paper Mill Machinery and Many Other
Industrial Applications.
