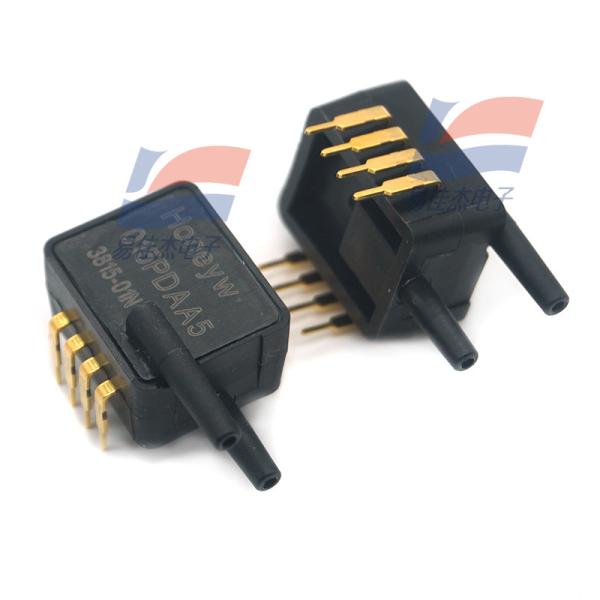

YJJ ASDXRRX015PDAA5 Pressure Sensor Bulk 2.31mm -20 ° C Minimum Operating Temperature 15psi for Board-computer Interface

Product Description:

ASDXRRX015PDAA5 Board-computer Interface Pressure Sensor 15psi

Features:

ASDX series silicon pressure sensors

Low pressure and pressure analog output ±2% total error band, tilt, 10 inches H20 to 100 psi

Description

The ASDX series is a silicon pressure sensor that provides proportional analog output for reading pressure within the specified full-scale pressure range and temperature range.

ASDX has been fully calibrated and temperature-compensated for sensor offset, sensitivity, temperature effect and nonlinearity when used with automotive integrated circuits The calibrated output value of the pressure is updated at the following time: approximately 1 kilohertz.

The standard ASDX is calibrated within the temperature range of 0°C to 85°C[32°F to 185°F]. The feature of this sensor is that it is used for passing 3.3Vdc or 5.0V direct current.

These sensors can be used to measure differential and gauge pressure. The version has an internal vacuum reference and an output value proportional to the value. The pressure differential version allows pressure to be applied to both sides of the valve sensing diaphragm. The Gage version refers to atmospheric pressure and provides an output proportional to changes in atmospheric pressure.

The ASDX series sensors are suitable for non-corrosive and non-ionic working fluids, such as air and dry gas.

They are designed and manufactured in accordance with standards in ISO 9001.

Product type: Board computer interface pressure sensor

RoHS:

Pressure type: Differential

Working pressure: 15 psi

Accuracy: 2%

Output type: Analog

Installation style: Through Hole

Working power supply voltage: 5 V

Port type: Dual Radial Barbless

Package/Box: DIP-8

Minimum operating temperature: -20 ° C

Maximum operating temperature: + 105 ° C

Series: ASDX

Packaging: Bulk

Trademark: Hon

Port size: 2.31mm

Product type: Board Mount Pressure Sensors

25

Subcategory: Sensors

Power supply voltage - Maximum: 6 V

Power supply voltage - minimum: 3 V

Unit weight: 6.280g

Specifications:

Yijiajie Electronics is a full range of silicon pressure sensors from the United States, FREESCALE/, GE, MEAS, SMI, and a full range of sensing and control products from the United States pressure, temperature and humidity, gas flow, current, Hall effect, etc., Japan HAMAMATSU flame, UV sensors, photodiodes, Japan FIGARO, UK CITY, ALPHASENSE full range of semiconductors, catalytic, electrochemical gas sensors, French HUMIREL/MEAS humidity sensors and other international well-known companies authorized agents or distributors, to provide customers with product information, products Solutions, product selection, supply guarantee and logistics services, etc.
