Flange Type Oil-Free Bushing, with a diameter range of 6mm to 60mm,
is a high-performance bearing solution designed for applications
where lubrication is not feasible or desired. The flanged design
offers additional stability and support, ensuring reliable
operation even under high loads and speeds.
The bushings are made from high-quality materials that exhibit
excellent wear resistance and durability, making them suitable for
use in a wide range of industrial applications. The oil-free
feature eliminates the need for regular lubrication, reducing
maintenance costs and the risk of lubrication-related issues.
With a diameter range of 6mm to 60mm, these bushings can be easily
integrated into various machinery and equipment. Wh it's a small
motor or a large industrial machine, the Flange Type Oil-Free
Bushing provides a robust and reliable bearing solution that
ensures smooth and efficient operation.
Overall, the Flange Type Oil-Free Bushing, with its flanged design
and oil-free feature, offers a versatile and durable bearing option
for a variety of industrial applications where lubrication is a
concern.

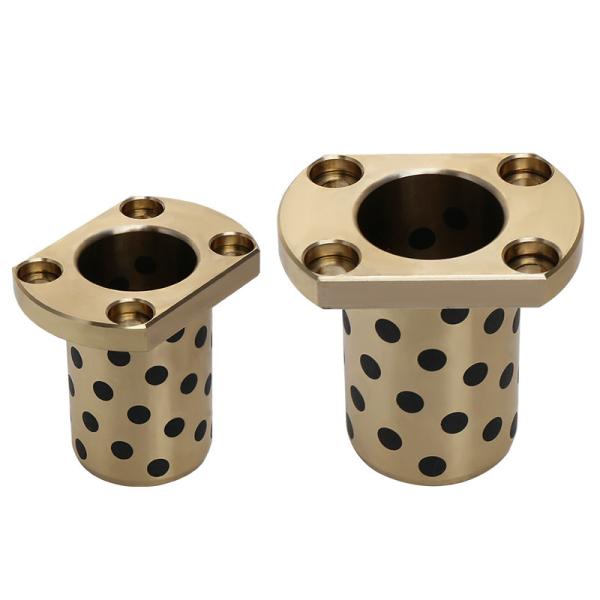

Flange Type Oil-Free Bushing Diameter 6mm-60mm
Generation of linear bearing LMF round flange type oil-free bushing
graphite alloy copper bushing inner diameter 6mm-60mm
Material Graphite Filled Bronze Plate Bushing
(LMF6)28*5/12*6*19
(LMF8)32*5/15*8*24
(LMF10)40*6/19*10*29
(LMF12)42*6/21*12*30
(LMF12-32) 42*6/21*12*32
(LMF12-35) 42*6/21*12*35
(LMF13)43*6/23*13*32
(LMF16)48*6/28*16*37
(LMF20)54*8/32*20*42
(LMF22)48*8/30*22*58
(LMF25)62*8/40*25*59
(LMF30)74*10/45*30*64
(LMF35)82*10/52*35*70
(LMF40)96*13/60*40*80
(LMF50)116*13/80*50*100
(LMF60)134*18/90*60*110
(LMF80)164*18/120*80*140
(LMF100)200*20/150*100*175
SELF-LUBRICATING METRIC BRONZE BEARINGS FABRICATED.128.60/128.64 mm
ID x 137.54/137.58 mm OD x 168 mm Long size
- Graphite Bronze Bearings|Straight, Flanged, Washers, Guide Pin,
Guide Ejector, Guide Post, Spherical-Imperial line bushings
(dimensions in inches)
Oilless bushing,oil-free bronze bush bearing
- Copper Alloy Straight, Standard / Thin Wall, I.D. F7 O.D. m6
Product Description
Oilless Guide Bushing
Material
- High strength brass + graphite
Graphite bronze bearings are a substrate of carbon steel, bronze
powder, , fiber and other materials through a special process to
produce self-lubricating products, with the characteristics of
environmental protection
The solid inlaid bearing is on a brass matrix.A high performance
solid lubricant inlaid with graphite or MoS2 solid lubricant.It
breaks through the limitation that the general Graphite Bronze Bearings depends on oil film lubrication.In the process of use, the
friction heat makes solid lubrication and shaft friction, forming
an excellent condition for oil and powder to coexist lubrication,
which not only protects shaft from wear, but also makes solid
lubrication characteristics eternal.Its hardness is twice as high
as that of ordinary copper sheath, and its wear resistance is also
twice as high.At present, the Graphite Bronze Bearings product has been used in metallurgy continuous casting machine,
train support, steel rolling equipment, mining machinery, ships,
gas turbines and other high temperature, high load, low speed heavy
load and other occasions.
oilles bearing model
Graphite Bronze Bearings | High Quality, Factory Price
Body Lifts and Bushing at Wholesale Prices
Graphite Bronze Bearings Material
-Bronze with solid lubricant, oilless lubricating
Self Lubricated Graphite Bronze Bearings Features
·Self Lubricated Bearings to 450°
·Self Lubricating
·Performs well in High load, low speed operations
·Resists corrosive and and hostile environments.
·Excellent performance in medium to high temperature (up to 600°).
·Comparable with most viscous lubricants, oils, and grease
applications.
Replacement 500 SPB BRONZE BEARINGS SERIES BRONZE BUSHING plugged
graphite size sheet:
Description
Graphite Bronze Bearing-Imperial line bushings (dimensions in
inches)
Graphite Bronze Bearing are metal backed with bronze alloy graphite
oil-less bushings.
These are multi-layer composite bearings made of a special sintered
material used as sliding surfaces and a steel material as a support
metal. The sintered layers are made of a special copper-nickel
alloy containing a uniformly dispersed solid lubricant, the main
component of which is graphite. Solid lubricants will be released
to the surface of the ring as they wear, which will ensure a lower
coefficient of friction during operation. In addition, these
sintered layers were treated by the oil impregnation treatment.
Features
1．no oil supply device, oil hole, oil groove
The cost of the fuel supply system, the cost of processing,
assembling, and so on, can greatly reduce the cost of
manufacturing.
2．Operation cost reduction
Greatly reduce the use of lubricating oil and equipment maintenance
costs, but also exempt from the risk caused by the shortage of oil.
3．design time shortened
No oil can make the design, structure is greatly simplified, reduce
costs, save design time. In addition, using self-lubricating
bearings can also improve the mechanical properties and prolong get
remarkable results using life and improve the reliability.
4．recovery and environmental protection of lubricant
No need to waste oil recycling, is conducive to environmental
protection.
Use notes
1．In the possible case, the design uses the standard specification
as far as possible;
2．Please note that there is no foreign body in the assembly;
3．After using the sliding surface, formed by solid lubricant oil
film in surface with black or gray black phenomenon, please do not
scrub, as usual.
4．Before the assembly, if the lubricating oil applied to the
grinding parts, can shorten the running in period, conducive to the
operation of machinery, operation;
5．When the assembly should be slowly pressed into, it is strictly
forbidden to beat, so as to avoid damage to the Graphite Bronze Bearings and deformation;
6．Design, different parts should be selected with appropriate
material, in order to improve the mechanical performance, to extend
the service life of the Graphite Bronze Bearings;
7．In the high load, reciprocating motion, the proposed use of screw
fixation;
8．In fresh water, sea water and in the sea, on the use of stainless
steel or surface plating.
Characteristic
1. Flexible, simple, convenient design with wide applications
2. FunctionaI in absence of oiI
3. Cost efficiency
4. Excellent performance under high load and low speed
circumstances
5. In circumstances where it is difficult to generate hi-films,
such as reciprocating movements, rotating movements and frequent
on-off, Graphite Bronze Bearings highlights its excellent abrasion resistance.
6. Excellent chemical resistance and corrosion resistance
Specifications
Material | Base Bronze | CuZn25Al6Fe3Mn3 |
SL2 | Solid Graphite lubricant |
Density |
| 8.2g/cm3 |
Tensile Strength |
| >=755N/mm2 |
Anti-compact Tenacity |
| >=400~500KJ/m3 |
Hardness |
| >=200HB |
Max Load Pressure |
| 100N/mm2 / 120N/mm2(500SP120) |
Speed Limit |
| 0.5m/s |
PV value limit |
| 1.65N/mm2.m/s |
Friction coef | Oil Lubrication | 0.03 |
Dry Friction | 0.16 |
Working temperature |
| -50~+300°C |
Application field
·Hardware
·steel manufacturing
·stamping die
·automobile industry tools
·Stamping
·others
Graphite Bronze Bearings is widely used in high load applications
where lower friction and good wear resistance are required and
where lubrication is difficult. Some examples include wear plates
for automobiles, industrial robots, wear plates for injection,
injection bolt bushings and self-lubricating bushings for
construction equipment.
Bearing Type
·Guide bushing
·fixture
·half bearing bush
·Wear plate
·gasket
·guide plate
·Others
Custom Design
All kinds of sliding elements can be supplied or produced on
request.
Please contact us for more information.
