U Type Silicon Carbide Heating Elements with 1600°C Max Operating Temperature High Thermal Conductivity and Customizable Sizing

U Type Silicon Carbide Heating Elements with 1600°C Max Operating Temperature High Thermal Conductivity and Customizable Sizing

U Type Silicon Carbide Heating Elements with 1600°C Max Operating Temperature High Thermal Conductivity and Customizable Sizing
U Type Silicon Carbide Heating Elements with 1600°C Max Operating Temperature High Thermal Conductivity and Customizable Sizing
Categories Heating Elements
Model Number: Customizable
Material: SiC
Composition:SiC: ＞85%
Color: Black
Density: 2.5~2.6g/cm³
Flexural Strength: 70-90 MPa
Size: Customized
Heat Conduction: 23.26 W/(m·℃)
Tensile Strength: 39.2～49 MPa
Max. Service Temp.: 1500℃
Linear Thermal Expansion Coefficient (20-1500℃): 5.2×10⁻⁶/℃
Brand Name: KEGU
Place of Origin: China
Price: 200-500 yuan/kg
Payment Terms: L/C,D/A,D/P,T/T,,
Supply Ability: 2,000 pcs/month
Packaging Details: Strong wooden box for Global shipping
Contact Now
Company Info.
Shaanxi KeGu New Material Technology Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

U Type Silicon Carbide Heating Elements with 1600°C Max Operating Temperature High Thermal Conductivity and Customizable Sizing

Silicon Carbide SIC Heating Elements U Type For Muffle Furnace
Our U-Shape (U-Type) Silicon Carbide (SiC) heating elements are high-performance, cost-effective solutions designed for extreme environments in muffle furnaces and various electrical furnaces. Manufactured from high-purity silicon carbide, these elements offer exceptional thermal stability, minimal deformation, and a long service life, even at temperatures up to 1600°C in air without a protective atmosphere.
Key Features & Benefits
  • High-Temperature Performance: Reliable operation in environments ranging from 600°C to 1600°C
  • Superior Oxidation Resistance: Excellent resistance to oxidation, ensuring durability and consistent performance
  • Customizable Sizing: Available in custom lengths and configurations (OEM support available) to perfectly fit your specific furnace design and requirements
  • High Thermal Conductivity: Efficient heat transfer with thermal conductivity of >18 W/m*K at 800°C
  • Mechanical Strength: High cold crushing strength (150 MPa) and good rupture strength at elevated temperatures (>50 MPa at 1200°C)
  • Low Thermal Expansion: Coefficient of thermal expansion <4.7x10⁻⁶/°C minimizes deformation and extends lifespan
  • Easy Installation & Maintenance: Designed for straightforward installation and reliable long-term use
Applications
  • Metallurgy Processing
  • Ceramics Firing and Sintering
  • Glass Manufacturing
  • Laboratory & Research Muffle Furnaces
  • Mechanical Testing Furnaces
  • Analysis and Testing
  • Semiconductor Processing
Technical Specifications
PropertyValue / Description
TypeU-Shape (U Type)
UsageMuffle Furnace, Electrical Furnace
Max Operating Temperature1600°C (in air)
SiC Content> 85%
Si₃N₄ Content> 22%
Fe₂O₃ Content< 0.5%
Bulk Density2.6 - 2.7 g/cm³
Apparent Porosity< 16%
Cold Crushing Strength150 MPa
Rupture Strength (at 1200°C)> 50 MPa
Thermal Conductivity (at 800°C)> 18 W/m*K
Thermal Conductivity (at 1200°C)> 14 W/m*K
Thermal Expansion Coefficient< 4.7 x 10⁻⁶ /°C
Custom OEM Services Available: We specialize in producing custom-sized silicon carbide heating elements to meet your exact specifications. Contact us with your requirements.
Product Images
Silicon Carbide SIC Heating Element U-Type for Muffle Furnace

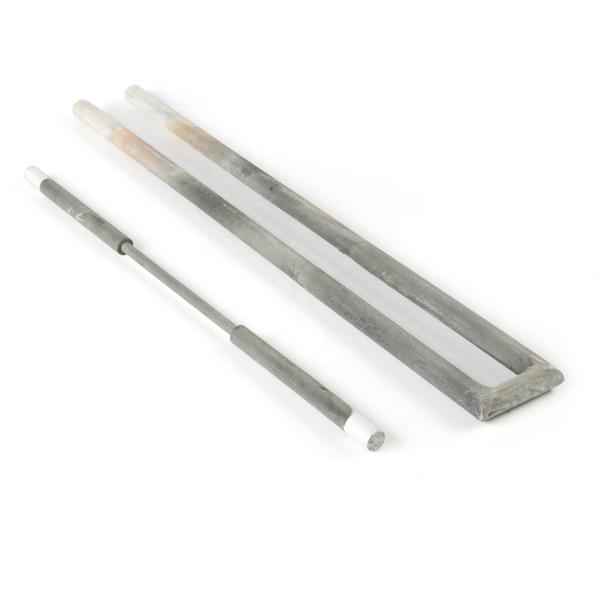

Close-up view of Silicon Carbide Heating Element

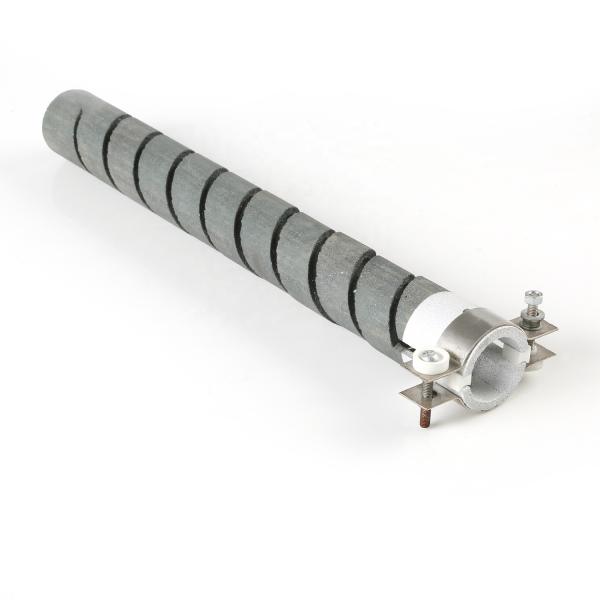

Silicon Carbide SIC Heating Element installation example
Packaging & Shipping
Packaging for Silicon Carbide Heating Elements
Secure shipping packaging for fragile heating elements
Ready for shipment Silicon Carbide Heating Elements
