Name: HBRV1875DX Multifunction Hardness Tester Brinell Rockwell Vickers 3in1 Hardness Testing Machine
Brand: HUATEC
Price: 1 USD

Home > Weighing Scales >

HBRV-187.5DX Multi-function Hardness Tester Brinell Rockwell Vickers 3-in-1 Hardness Testing Machine

Categories	Non Destructive Testing Equipment
Brand Name:	HUATEC
Model Number:	HBRV-187.5DX
Certification:	CE
Place of Origin:	China
MOQ:	1 pc
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month
Delivery Time:	7-10 working days after receipt of your payment
Packaging Details:	Carton packing box
Power supply:	AC220+5%,50~60Hz
Test force:	5～187.5kgf
Hardness measurement:	Brinell：8～650HBW Rockwell：20～100HR Vickers：8～2900HV
Head - wall distance:	200mm
Max height of specimen:	Rockwell：220mm、 Brinell Vickers：150mm
Magnification of microscope:	Brinell：37.5X、 Vickers：75X
Vickers scale Hardness resolution:	0.1HV

Contact Now

Add to Cart

Company Info.

HUATEC GROUP CORPORATION

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Attribute	Value
Power supply	AC220+5%,50~60Hz
Test force	5～187.5kgf
Hardness measurement	Brinell:8～650HBW Rockwell:20～100HR Vickers:8～2900HV
Head - wall distance	200mm
Max height of specimen	Rockwell:220mm, Brinell Vickers:150mm
Magnification of microscope	Brinell:37.5X, Vickers:75X
Vickers scale Hardness resolution	0.1HV

Product Description

The HBRV-187.5DX is a senior digital hardness tester featuring Brinell, Rockwell, and Vickers test methods with touch screen operation.

Main Features:

Equipped with Brinell, Rockwell, and Vickers test methods
Electronic and electric loading with high precision sensor and unique closed-loop control system
Eyepiece structure with digital encoder for measuring D1, D2 values with LCD display
Automatic hardness scale selection with corresponding test parameter adjustment
Automatic test force correction and compensation for improved accuracy

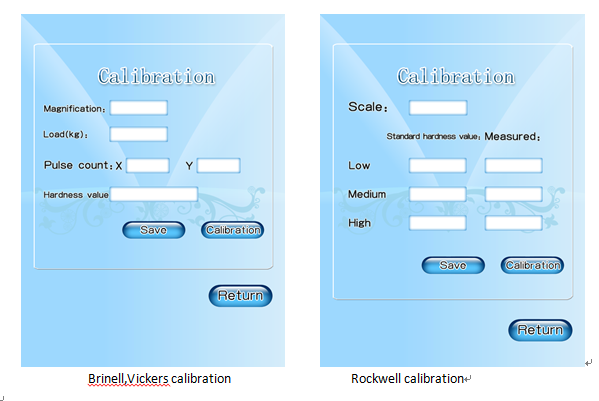

Calibration capability using standard hardness blocks or length scales
Test force correction via standard dynamometer
Hardness value conversion between Brinell, Rockwell, and Vickers scales

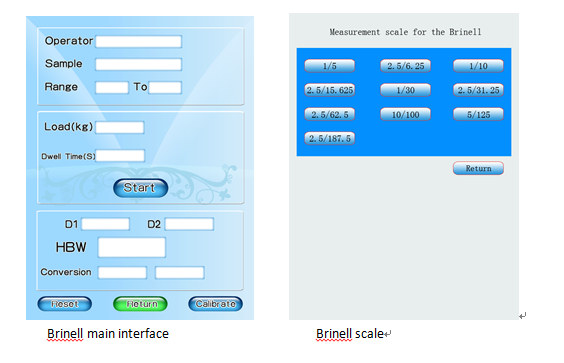

User-friendly touch screen interface
Automatic hardness conversion according to national standard/ASTM
Password protection for parameter settings and test information
Measurement data export to U-disk in EXCEL format

Technical Specifications

Model	HBRV--187.5DX
Test force	5～187.5kgf
Brinell scale	HBW1/5,HBW2.5/62.5,HBW1/10,HBW2.5/15.625,HBW1/30,HBW2.5/31.25,HBW2.5/62.5,HBW10/100,HBW5/125,HBW2.5/187.5 (select 10 scales)
Hardness resolution	0.1HBW
Rockwell scale	HRA,HRB,HRC,HRD,H R E,HRF,HRG,HRH,HRK,HRL,HRM,HRP,HRR,HRS,HRV
Hardness resolution	0.1HR
Vickers scale	HV5,HV10,HV20,HV30,HV40,HV50,HV60,HV80,HV100,HV120 (select 10 scales)
Hardness resolution	0.1HV
Objective	2.5X,5X(10X,20X optional)
Magnification of microscope	Brinell:37.5X, Vickers:75X
Hardness measurement	Brinell:8～650HBW Rockwell:20～100HR Vickers:8～2900HV
Data output	LCD display,U disk
Max height of specimen	Rockwell:220mm, Brinell Vickers:150mm
Head - wall distance	200mm
Dimension	560260800mm
Weight	About 70Kg
Power	AC220V _+_ 5%,50-60Hz

Standard Accessories

Item	Quantity	Item	Quantity
Lighting (internal lighting, external lighting)	1	Test block(HRC high,HRC low HRB ,HBW2.5/187.5,HV30)	5
Rockwell,Vickers diamond indenter	Each 1	Ball indenter(φ1.5875,2.5,5mm)	3
Eyepiece(DHV-15X)	1	Objective(2.5X,5X)	2
Sliding test table	1	Large, medium, V-test sets	Each 1
U memory disk, touch pen	Each 1	Fuse 2A	2
Level	1	Regulating screw	4
Power cable	1	Dust bag	1
Certificate, warranty card	1	Manual	1

Product Images
