Automatic Color Steel Roofing Tile Roll Forming Machine

Categories Roof Tile Roll Forming Machine
Brand Name: BEST
Model Number: YX1100
Certification: CE
Place of Origin: CHINA
MOQ: 1 set
Price: USD$8000---10000
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month
Delivery Time: 30 work days
Tile type: Colored Glaze Steel
Voltage: 380V 50Hz 3phases
Condition: New
Weight: 6T roof sheet roll forming machine
6T roof sheet roll forming machine: Roof/wall
After-sales service provided: Engineers available to service machinery overseas
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

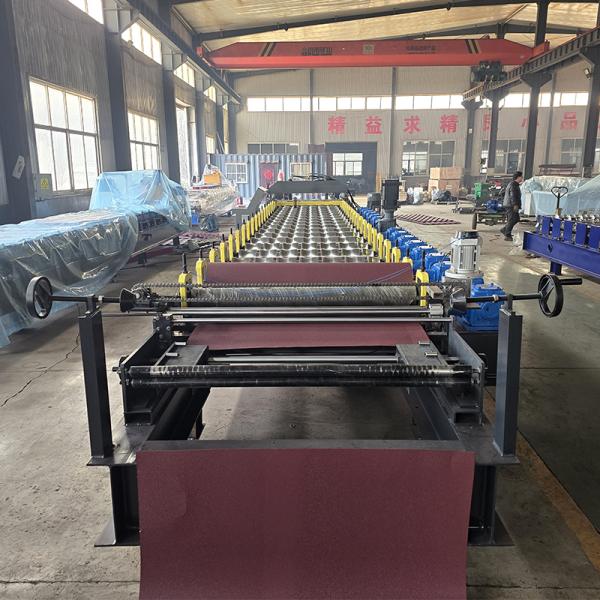

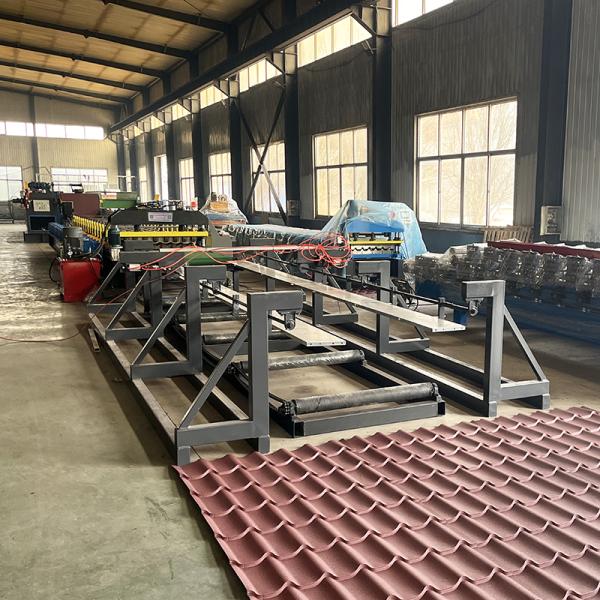

Automatic Color Steel Roofing Tile Roll Forming Machine

Automatically Color Steel Roofing Sheet Step Tile Making Roll Forming Machine
Product Paramenters
Suitable material
PPGI GI AL
Coil Width
914/925/1000/1200/1220/1250mm as custom
Thickness
0.3-0.8mm as custom
Power
380V 50Hz 3Phase as custom
Main motor
5.5KW
Hydraulic motor
4KW
Speed
15-30m/min
Forming stations
12-18 rows
Roller material
Cr12 steel with vacuum heat treatment HRC57°-60°
Shaft material
45# steel quenched and tempered
Shaft diameter
75mm
Chain
1.2 inch
Screem HMI
Delta , Touch Screen
PLC
Delta ,
Processing precision
Within 1mm
Size
7.6m×1.5m×1.2m
Weight
4.5T

Machine list:

No.MachineQty.
1Screw Loader For Extruder1set

Main Tile Extrusion Line

Ridge Tile Forming

2Parallel Twin-Screw Extruder(PVC)1set
3Vacuum Loader And Drying Hopper1set
4Single Screw Extruder (ASA)1set
5Extrusion Mould And Distributor1set
6Calibration Mould And Trimming Device1set
7Haul Off Unit1set
8Cutter1set
9Stacker1set
10Ridge Tile Oven1set
11Ridge Tile Forming Machine And Mould1set
12Screw Loader For Mixer1setAuxiliary Equipment
13Mixer Unit1set
14Crusher1set
15Pulverizer1set

Specifications

1. DECOILER
(1) Max. Width: 600 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1000 mm
(4) Max. Loading Capacity: 5000 kgs


2.ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 14groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

(5) Diameter of shaft: 70mm

(6) Frame panel thickness: 14mm

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 3kw

(9)Driven type: 1.0"Chain
(10)Speed:8-12m/min



3. CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kW

4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta

(3)Length Error: ±2mm

(4)Language: English and Chinese

(5)Voltage: 380v/50HZ, 3Phase

(it depends on customer requirement)


5. HYDRAULIC PUMP STATION

(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand

(4) Cooling fan
