Chemical Resistant Eco Friendly FRP Flat Panel​ FRP Skylight Panels

Chemical Resistant Eco Friendly FRP Flat Panel​ FRP Skylight Panels

Chemical Resistant Eco Friendly FRP Flat Panel​ FRP Skylight Panels
Chemical Resistant Eco Friendly FRP Flat Panel​ FRP Skylight Panels
Categories FRP Sheet
Certification: ISO9001
Place of Origin: CHINA
MOQ: 2000㎡
Payment Terms: T/T
Brand Name: WGSC
Price: $1.41-$3.52（㎡）
Delivery Time: 3-7 work days
Supply Ability: 100000㎡/month
Packaging Details: Shipping Crate
Chemical Resistance: Excellent
Color: Customizable
Surface Finish: Glossy/Matte
Fire Resistance: Class A
Weight: Lightweight
Thickness: Customizable
Contact Now
Company Info.
Qingdao Wanguo Sanchuan Fiber Technology Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Chemical Resistant Eco Friendly FRP Flat Panel​ FRP Skylight Panels

FRP Skylight Panels High Performance Translucent Roofing Solutions
Product Attributes
AttributeValue
Chemical ResistanceExcellent
ColorCustomizable
Surface FinishGlossy/Matte
Fire ResistanceClass A
WeightLightweight
ThicknessCustomizable
Product Description

Fiberglass Reinforced Polyester (FRP) Skylight Panels are engineered composite materials combining unsaturated polyester resin with glass fibers, delivering superior light transmission, structural strength, and corrosion resistance.

Key Features
  • Optimal Light Diffusion - 50-90% adjustable transmittance (85% at 1.2mm thickness) with anti-glare properties
  • Extreme Weather Resistance - Operational range -40°C to 120°C, UV-blocking rate >99%
  • Lightweight & Durable - Density 1.11-1.20g/cm³, impact resistance ≥300kg/m² (3mm thickness), 4x lighter than steel
  • Chemical Inertness - Resists 15% HCl/40% HF, ideal for chemical plants and coastal areas
  • Fire Safety - Oxygen index ≤30%, compliant with Class A1 fire rating (GB8624-2012)
Five Core Industrial Applications
IndustryCritical ApplicationsRecommended ModelsPerformance Edge
Industrial ConstructionFactory/Warehouse Roofing840型/760型Snow load resistance, 60-80% light transmission
Agricultural GreenhousesPlant/Cattle ShedsDouble-Layer Hollow PanelsThermal insulation (0.14kcal/m*h*℃)
Chemical ProcessingAcid Wash/Electroplating PlantsCorrosion-Resistant 980型98% H₂SO₄ resistance, 20+ years lifespan
Public InfrastructureAirports/Sports ArenasHidden-Fastener Angle-TypeSeamless waterproofing, high impact resistance
Commercial SpacesShopping Malls/Exhibition HallsFlame-Retardant 950型UL94 V-0 certification, low smoke density
Selection Guide
  • Cost-Effective → 760型 (60% transmittance, budget-friendly)
  • Arctic Conditions → Double-Layer Panels (-40°C~120°C adaptability)
  • Extreme Corrosion → Isophthalic Resin-Based 980型 (HF-resistant)
Technical Specifications (ISO/GB Standards)
Parameter760840980A1 FireproofTest Standard
Thickness (mm)1.5-2.01.8-2.53.0-4.02.5-3.0GB/T 3854
Light Transmittance (%)60-7550-8550-7040-60Industry Test
Tensile Strength (MPa)≥50≥80≥100≥75GB/T 2567
Oxygen Index (%)≤30≤30≤30≥28 (Self-extinguishing)ASTM D2863
Temperature Range (°C)-40~120-40~120-50~150-40~150GB/T 1634
Fire RatingClass BClass BClass BClass A1GB 8624-2012
-Grade Packaging & Smart Storage

Triple-Barrier Protection

  • Primary Container - UV-blocking HDPE drum (220kg capacity) | ISO 15750
  • Moisture Barrier - Al-foil laminate (<0.1g/m² WVTR) | MIL-STD-2073
  • Shipping Crate - Honeycomb corrugated box (12kN crush) | ISTA 3E

IoT Traceability

  • Color Coding : General (Blue █) │ Fireproof (Red █) │ Chemical-Resistant (Yellow █)
  • NFC Tag : Scan for real-time MSDS and UN compliance data
Technical Validation & Global Certifications
  • Extreme Testing : 980 withstands 40% HF for 72h without corrosion
  • Field Proven : 840 used in Shenzhen Airport (10-year zero leakage)
  • Eco-Compliance : REACH & RoHS 3 certified, asbestos-free
Why This Converts B2B Buyers?
  • Problem-Solution Fit : "40% HF resistance" directly addresses chemical plant pain points
  • Data Transparency : Full GB/ISO test parameters build technical credibility
  • Supply Chain Security : NFC tags simplify ISO 14001 audits
  • Regulatory Edge : Cites REACH/GB8624 compliance for global market access

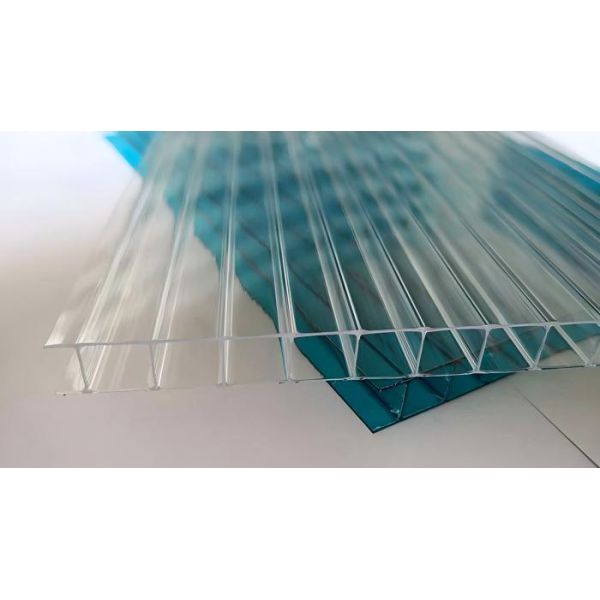

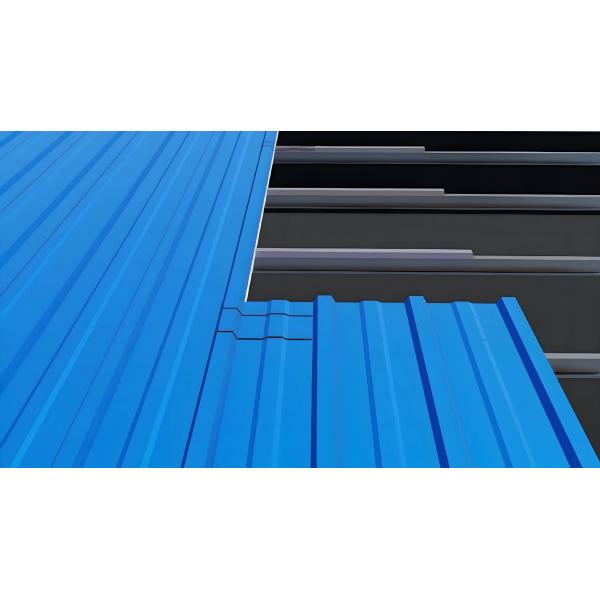

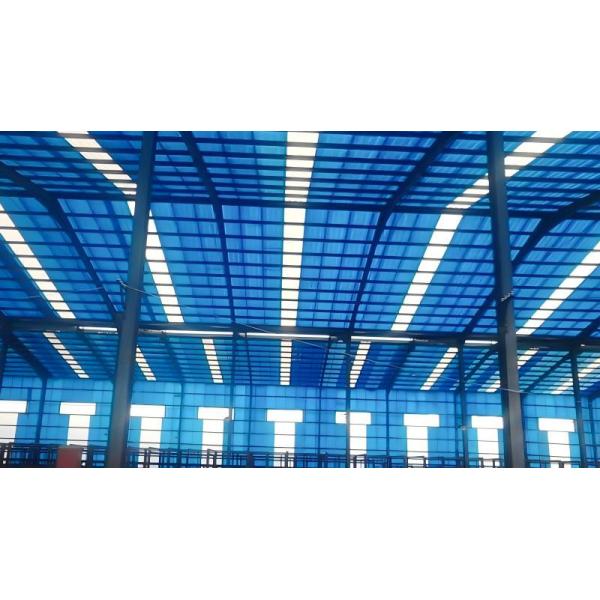

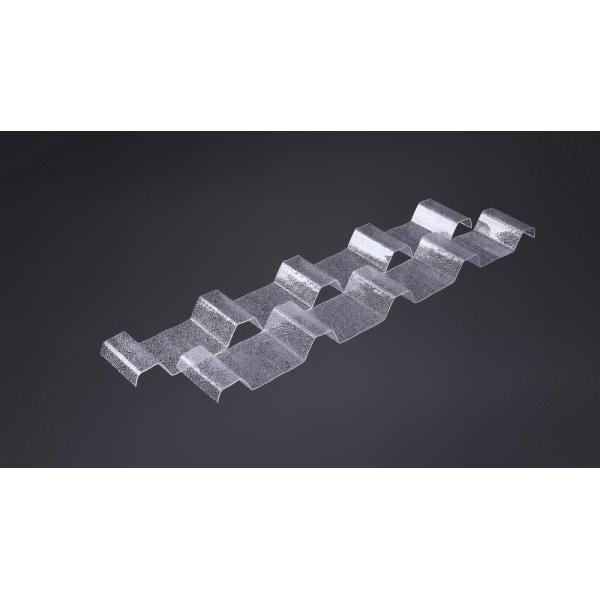

FRP Skylight Panel installation in industrial setting Close-up of FRP panel surface texture FRP panels in agricultural greenhouse application Comparison of different FRP panel types
