High Performance Fire Resistant Basalt Fiber Roving Continuous Basalt Fiber

Categories	Basalt Fiber
Certification:	ISO9001
Place of Origin:	CHINA
MOQ:	1000KGS
Payment Terms:	T/T
Brand Name:	WGSC
Price:	$0.85-$2.55（KG）
Delivery Time:	3-7 work days
Supply Ability:	50000T/month
Packaging Details:	Palletize
Material:	Basalt
Filament Diameter:	9-24(μm)
Tensile Strength(MPa):	≥3200-≥4150(MPa)
Elastic Modulus(GPa):	91-110(GPa)
Alkali Resistance:	≥85%-≥95%
Max Operating Temp:	880°C/650°C
Fire Resistance:	Non-combustible
Chemical Resistance:	Excellent
Abrasion Resistance:	Excellent
Uv Resistance:	Excellent
Corrosion Resistance:	Excellent
Environmental Friendliness:	100% Natural and Recyclable

Contact Now

Add to Cart

Company Info.

Qingdao Wanguo Sanchuan Fiber Technology Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

High Performance Fire Resistant Basalt Fiber Roving Continuous Basalt Fiber

Basalt Fiber High Performance Inorganic Reinforcement For Extreme Environments

Product Attributes

Attribute	Value
Material	Basalt
Filament Diameter	9-24(μm)
Tensile Strength(MPa)	≥3200-≥4150(MPa)
Elastic Modulus(GPa)	91-110(GPa)
Alkali Resistance	≥85%-≥95%
Max Operating Temp	880°C/650°C
Fire Resistance	Non-combustible
Chemical Resistance	Excellent
Abrasion Resistance	Excellent
UV Resistance	Excellent
Corrosion Resistance	Excellent
Environmental Friendliness	100% Natural and Recyclable

Product Description

Volcanic rock-derived continuous fibers deliver unmatched thermal resistance (-260°C to 880°C) and tensile strength up to 4,840MPa (1.4x E-glass). Certified to ASTM/GB standards, these eco-friendly fibers enable lightweight solutions in aerospace, construction, and filtration industries.

Core Advantages

• Extreme Thermal Stability: 1,000°C short-term exposure (fireproof suits & spacecraft shielding)
• Superior Corrosion Resistance: Alkali retention ≥85% (outperforms glass fiber in concrete reinforcement)
• Eco-Efficiency: Carbon-neutral production, 16x lower energy vs carbon fiber

Industrial-Grade Tex Specification Matrix

Product Code	Linear Density	Key Applications	Critical End-Use Projects
BF-330	330 tex	Aerospace insulation, PCB substrates	Shenzhou spacecraft heat shields
BF-800	800 tex	Automotive brake pads, mil-spec PPE	Armored vehicle fireproof suits
BF-1200	1200 tex	High-temp filtration, structural grids	Industrial flue gas bags (650°C)
BF-2400	2400 tex	Concrete rebar, marine composites	Sea-crossing bridge reinforcement
BF-4800	4800 tex	Geogrids, pipe winding	Oil/gas pipelines, highway subgrade

Market Insights:

BF-4800: 180kN/m tensile strength geogrids dominate soft soil stabilization

BF-800: 60% cost reduction vs aramid in friction materials

Technical Specifications (ASTM D3039/GB/T 38111 Certified)

Parameter	BF-330	BF-800	BF-1200	BF-2400	BF-4800	Standard
Filament Diameter(μm)	9±1	13±1	17±1	20±1	24±1	GB/T 23265
Tensile Strength(MPa)	≥4150	≥4000	≥3800	≥3500	≥3200	ASTM D3039
Elastic Modulus(GPa)	105-110	100-105	95-100	93-97	91-93	ASTM D2343
Max Operating Temp	880°C*	880°C*	650°C**	650°C**	650°C**	GB/T 30032
Alkali Resistance	≥95%	≥93%	≥90%	≥88%	≥85%	JC/T 572

*Short-term exposure **Long-term service | Fe₂O₃ content ≤14%

-Spec Packaging Protocol

4-Tier Defense System

Protection Tier	Technical Execution	Certification
Anti-Crush Core	Aerospace Al tube (Φ100×1500mm)	Radial load ≥800kg
Moisture Barrier	Anti-static PE + dual desiccant (≤0.03% RH)	ISO 2230:2018
Armored Casing	7-ply corrugated box (≥1200kg crush resist)	ISTA 3A
Environmental Tracker	RFID temperature/humidity loggers	EPCglobal Class1

Custom Solutions

• Climate-Controlled Shipping: 5°C-25°C for tropical zones
• Precision Slitting: 50mm-2000mm width (±0.5mm tolerance)

Blockchain-Enabled Storage Management

Environmental Control Standards

Parameter	Control Range	Smart Monitoring Tech
Temperature	15°C-25°C	IoT sensors (±0.5°C accuracy)
Humidity	≤40% RH	MEMS hygrometers (±3% RH)
UV Protection	Light-blocking film	Prevent polymer degradation
Shelf Life	24 months	Blockchain-tracked expiration alerts

Critical Compliance:

• Concrete Application: Substrate humidity ≤70% during installation

• Filtration Use: Pre-coat high-temp sizing (↑30% thermal stability)

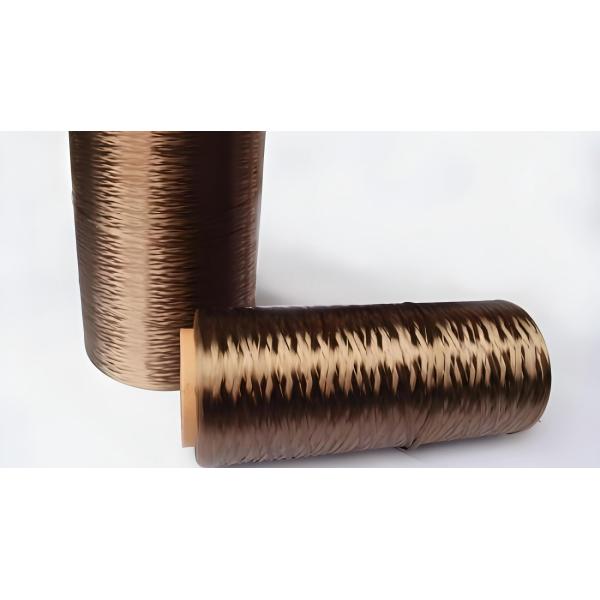

Basalt fiber reinforcement material sample

Industrial application of basalt fiber reinforcement
