OEM 13MP SONY IMX258 4K FHD USB - C OIS Anti - Shake Camera Module for Agriculture Monitoring

Product Description

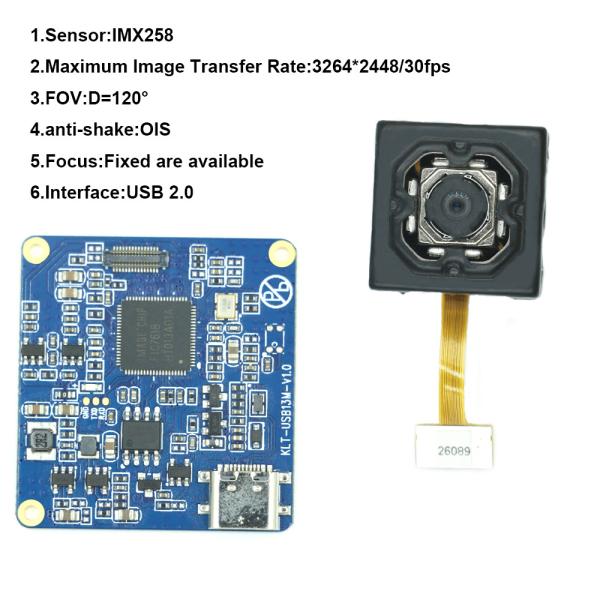

USB Camera Module

The Haozhou IMX258 V1.0 optical image stabilization (OIS) camera module uses the Sony IMX258 (1/3.06 inch) image sensor, with a color
square pixel display and up to 13 megapixels with 1.12um pixel size.

4K Camera Module

When used with the master board, it can support shooting 13MP still pictures, and support up to 4K@60FPS (differential), 4K@30FPS video
shooting. The world's smallest optical image stabilization module can correct slight jitter within 4 degrees.

High speed HDR Camera Module

It uses Exmor RS technology to achieve high-speed image acquisition. It uses a parallel A/D conversion circuit and achieves high-sensitivity and low-noise images (compared to traditional CMOS image sensors) through a back-illuminated imaging pixel structure. It adopts R, G, and B primary color mosaic filters. It is equipped with an electronic shutter with variable integration time.

Sony IMX258 Camera Moudule Functions and Features

◆ High signal-to-noise ratio.

◆ Back-illuminated stacked CMOS image sensor ExmorRSTM
◆ Phase-difference pixel data output for phase-difference AF
◆ High Dynamic Range (HDR) mode for raw data output.
◆ Output video format is RAWW10/8.
◆ Pixel jump well reading and V sub-sampling functions.
◆ Independent flip and ytterbium images.
◆ Two-wire serial data throughput.
◆ Dynamic shortcut defective pixel correction.
◆ Fast mode changeover. Instantaneous
◆ Dual sensor net stepping operation.
◆ 4K bit OTP ROM for user use.
◆ Built-in temperature sensor.

◆ Full resolution @30fps (Normal/HDR). 4K2K@30fp5(Normal/HDR) 1080p @60fp5(Normal)

◆ Two phase-locked loops for pixel control and separate clock generator for data output interface.

◆CS1-2 serial data output (MIP 12-channel/4-channel, max.) 1.3Gbps Serial data output 1.3Gbps/channel, D-PHY specification, compliant with Release 1.1)

CMOS Camera Module Applications

Smartphones, biometrics, machine vision, agricultural inspection, drones, FPV racing machines, sports cameras, PTZ cameras, industrial inspection, vehicle monitoring, AR/VR eye tracking, vehicle monitoring, driving recorders, smart home inspection robots, etc.
