SP3 Series Suction Cup

SP3 Series Suction Cup

SP3 Series Suction Cup
SP3 Series Suction Cup
Categories Pneumatic Solenoid Valve
Mounting thread: M3F - M3×0.5 female thread
connection: M3F - M3×0.5 female thread
Certification: ISO9001
Price: Negotiate
Payment Terms: T/T,L/C
Vacuum port: Nil - Vertical
Warranty: 1 Year
Brand Name: NBSANMINSE
Model Number: SP3C4
Place of Origin: CHINA
MOQ: 10PCS
Supply Ability: 10000PCS
Delivery Time: 5-30days
Packaging Details: Plastic bag
Power Type:: Air
Contact Now
Company Info.
Ningbo Sanmin Import And Export Co.,Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SP3 Series Suction Cup

Features
◇ Suction cups of same diameter among U/C/B types use same fitting
◇ Small size, short height
◇ Available in conductive material
Advantages
◇ Used in various occasions, suction cups are interchangeable
◇ Suitable for occasions with limited space
◇ Discharge static electricity gently to protect workpieces from damage
Applications
◇ U type suitable for workpieces with even surface and without deformation
◇ C type suitable for easily deformed workpieces
◇ B type suitable for workpieces with inclined surface
◇ Suitable for handling of workpieces with small size and light weight
◇ Conductive material suitable for 3C industry
Structure
◇ Split structure for easy replacement of wearing parts
How to order
◇ Note: HP material is not for all sizes. Please contact AIRBEST if need

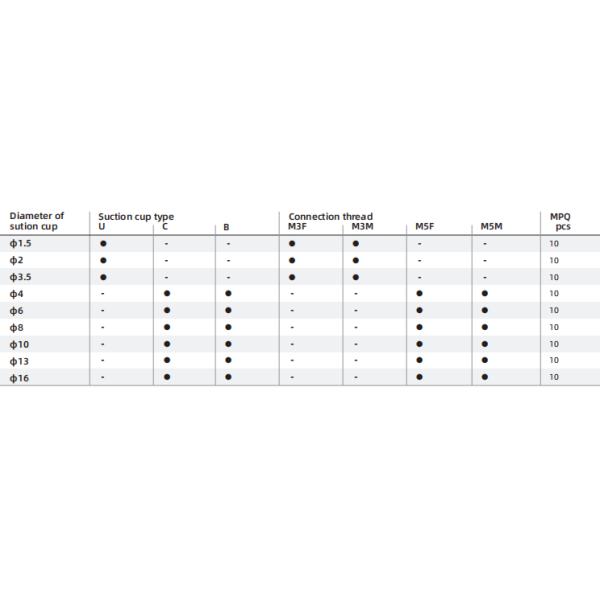

Selection
◇ Note: "●" default, in stock, "-" unavailable
Dimensions(mm) - U type
Dimensions(mm) - C type
Dimensions(mm) - B type
Mounting parts
Item
Model
Female thread
Male thread
Applicable suction cup
Fitting for suction cup
PJS-M3F-ST0.5
PJS-M3M-ST0.5
SP3U1.5, 2, 3.5

PJS-M5F-ST1.5PJS-M5M-ST1.5SP3C4, 6, 8；SP3B4, 6, 8

PJS-M5F-ST2PJS-M5M-ST2-ASP3C10, 13, 16；SP3B10, 13, 16
Structure

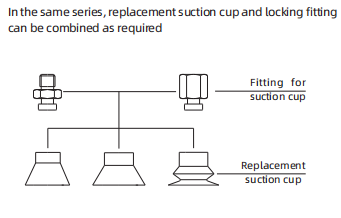

◇ Consisting of replacement suction cup(3) and locking fitting(1 or 2)
◇ Plug-in fitting for suction cup
◇ Vertical vacuum port(1), male thread for mounting
◇ Lateral vacuum port(2), female thread for mounting

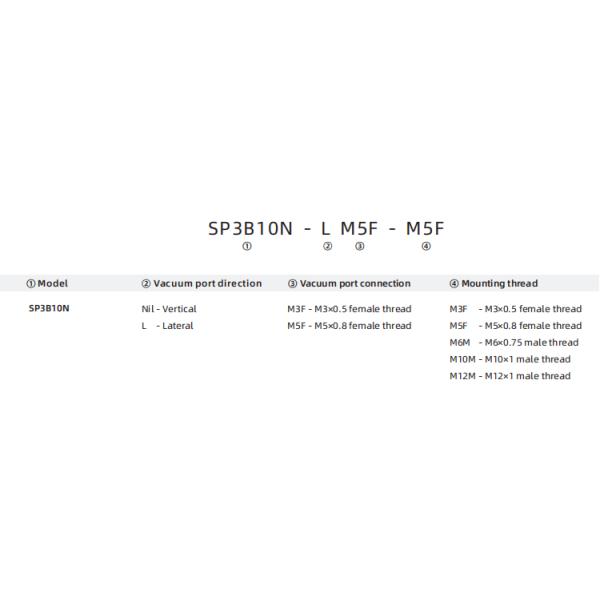

How to order
◇ Please refer to page 72 for suction cup selection
Selection
ModelNil-Vertical
 Vacuum port connection		Mounting threadL-Lateral
 Vacuum port connection		Mounting thread
SP3U1.5-3.5M3FM6MM3FM3F
SP3C4-8M5FM10MM5FM5F
SP3C10-16M5FM12MM5FM5F
SP3B4-8M5FM10MM5FM5F
SP3B10-16M5FM12MM5FM5F

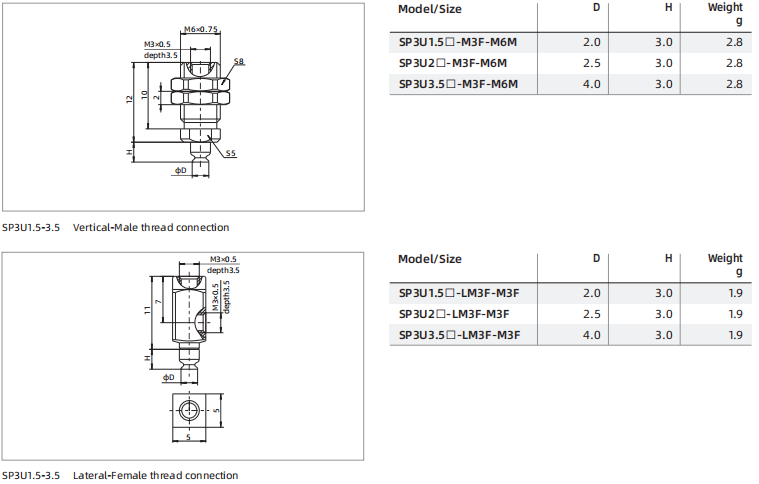

Dimensions(mm) - U type

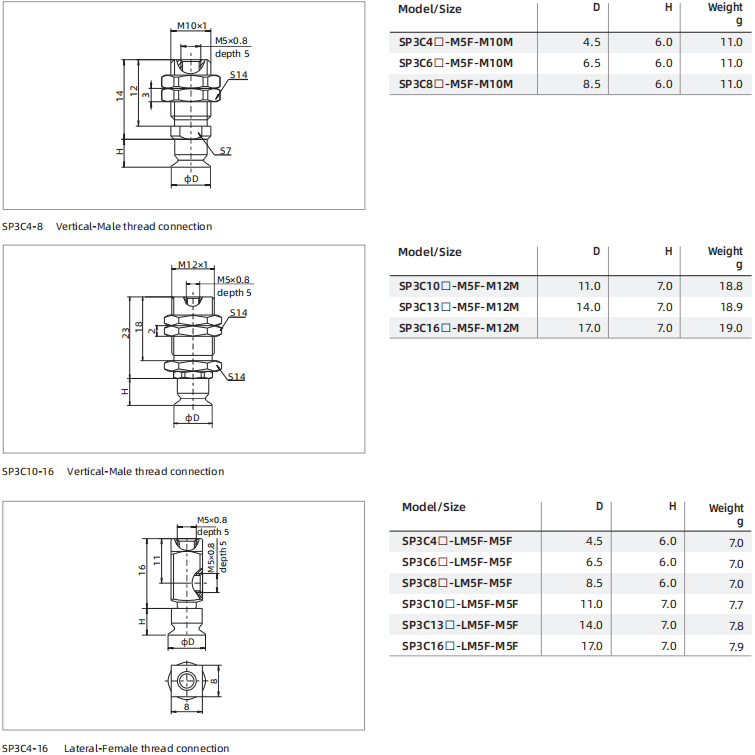

Dimensions(mm) - C type
Dimensions(mm) -B type
Mounting parts
ItemModel Vertical direcionLateral directionApplicable suction cup
Locking fittingPJF-M3F-M6M-ST0.5PJF-LM3F-M3F-ST0.5SP3U1.5,2,3.5

PJF-M5F-M10M-ST1.5PJF-LM5F-M5F-ST1.5SP3C4,6,8;SP3B4,6,8

PJF-M5F-M12M-ST2PJF-LM5F-M5F-ST2SP3C10,13,16;SP3B10,13,16
Structure
◇ Consisting of replacement suction cup(3) and level compensator(1 or 2)
◇ Plug-in fitting for suction cup
◇ Vertical vacuum port(1), male thread for mounting
◇ Lateral vacuum port(2), male thread for mounting
How to order
◇ Please refer to page 72 for suction cup selection

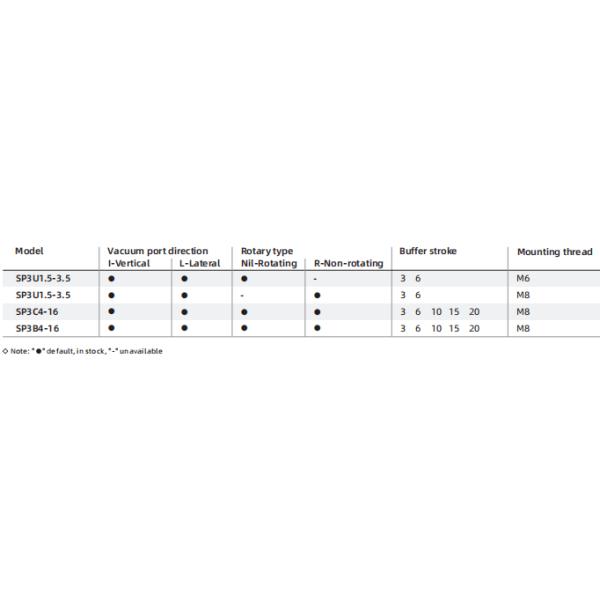

Selection

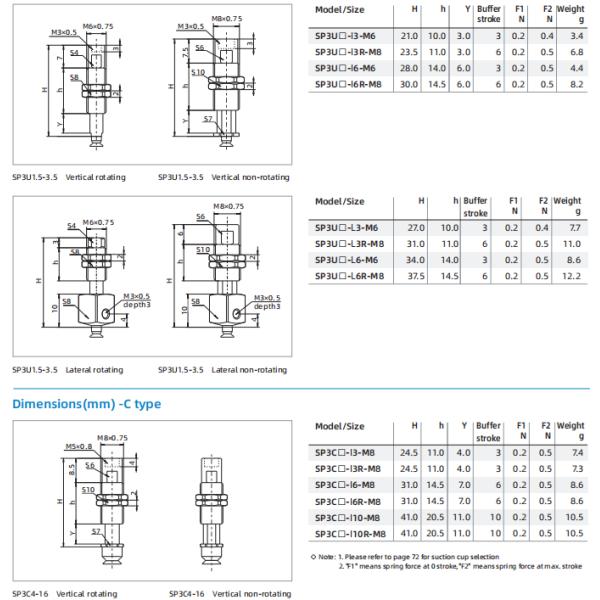

Dimensions(mm) -C type
Dimensions(mm) -U type
Dimensions(mm) -B type
Dimensions(mm) -B type
Model
 Vertical rotating		Vertical non-rotatingModel
 Lateral rotating		Lateral non-rotatingBuffer
 stroke		Applicable suction cup
PSP3-I3ST0.5-M6PSP3-I3RST0.5-MBPSP3-L3ST0.5-M6PSP3-L3RST0.5-M83SP3U1.5,2,3.5
PSP3-I6ST0.5-M6PSP3-I6RST0.5-MBPSP3-L6ST0.5-M6PSP3-L6RST0.5-M86
PSP3-135T1.5-M8PSP3-13RST1.5-MBPSP3-L35T1.5-M8PSP3-L3RST1.5-M83SP3C4,6,8;SP3B4,6,8
PSP3-I6ST1.5-M8PSP3-I6RST1.5-MBPSP3-L65T1.5-M8PSP3-L6RST1.5-M86
PSP3-I10ST1.5-M8PSP3-I10RST1.5-M8PSP3-L10ST1.5-M8PSP3-L10RST1.5-M810
PSP3-I15ST1.5-M8PSP3-I15RST1.5-M8PSP3-L15ST1.5-M8PSP3-L15RST1.5-M815
P5P3-I20ST1.5-M8PSP3-I20RST1.5-M8PSP3-L20ST1.5-M8PSP3-L20RST1.5-M820
PSP3-I3ST2-M8PSP3-I3RST2-M8PSP3-L3ST2-M8PSP3-L3RST2-M83SP3C10,13,16;SP3B10,13,16
PSP3-I6ST2-M8PSP3-I6RST2-M8PSP3-L6ST2-M8PSP3-L6RST2-M86
PSP3-I10ST2-M8PSP3-I10RST2-M8PSP3-L10ST2-M8PSP3-L10RST2-M810
PSP3-I15ST2-M8PSP3-I15RST2-M8PSP3-L15ST2-M8PSP3-L15RST2-M815
PSP3-I20ST2-M8PSP3-I20RST2-M8PSP3-L20ST2-M8PSP3-L20RST2-M820

Q: Could you offer the free samples ?

A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055

Q: What ' s your business scope ?

A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .

Q: What types of products you can make ?

A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .

Q: Can the product be made with our logo and brand ?

A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .

Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?

A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,SMS,RSMT,Marsh ,Endress+Hauser etc.

Q: Is there a warranty available?

A: Yes, normally products is one year quality guarantee.

Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?

A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect

G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America

Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?

A: 1MPa=10bar≈145psi≈10kg

Q:What usually causes the burnout of solenoid valve coils?

A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.

Q: What should be noted for pneumatic components in high temperature or extremely cold environments?

Focus PointHigh Temperature Environment CountermeasuresExtreme Cold Environment Countermeasures
SealsFluororubber, PTFELow-temperature nitrile, silicone rubber, polyurethane
LubricationHigh-temperature synthetic grease (low volatility)Low-temperature grease (low pour point, low viscosity)
Air Supply TreatmentStrengthen cooling, efficient water removalUltra-low dew point drying (refrigeration + adsorption type), heat tracing
Metal ComponentsReserve expansion clearanceSelect materials with low-temperature toughness, prevent leakage due to cold shrinkage
Control ComponentsHigh heat-resistant grade coils, heat dissipation, low power consumptionInstall insulation boxes, local heating, prevent cold condensation
InstallationKeep away from heat sources, add heat insulation platesAvoid exposure to wind and snow, wrap with thermal insulation materials
