| Categories | PVC Pipe Extrusion Line |
|---|---|
| Brand Name: | LB |
| Model Number: | LB-110 |
| Certification: | CE ISO9001 |
| Place of Origin: | ZHANGJIAGANG, JIANGSU |
| MOQ: | 1 SET |
| Price: | USD EUR |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15 SETS PER MONTH |
| Delivery Time: | 30 WORKING DAYS |
| Packaging Details: | NORMAL PACKAGE |
| PIPE DIAMETER: | 75-250 |
| EXTRUDER'S POWER: | 55KW |
| COLOUR: | CUSTOMIZED |
| PIPE UMBERS: | SINGLE PIPE |
| RAW MATERIAL: | PVC POWDER & ADDITIVES |
| APPLICATION: | WATER SUPPLY PIPE |
| Voltage: | 380V 50Hz or customized |
| Automatic grade: | Full-automatically |
| Screw design: | Twin screw and barrel |
| After-sales service provided: | Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Video technical support |
| Warranty: | 18 months |
| Inverter: | ABB |
| Color: | Customizable |
| Raw material: | PVC Powder |
| Motor: | Brand |
| Contactor: | OR SCHNIDER |
| Screw and barrel: | Conical twin screw extruder |
| Screw diameter: | 65/132 |
| Pipe Application: | Water Supply |
| Packages: | Film and boxes |
| Payment: | T/T, L/C, Western Union |
| Delivery time: | 60 days |
| Company Info. |
| Zhangjiagang Langbo Machinery Co. Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
PVC Pipe Water Pipe Production Line Extrusion Machine
Short desciption
The PVC Pipe Water Pipe Production Line Extrusion Machine is a fully automated system designed for manufacturing high-quality PVC pipes used in water supply, irrigation, drainage, and industrial applications. This production line ensures high precision, energy efficiency, and durability, producing pipes in various diameters (from small to large) with smooth surfaces and consistent wall thickness.
Tech Features & Advantages
Plumbing and Water Supply Systems (potable water distribution,
drainage).
Sewer and Wastewater Systems (municipal sewer networks, underground
drainage).
Electrical Conduits (protecting cables and wiring in construction).
Agricultural Irrigation (water transport for crop fields and
greenhouses).
Industrial Piping (chemical transport, ventilation, and compressed
air systems).
Producting process
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker
Specifications:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Product detail
Conical Twin Screw Extruder
High-speed extrusion, High efficiency, Steady running, with high
capacity and low power consumption
PLC Control System
Intelligent & centralized control
Multiple-language
Intelligent alarm system
Standard Electrical Part
, ABB, RKC, Omron, etc.

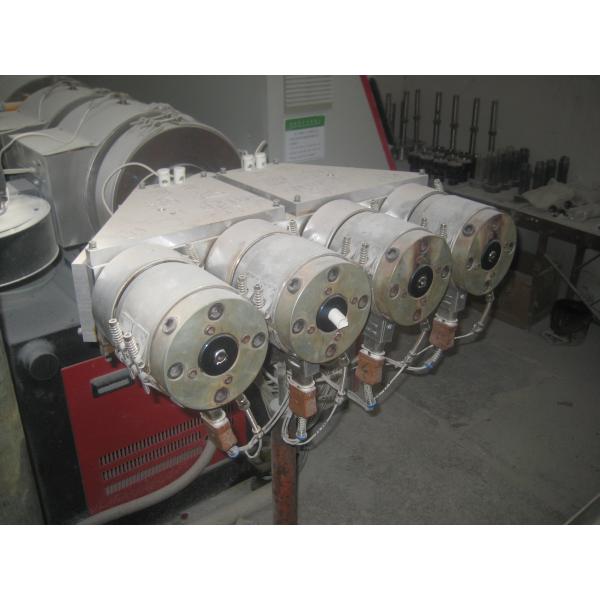

Extrusion Die
Spacious flow channel design to guarantee high extrusion capacity
and good melt.
Optimized temperature control and flow channel design, precise melt
temperature control.
Excellent material and reasonable design to make sure its long
service life.
Rich experience on extrusion die design and manufacturing.
Vacuum tank
Thick stainless steel as raw material for vacuum tank, it will make
sure long service life.
Advanced pipe line layout design and adjustable spray angle for
better cooling effect, and fast cooling.

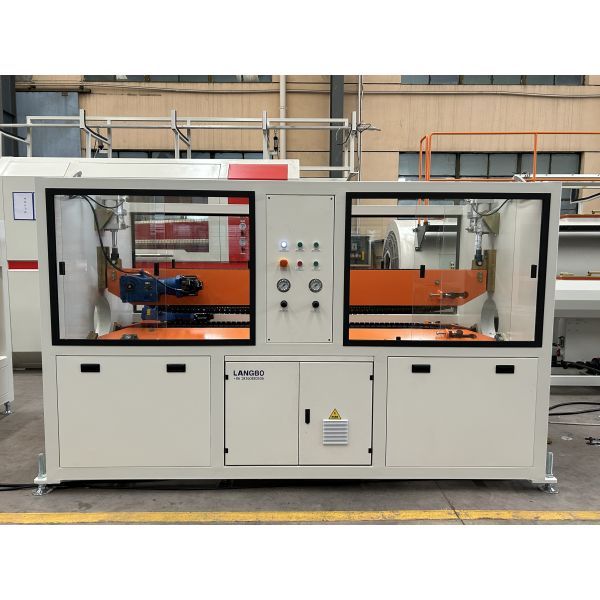

Haul-off machine
For the different pipe size and different speed requirement, we
have developed kinds of haul-off unit accordingly.
The haul-off unit equipped with single motor drive for every claw
with separate motor drive, there is the belt type haul-off unit,
stable hauling.
Cutter
Reasonable cutting design, endurable, dust-collecting efficiently
and stable for cutting.
Belling machine(as optional)
Online or offline belling machine are optional.
R type, U type and square type as belling machine at customer's
requests.
High-efficiency Heating And Cooling
|
