NF P92-505 EU95/28EC Melting Material Dripping Testing Machine

NF P92-505 EU95/28EC Melting Material Dripping Testing Machine

NF P92-505 EU95/28EC Melting Material Dripping Testing Machine
NF P92-505 EU95/28EC Melting Material Dripping Testing Machine
Categories Flammability Test Equipment
Brand Name: GOLD
Model Number: GD-ASTM D6413
Certification: ISO
Place of Origin: China
MOQ: 1 set
Price: USD3700-4000/set
Payment Terms: L/C,T/T,,MoneyGram
Supply Ability: 5sets per month
Delivery Time: 30 days
Packaging Details: Exported standard packaging
Product: Melting Material Dripping Testing Machine
Standard: NF P92-505,EU 95/28/EC,ECE R118 Annex 7
The Radiation Heat of The RadiatorInlet Gas Pressure: 30kw/M2, up to 100kw/M2
The Heat RadiationTime: Reacht to 3w / cm³
Specimen Holder Inner DiameterSystem: 118mm
Maximum HeightBurning Torch: 680mm
Radiation Shield DiameterApplication: 100mm±5mm
Power: 220V,50Hz
Contact Now
Company Info.
Chongqing gold mechnical and electrical equipment Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

NF P92-505 EU95/28EC Melting Material Dripping Testing Machine

NF P92-505 EU95/28EC Melting Material Dripping Testing Machine
This thermal radiation molten drip tester meets the technical specifications and requirements specified in international standards NF P92-505, EU 95/28/EC, and ECE R118 Annex 7. According to NF P 92-505, this test is an additional test for Class M building materials. It is suitable for testing the molten dripping and combustion performance of hot-melt materials under the action of a primary heat source. It can test flexible and thin materials, such as cellulose in thermal insulation wadding.
Compliance Standards
NF P92-505
EU 95/28/EC
ECE R118 Annex 7
Technical Specifications
NameThermal Radiation Dripping Test Apparatus
Power supply220V, 50Hz
Base size425*300mm
Maximum height of the instrument680mm
Weight13kg

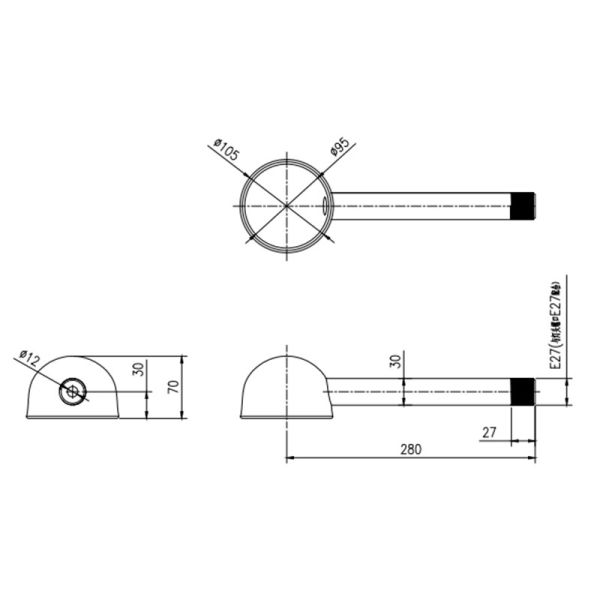

NF P92-505 Melting Material Dripping Testing Machine diagram
Key Features
  • All tooling is made of stainless steel, which is aesthetically pleasing and corrosion-resistant
  • The radiation support is rotatable, with a rotation angle greater than 90 degrees, facilitating sample installation
  • The sample installation height is adjustable
  • Electric radiator
  • The radiant heat output is linearly adjustable; the radiant heat is automatically adjusted via power control
  • The radiation hood is made of quartz glass with an opening diameter of 100mm ± 5mm
  • The thermal radiation at a distance of 30mm from the lower surface of the radiation hood is 3W/cm³
  • The sample holder is made of a stainless steel ring with an inner diameter of 118mm
  • The receiving tray has an inner diameter of 118mm and a depth of 12mm, and is stuffed with cotton
  • Automatic timing reminder for sample ignition

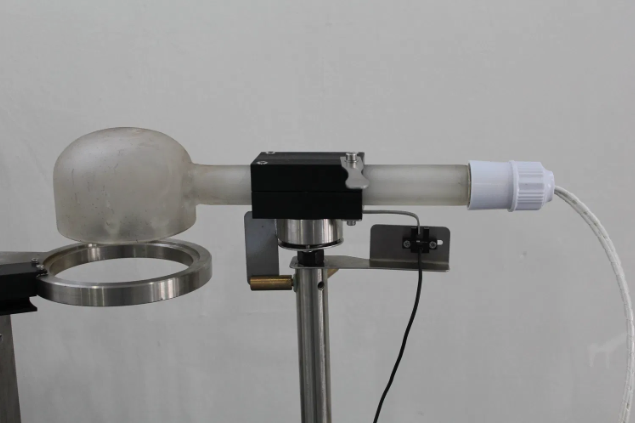

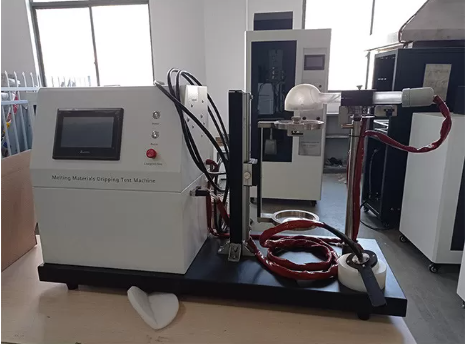

NF P92-505 Melting Material Dripping Testing Machine components NF P92-505 Melting Material Dripping Testing Machine operation
